Reference Value

NOTE: The Signal Tech II Tool [- (J-50190)] can be used to perform the following functions: Refer to the Signal Tech II User Guide for additional information.

• Activate and display TPMS transmitter IDs
• Display tire pressure reported by the TPMS transmitter
• Read TPMS DTCs
• Register TPMS transmitter IDs
• Test remote keyless entry keyfob relative signal strength

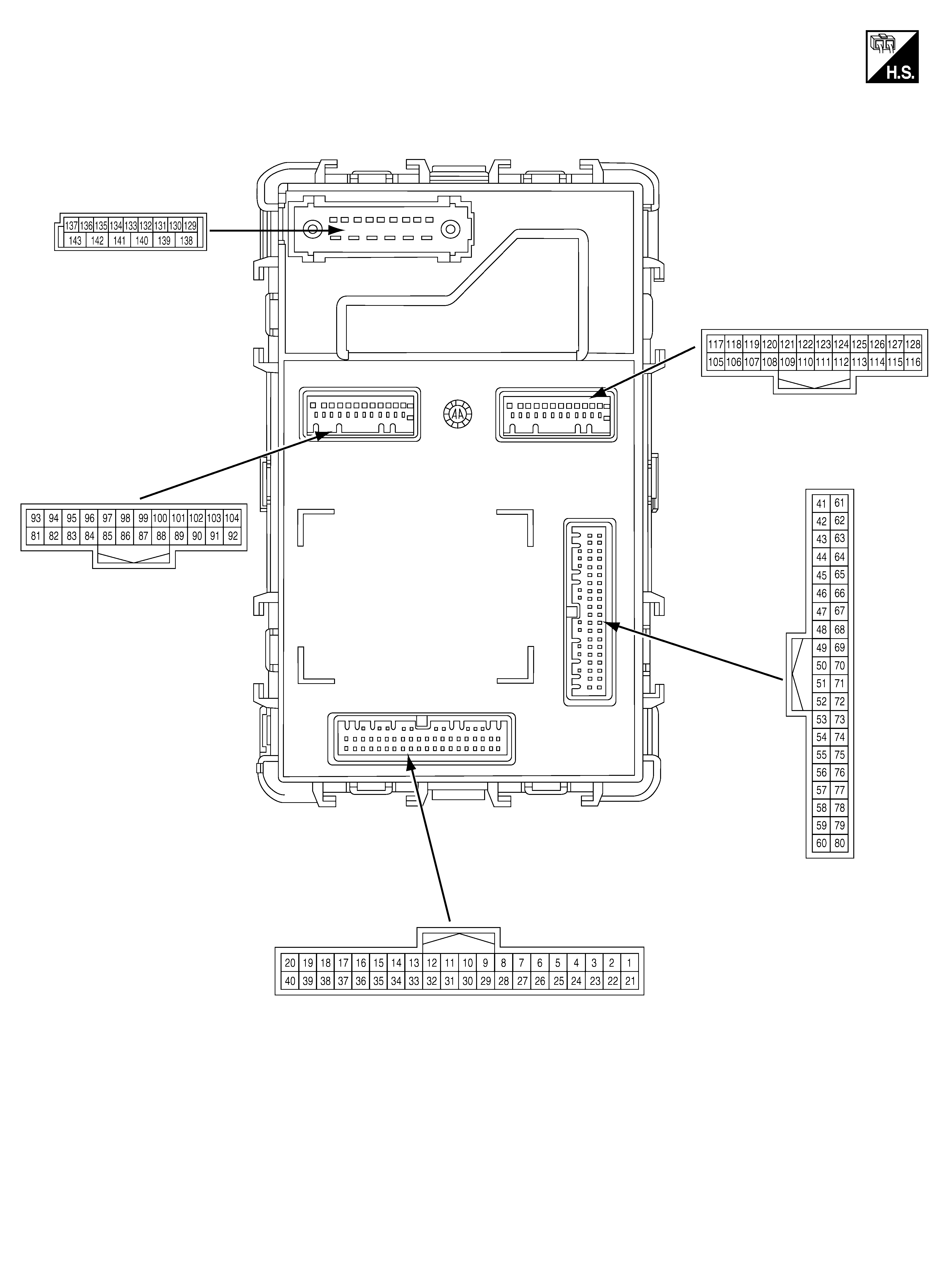

TERMINAL LAYOUT

Courtesy of NISSAN

PHYSICAL VALUES

Terminal No. (Wire color)		Description		Condition		Value (Approx.)
		Signal name	Input/ Output
(+)	(-)
1 (V)	Ground	Push-button ignition switch signal	Input	Push-button ignition switch	Pressed	0 V
					Not pressed	Battery voltage
3 (R)	Ground	Battery power supply	Input	-		Battery voltage
4 (LG)	Ground	Optical sensor signal	Input	Ignition switch ON	When outside of the vehicle is bright	3.1 V or more
					When outside of the vehicle is dark	0.6 V or less
10 (SB)	Ground	Combination switch OUTPUT 5	Output	Combination switch	OFF	0 V

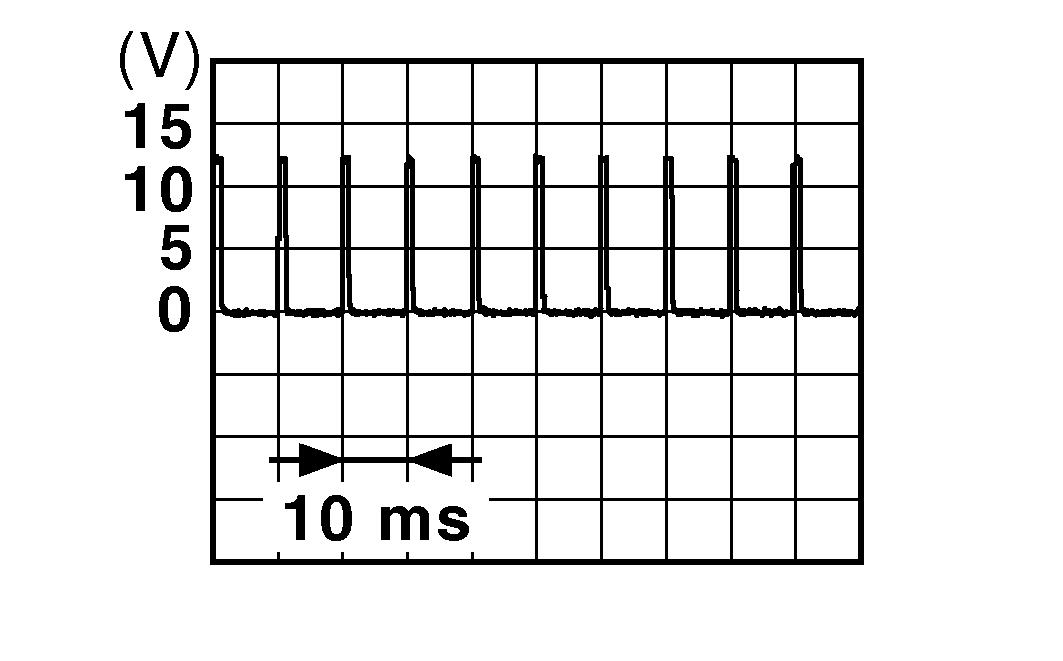

					TAIL LAMP	Courtesy of NISSAN 1.0 V
					TURN RH
					HI BEAM
					HEADLAMP 1
11 (L)	Ground	Combination switch OUTPUT 4	Output	Combination switch	OFF	0 V
					TURN LH	Courtesy of NISSAN 1.0 V
					PASSING
					HEADLAMP 2
					FR FOG
12 (Y)	Ground	Combination switch OUTPUT 3	Output	Combination switch	OFF	0 V
					FR WIPER LOW	Courtesy of NISSAN 1.0 V
					FR WIPER INT
					AUTO LIGHT
13 (BR)	Ground	Combination switch OUTPUT 2	Output	Combination switch	OFF	0 V
					FR WASHER	Courtesy of NISSAN 1.0 V
					INT VOLUME 3
14 (GR)	Ground	Combination switch OUTPUT 1	Output	Combination switch	OFF	0 V
					FR WIPER HI	Courtesy of NISSAN 1.0 V
					INT VOLUME 1
					INT VOLUME 2
17 (P)	Ground	Optical sensor ground	Output	Ignition switch ON		0 V
18 (V)	Ground	Security indicator control	Output	Security indicator	ON	0 V

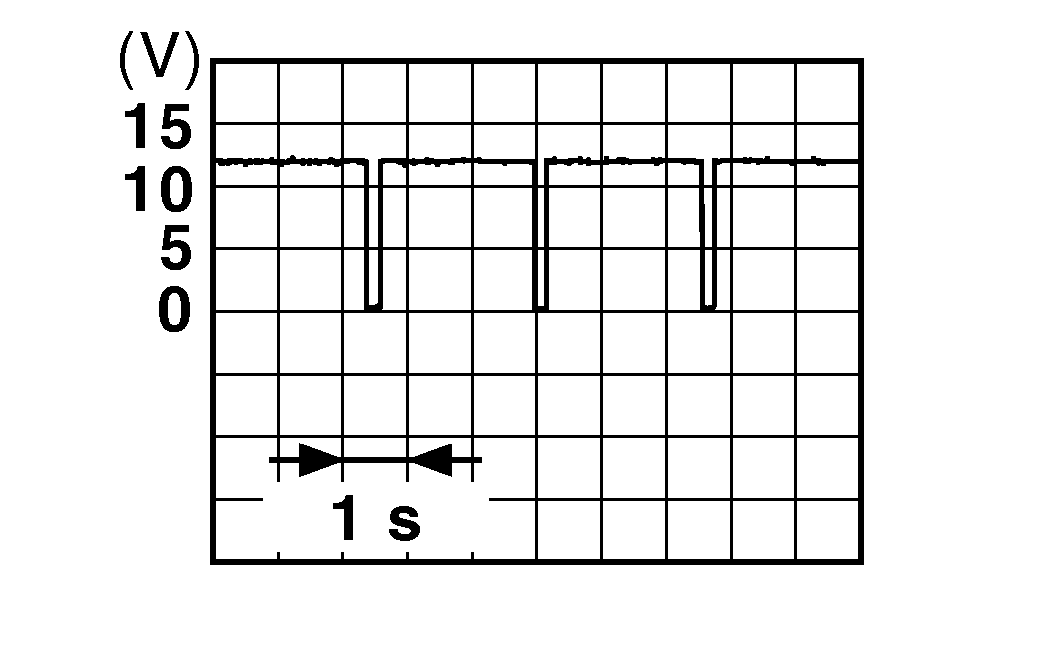

					Blinking	Courtesy of NISSAN 11.3 V
					OFF	Battery voltage
19 (L)	Ground	Door lock/unlock switch LOCK signal	Input	Main power window and door/unlock switch or power window and door lock/unlock switch RH	On (lock)	0 V
					OFF	Battery voltage
20 (R)	Ground	Detent switch signal	Input	A/T shift selector	P position	0 V
					Any position other than P	Battery voltage
23 (Y)	Ground	A/C signal	Input	Ignition switch ON	A/C switch OFF	5 V
					A/C switch ON	0 V
25 (BG)	Ground	Battery power supply (brake switch)	Input	-		Battery voltage
26 (LA/L)	Ground	Battery power supply	Input	Ignition switch OFF		Battery voltage
27 (G)	Ground	Stop lamp switch signal	Input	Stop lamp switch	OFF (brake pedal is not depressed)	0 V
					ON (brake pedal is depressed)	Battery voltage
29 (W)	Ground	Blower motor signal	Input	Ignition switch ON	Front blower motor OFF	Battery voltage
					Front blower motor ON	0 V
30 (P)	Ground	Front door lock assembly LH (door unlock sensor) signal	Input	Front door lock assembly LH (door unlock sensor)	Neutral/Lock	Momentary 1.5 V
					Unlock	0 V
324 (LA/P)	Ground	Heated mirror control signal	Input	Ignition switch ON	Heated mirror ON	Battery voltage
					Heated mirror OFF	0 V
34 (G)	Ground	Door lock/unlock switch UNLOCK signal	Input	Main power window and door/unlock switch or power window and door lock/unlock switch RH	OFF	Battery voltage
					ON (unlock)	0 V
36 (LA/G)	Ground	Hazard switch signal	Input	Hazard switch	Pressed	0 V
					Not pressed	Courtesy of NISSAN 1.1 V
39 (R)	Ground	Starter/starter control relay control	Input	A/T shift selector	P or N position	Battery voltage
					Except P and N positions	0 V
42 (V)	Ground	Cargo lamp relay control	Output	Cargo lamp switch	ON	0 V
					OFF	Battery voltage
48 (LA/R)	Ground	Push-button ignition switch illumination power supply	Output	Push-button ignition switch illumination	ON	5.5 V
					OFF	0 V
521 (LA/L)	Ground	Dongle unit communication	Input/Output	Ignition switch OFF		5 V
59 (P)	Ground	CAN-Low	Input/Output	-		-
60 (L)	Ground	CAN-High	Input/Output	-		-
62 (SB)	Ground	Starter relay control	Output	Ignition switch ON	When A/T shift selector is in P or N position and the brake is depressed	0 V
					When A/T shift selector is in P or N position and the brake is not depressed	Battery voltage
64 (W)	Ground	Intelligent Key warning buzzer control	Output	Intelligent Key warning buzzer	Sounding	0 V
					Not sounding	Battery voltage
66 (LA/GR) (GR) 5	Ground	Blower motor relay control	Output	Ignition switch	OFF or ACC	0 V
					ON	Battery voltage
67 (LA/BR)	Ground	Ignition relay-1 control	Output	Ignition switch	OFF or ACC	0 V
					ON	Battery voltage
69 (LA/Y)	Ground	Detent switch power supply	Output	-		Battery voltage
70 (P)	Ground	Ignition relay control	Output	Ignition switch	OFF or ACC	Battery voltage
					ON	0 V
712 (LA/BG)	Ground	Front door request switch LH signal	Input	Front door request switch LH	ON (pressed)	0 V

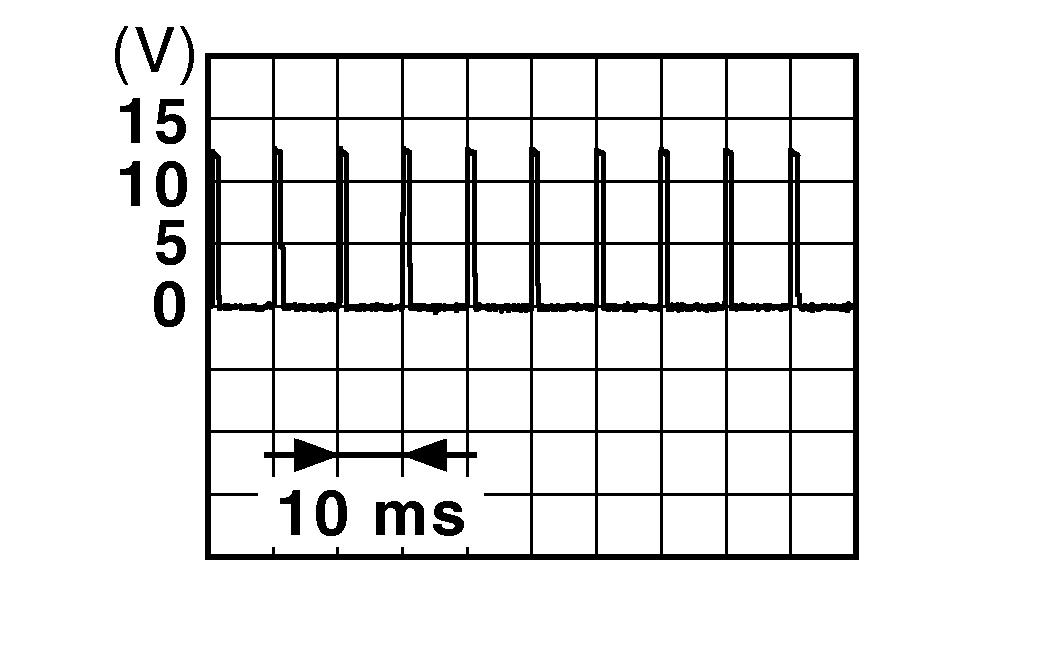

					OFF (not pressed)	Courtesy of NISSAN 1.0 V
722 (LA/G)	Ground	Front door request switch RH signal	Input	Front door request switch RH	ON (pressed)	0 V
					OFF (not pressed)	Courtesy of NISSAN 1.0 V

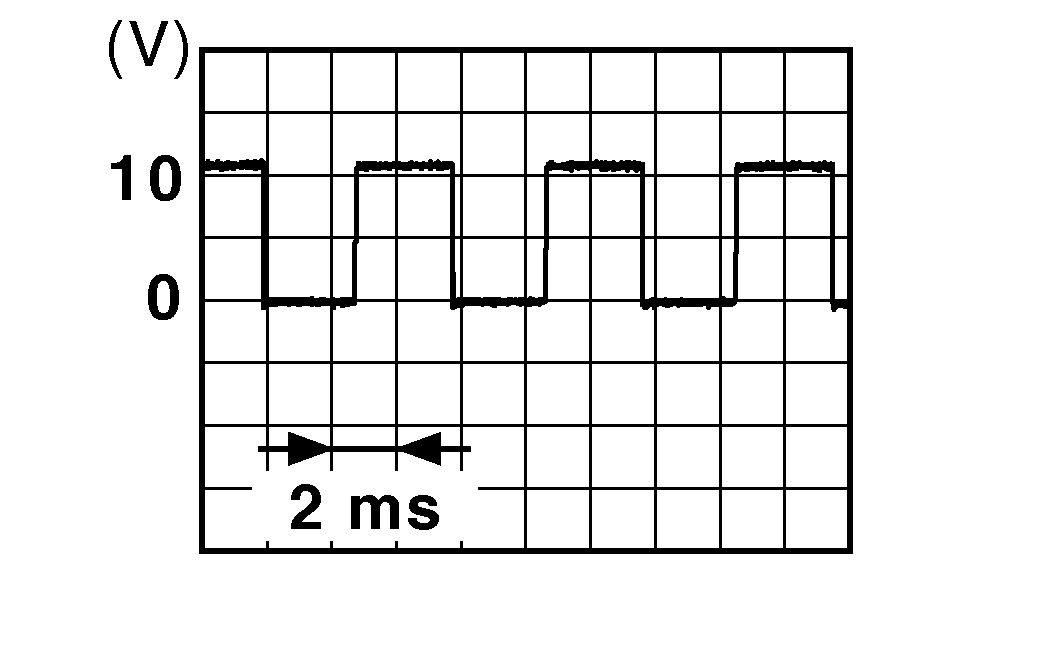

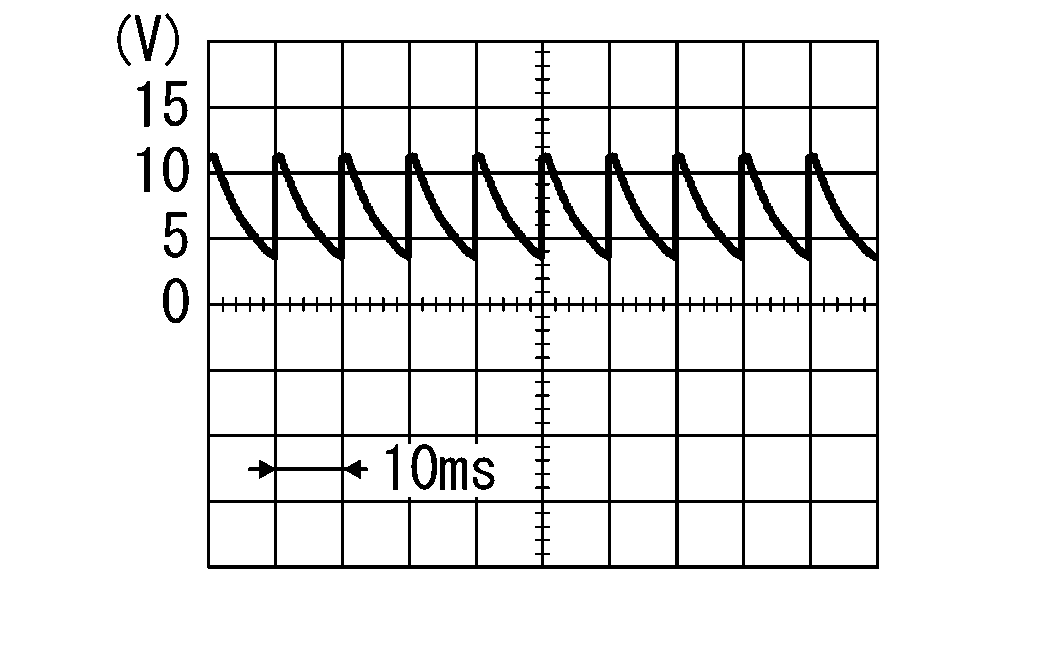

75 (W)	Ground	Combination switch INPUT 5	Input	Combination switch	OFF	Courtesy of NISSAN 7.0 - 8.0 V

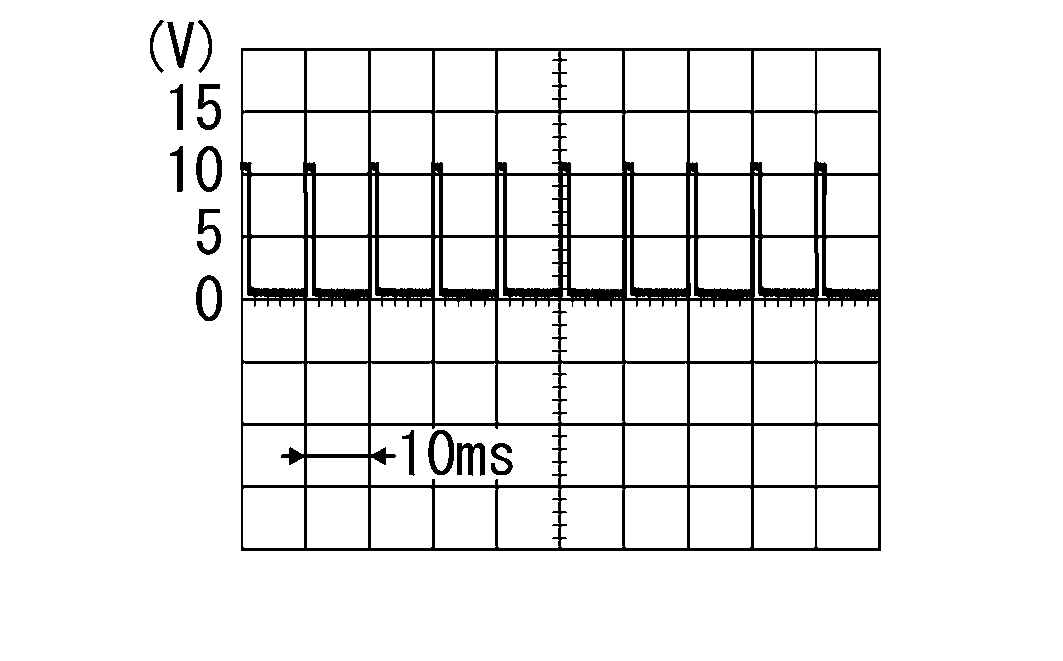

					INT VOLUME 2	Courtesy of NISSAN 1.2 V
					FR FOG
76 (LG)	Ground	Combination switch INPUT 4	Input	Combination switch	OFF	Courtesy of NISSAN 7.0 - 8.0 V
					TAIL LAMP	Courtesy of NISSAN 1.2 V
					AUTO LAMP
					INT VOLUME 3
77 (V)	Ground	Combination switch INPUT 3	Input	Combination switch	OFF	Courtesy of NISSAN 7.0 - 8.0 V
					HEADLAMP 2	Courtesy of NISSAN 1.2 V
					HI BEAM
					INT VOLUME 1
78 (BG)	Ground	Combination switch INPUT 2	Input	Combination switch	OFF	Courtesy of NISSAN 7.0 - 8.0 V
					HEADLAMP 1	Courtesy of NISSAN 1.2 V
					PASSING
					FR WIPER HI
					FR WIPER INT
79 (R)	Ground	Combination switch INPUT 1	Input	Combination switch	OFF	Courtesy of NISSAN 7.0 - 8.0 V
					FR WASHER	Courtesy of NISSAN 1.2 V
					FR WIPER LOW
					TURN LH
					TURN RH

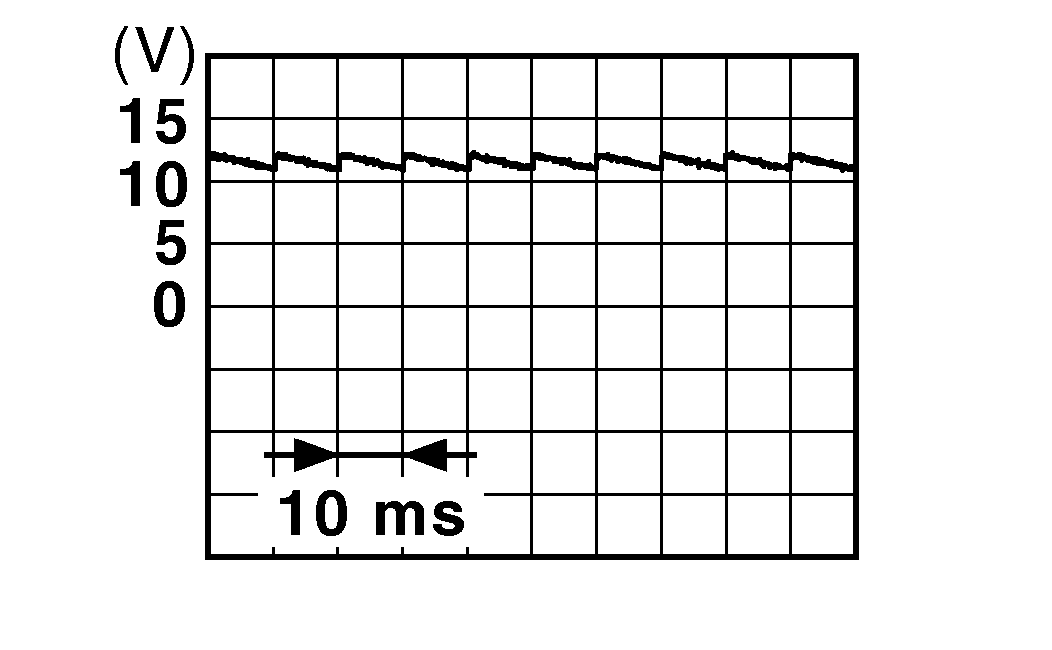

82 (W)	Ground	Rear door switch LH signal	Input	Rear door switch LH	OFF (rear door LH CLOSE)	Courtesy of NISSAN 11.8 V
					ON (rear door LH OPEN)	0 V
863 (LG)	Ground	Trailer turn relay LH control	Output	Ignition switch ON	Turn signal switch OFF	Battery voltage

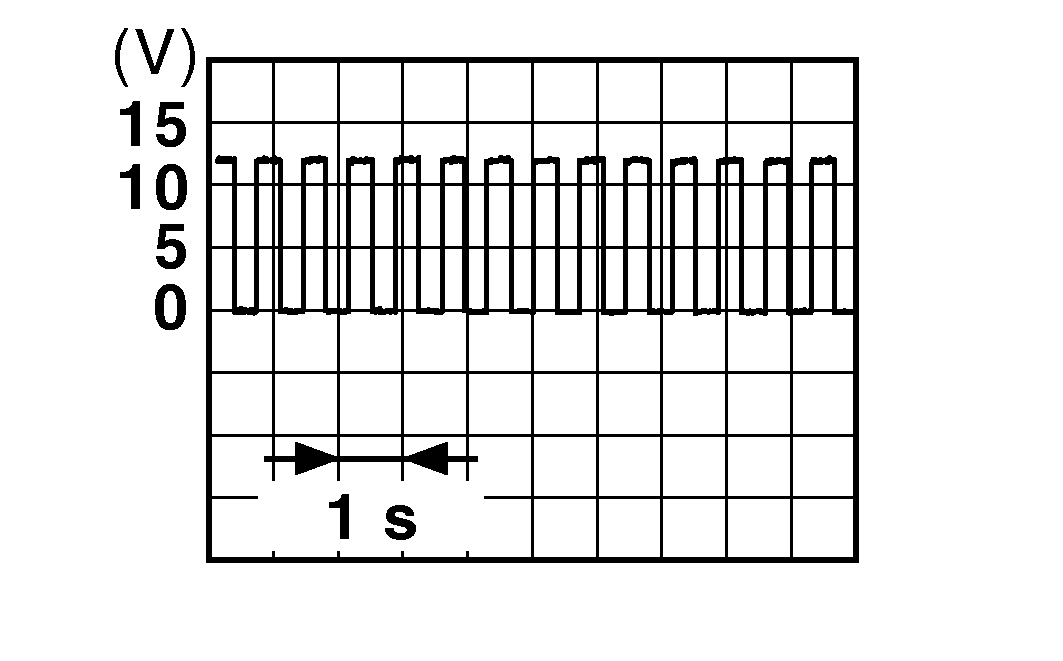

					Turn signal switch LH	Courtesy of NISSAN 6.0-7.0 V
873 (BG)	Ground	Trailer turn relay RH control	Output	Ignition switch ON	Turn signal switch OFF	Battery voltage
					Turn signal switch RH	Courtesy of NISSAN 6.0-7.0 V
92 (L)	Ground	Rear turn signal RH power supply	Output	Ignition switch ON	Turn signal switch OFF	0 V

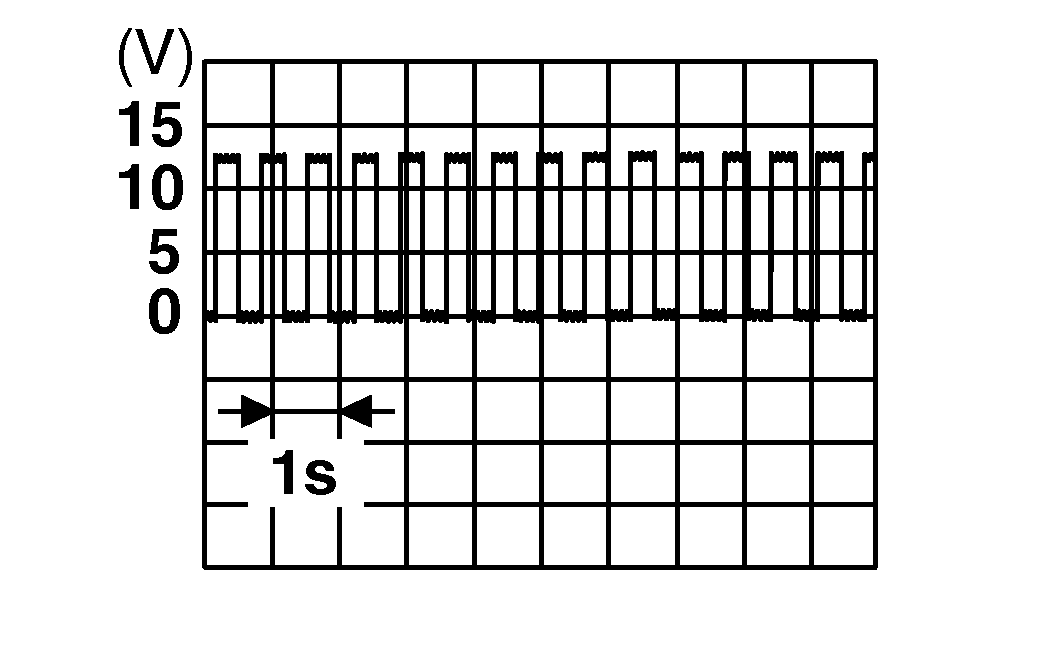

					Turn signal switch RH	Courtesy of NISSAN 6.5 V
93 (R)	Ground	Rear door switch RH signal	Input	Rear door switch RH	OFF (rear door RH CLOSE)	Courtesy of NISSAN 11.8 V
					ON (rear door RH OPEN)	0 V
94 (GR)	Ground	Front door switch RH signal	Input	Front door lock assembly RH (door switch)	OFF (front door RH CLOSE)	Courtesy of NISSAN 11.8 V
					ON (front door RH OPEN)	0 V
96 (Y)	Ground	Front door switch LH signal	Input	Front door lock assembly LH (door switch)	OFF (front door LH CLOSE)	Courtesy of NISSAN 11.8 V
					ON (front door LH OPEN)	0 V
97 (LA/SB)	Ground	Cargo lamp switch signal	Input	Cargo lamp switch	OFF	Courtesy of NISSAN 11.8 V
					ON	0 V
103 (G)	Ground	Rear turn signal LH power supply	Output	Ignition switch ON	Turn signal switch OFF	0 V
					Turn signal switch LH	Courtesy of NISSAN 6.5 V
105 (Y)	Ground	Front turn signal RH power supply	Output	Ignition switch ON	Turn signal switch OFF	0 V
					Turn signal switch RH	Courtesy of NISSAN 6.5 V
107 (W)	Ground	Push-button ignition switch illumination control	Output	Ignition switch	OFF	0 V
					NOTE: When the illumination brightening/dimming level is in the neutral position ON	Courtesy of NISSAN
108 (LA/BG) (LA/L) 5	Ground	Shift lock solenoid control	Output	A/T shift selector lever	P position	0 V
					Any position other than P	Battery voltage
113 (LA/L)	Ground	Accessory relay control	Output	Ignition switch	OFF	0 V
					ACC or ON	Battery voltage

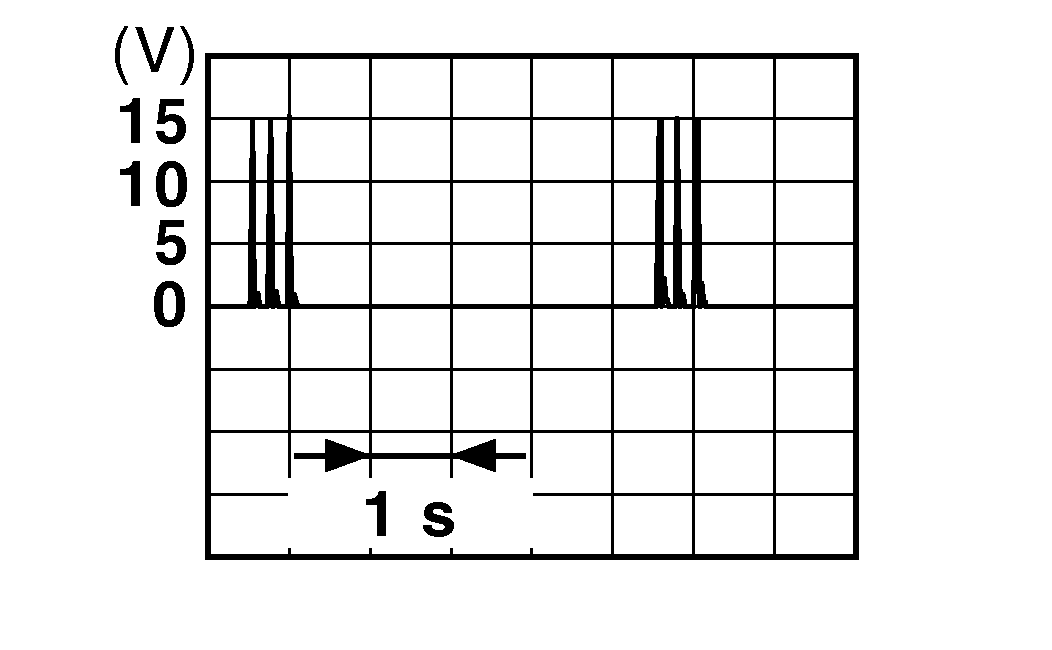

1142 (LA/GR)	Ground	Outside key antenna (RH) A	Output	When the front door request switch RH is operated with ignition switch OFF	When Intelligent Key is in the antenna detection area	Courtesy of NISSAN

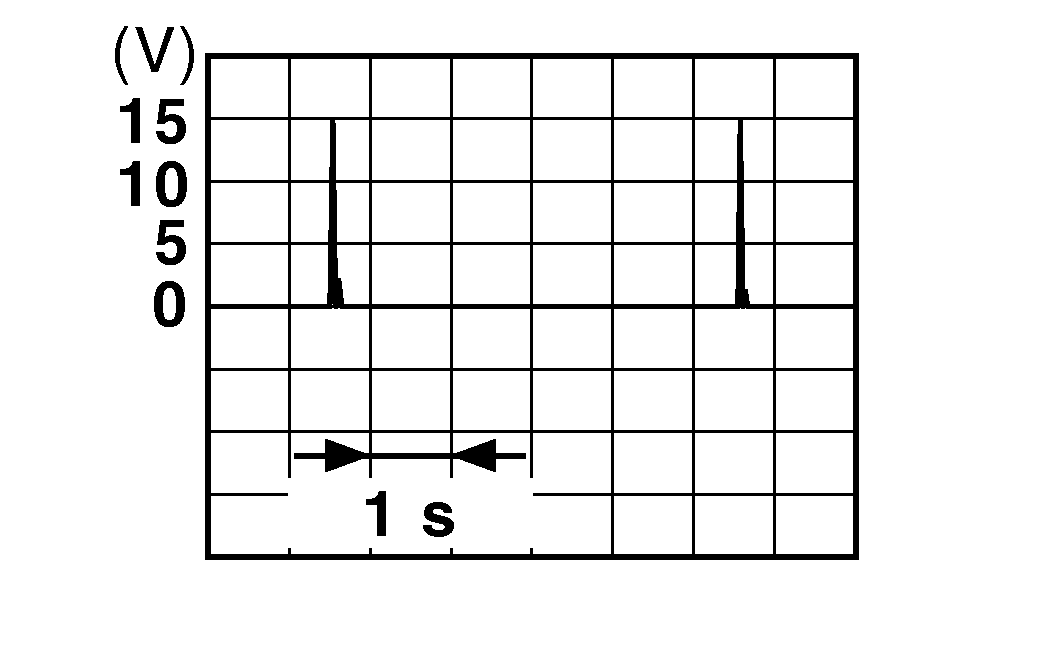

					When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN
1152 (LA/R)	Ground	Outside key antenna (RH) B	Output	When the front door request switch RH is operated with ignition switch OFF	When Intelligent Key is in the antenna detection area	Courtesy of NISSAN
					When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN
116 (LA/BR)	Ground	Inside key antenna (console) A	Output	Ignition switch OFF	When Intelligent Key is in the passenger compartment	Courtesy of NISSAN
					When Intelligent Key is not in the passenger compartment	Courtesy of NISSAN
117 (V)	Ground	Front turn signal LH power supply	Output	Ignition switch ON	Turn signal switch OFF	0 V
					Turn signal switch LH	Courtesy of NISSAN 6.5 V

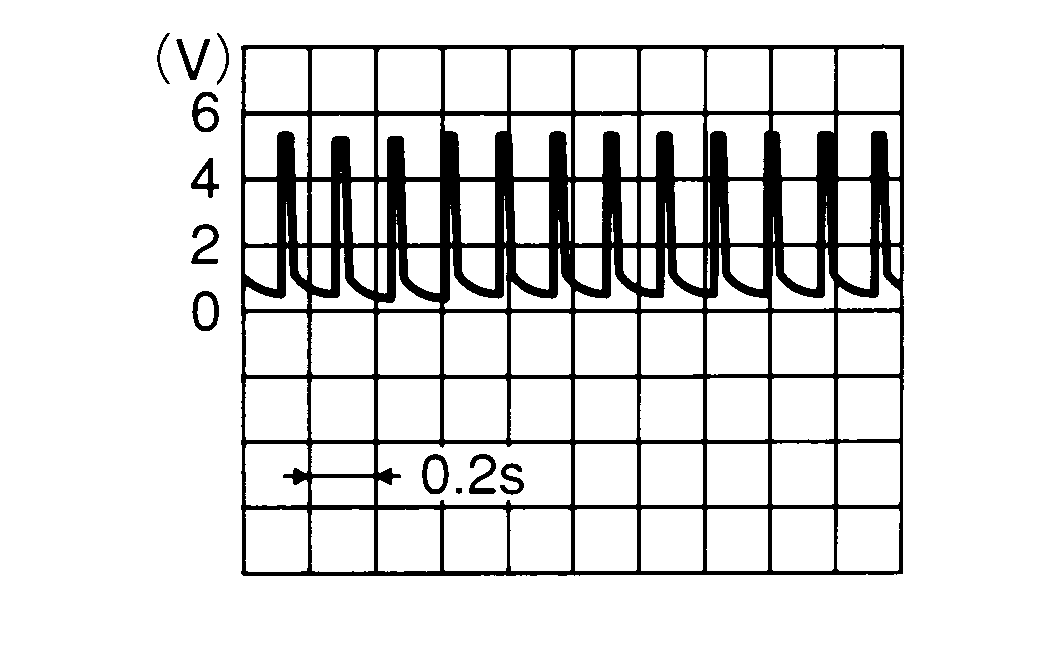

119 (R)	Ground	Remote keyless entry receiver communication	Input/Output	Ignition switch ON	Standby state	Courtesy of NISSAN

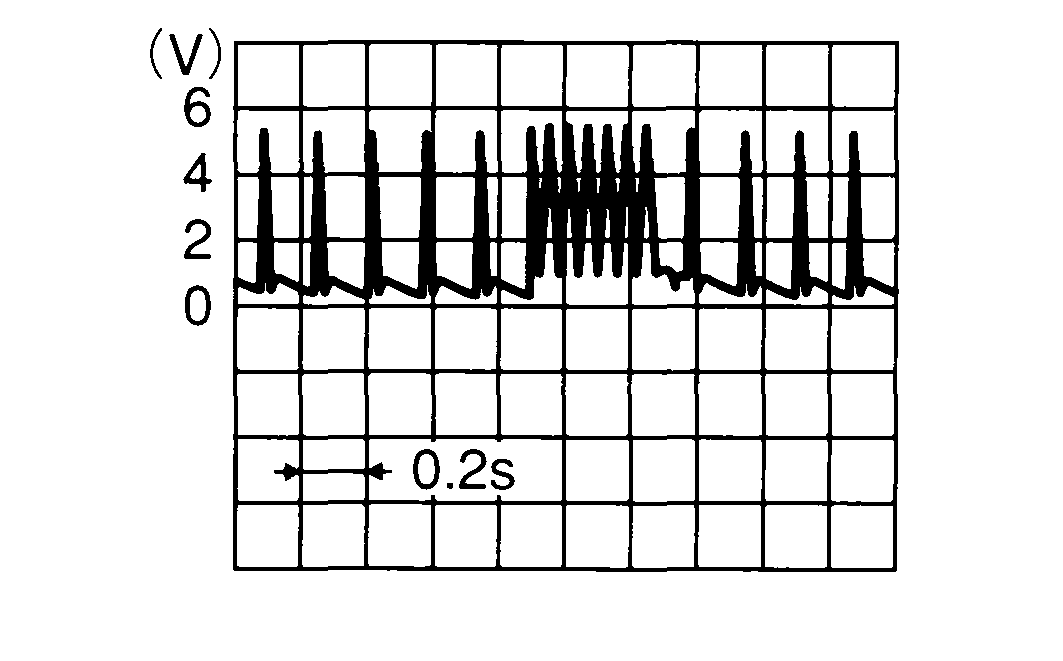

					When receiving the signal from the transmitter	Courtesy of NISSAN
1212 (LA/SB)	Ground	Outside key antenna (LH) A	Output	When the front door request switch LH is operated with ignition switch OFF	When Intelligent Key is in the antenna detection area	Courtesy of NISSAN
					When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN
1222 (LA/P)	Ground	Outside key antenna (LH) A	Output	When the front door request switch LH is operated with ignition switch OFF	When Intelligent Key is in the antenna detection area	Courtesy of NISSAN
					When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN
123 (W)	Ground	Inside key antenna (instrument center) A	Output	Ignition switch OFF	When Intelligent Key is in the antenna detection area	Courtesy of NISSAN
					When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN
124 (G)	Ground	Inside key antenna (instrument center) B	Output	Ignition switch OFF	When Intelligent Key is in the antenna detection area	Courtesy of NISSAN
					When Intelligent Key is not in the antenna detection area	Courtesy of NISSAN
126 (LA/BR)	Ground	NATS antenna amp. B	Input/Output	During waiting	Intelligent Key backside is contacted to push-button ignition switch, ignition switch ON.	Just after pressing push-button ignition switch, pointer of analog volt meter should move.
127 (LA/LG)	Ground	NATS antenna amp. A	Input/Output	During waiting	Intelligent Key backside is contacted to push-button ignition switch, ignition switch ON.	Just after pressing push-button ignition switch pointer of analog volt meter should move.
128 (LA/GR)	Ground	Inside key antenna (console) B	Output	Ignition switch OFF	When Intelligent Key is in the passenger compartment	Courtesy of NISSAN
					When Intelligent Key is not in the passenger compartment	Courtesy of NISSAN
129 (LG)	Ground	Battery saver output/power supply	Output	After passing the interior room lamp battery saver operation time		0 V
				Any other time after passing the interior room lamp battery saver operation time		Battery voltage
130 (P)	Ground	Front door RH UNLOCK control	Output	Front door RH	UNLOCK (actuator is activated)	Battery voltage
					Other than UNLOCK (actuator is not activated)	0 V
131 (W)	Ground	Battery power supply	Input	Ignition switch OFF		Battery voltage
132 (Y)	Ground	Front door RH and rear doors LOCK control	Output	Front door RH and rear door	LOCK (actuator is activated)	Battery voltage
					Other than LOCK (actuator is not activated)	0 V
1337 (BR)	Ground	Rear door UNLOCK control	Output	Rear doors	UNLOCK (actuator is activated)	Battery voltage
					Other than UNLOCK (actuator is not activated)	0 V
134 (B)	Ground	Ground	-	Ignition switch ON		0 V
135 (R)	Ground	Front door LH LOCK control	Output	Front door LH	LOCK (actuator is activated)	Battery voltage
					Other than LOCK (actuator is not activated)	0 V
136 (V)	Ground	Interior room lamp control	Output	Interior room lamp	OFF	Battery voltage
					ON	0 V
137 (GR)	Ground	Front door LH UNLOCK control	Output	Front door LH	UNLOCK (actuator is activated)	Battery voltage
					Other than UNLOCK (actuator is not activated)	0 V
138 (R)	Ground	Battery power supply (rear door)	Input	Ignition switch OFF		Battery voltage
139 (W)	Ground	Battery power supply	Input	Ignition switch OFF		Battery voltage
140 (LG)	Ground	Ignition power supply (power window)	Output	Ignition switch ON		Battery voltage
141 (GR)	Ground	Battery power supply (power supply)	Output	Ignition switch OFF		Battery voltage
142 (Y)	Ground	Battery power supply (front door)	Input	Ignition switch OFF		Battery voltage
143 (B)	Ground	Ground	-	Ignition switch ON		0 V

1: For Canada
