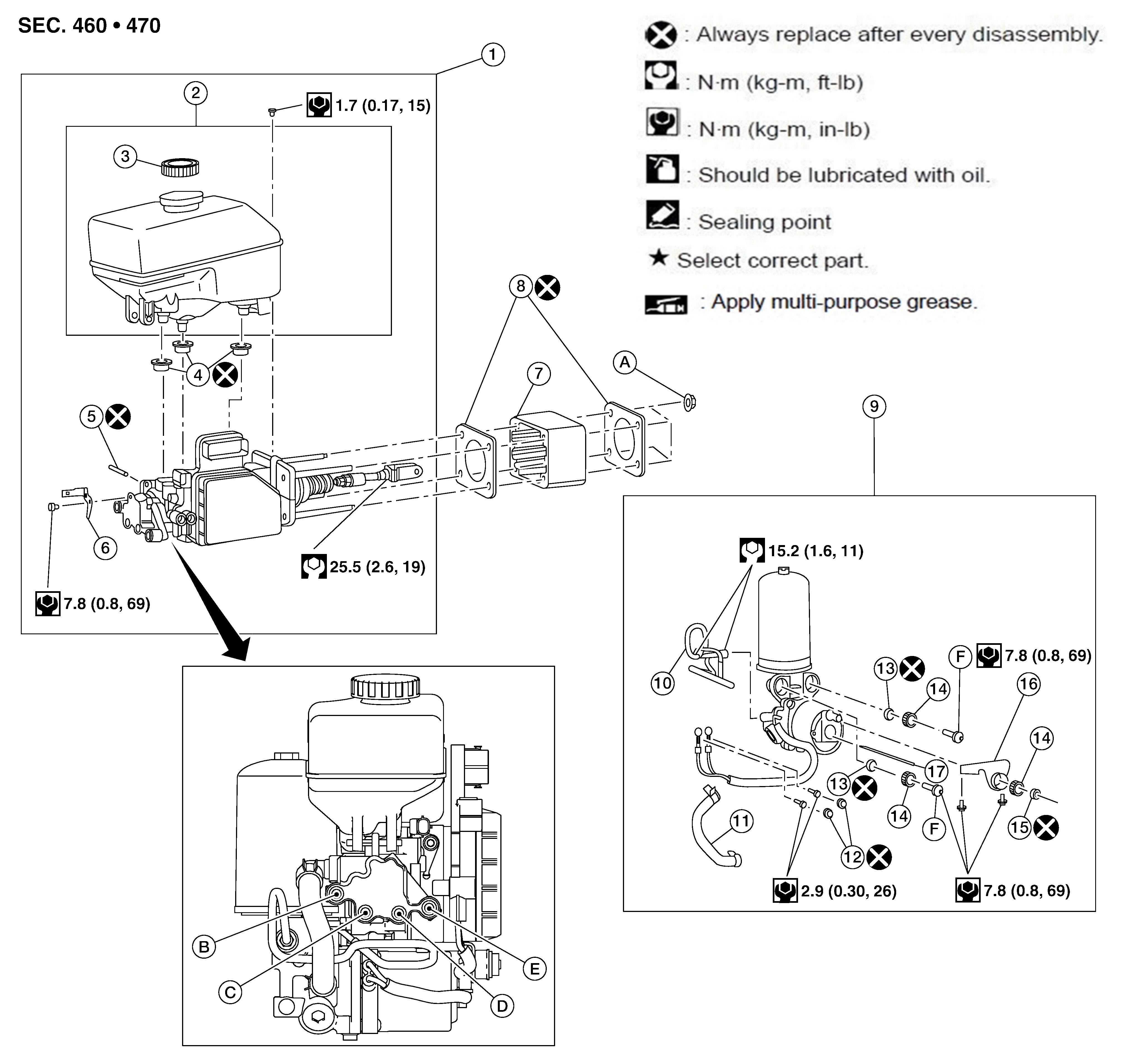

| 1. |
Master cylinder assembly |
2. |
Reservoir tank assembly |
3. |
Reservoir cap |
| 4. |
Reservoir tank seals |
5. |
Stopper pin |
6. |
Reservoir tank connector bracket |
| 7. |
Spacer |
8. |
Gaskets |
9. |
Hydraulic booster assembly |
| 10. |
Brake tube |
11. |
Brake hose |
12. |
Grommets |
| 13. |
Collars |
14. |
Bushings |
15. |
Cap |
| 16. |
Brake booster bracket |
17. |
Pin |
A. |
Nut. Refer to Exploded View
. |
| B. |
To rear (RH) brake caliper. Refer to Exploded View
. |
C. |
To front (RH) brake caliper. Refer to Exploded View
. |
D. |
To front (LH) brake caliper. Refer to Exploded View
. |
| E. |
To rear (LH) brake caliper. Refer to Exploded View
. |
F. |
Pin |
