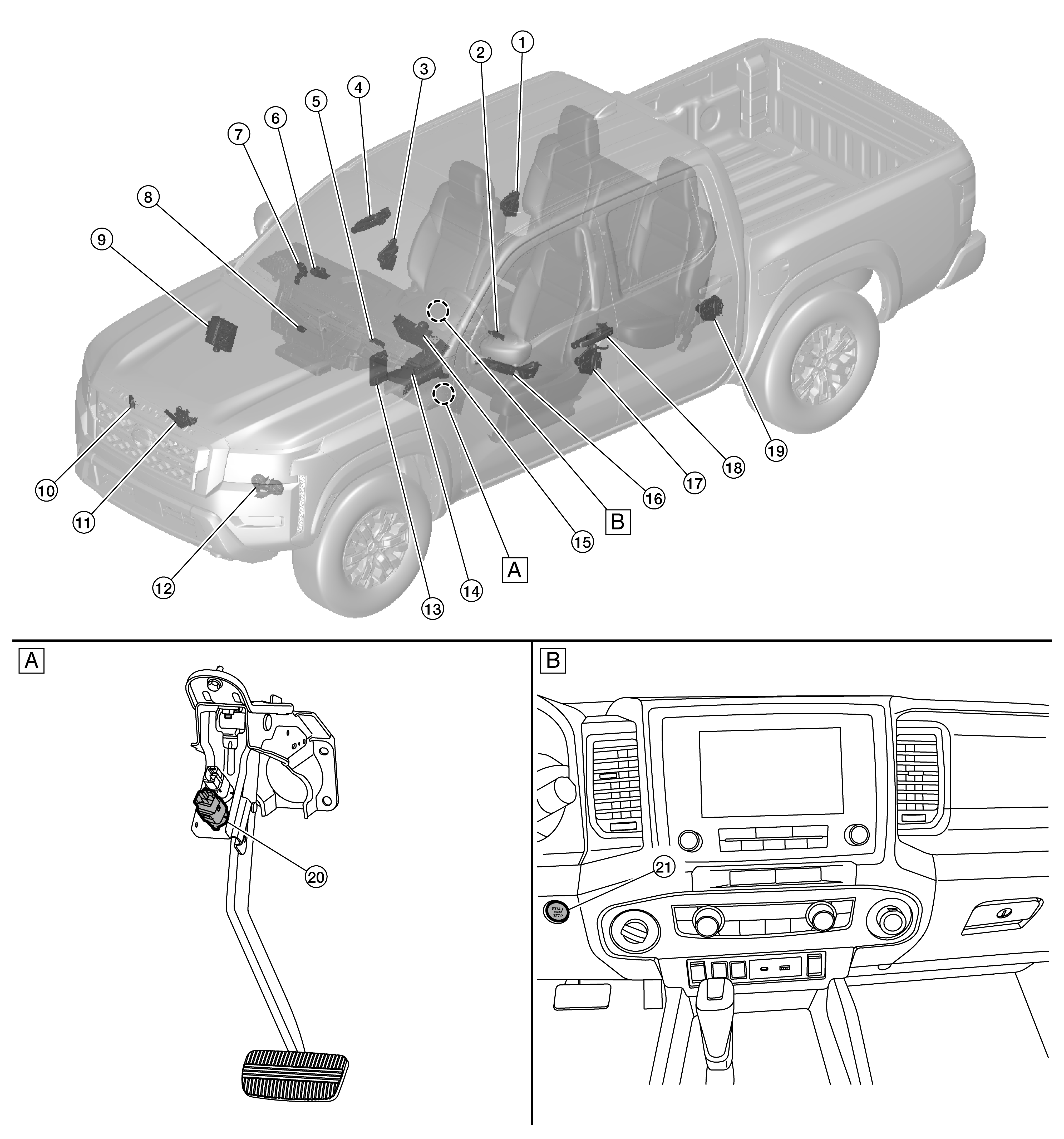

| 1. |
Rear door lock assembly RH |
Provides the BCM with the status of each monitored door. Refer to Rear Door Lock Assembly
for detailed component location. |
| 2. |
Inside key antenna (console) |
Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to Inside Key Antenna
for detailed component location. |
| 3. |
Front door lock assembly RH |
Provides the BCM with the status of each monitored door. Refer to Front Door Lock Assembly
for detailed component location. |
| 4. |
Front door request switch RH (if equipped) |
Front door request switch transmits door request switch signal to BCM. |
| 5. |
Inside key antenna (instrument center) |
Inside key antenna (instrument center) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to Inside Key Antenna
for detailed component location. |
| 6. |
Power window and door lock/unlock switch RH |
Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to Power Window and Door Lock/Unlock Switch RH
for detailed component location. |
| 7. |
Remote keyless entry receiver |
Remote keyless entry receiver receives button operation signal and key ID signal of Intelligent Key and then transmits them to BCM. Refer to Remote Keyless Entry Receiver
for detailed component location. |
| 8. |
Dongle unit (if equipped) |
Refer to Dongle Unit . |
| 9. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
- IPDM E/R detects push-button ignition switch (push switch) status, and transmits push-button ignition switch status signal (CAN) to BCM.
- IPDM E/R controls the horn and headlamps operation.
Refer to System Description
. |
| 10. |
Intelligent Key warning buzzer |
Refer to Intelligent Key Warning Buzzer . |
| 11. |
Hood switch |
Hood switch detects hood open/close condition. Refer to Hood Switch . |
| 12. |
Horn |
Sounds when the vehicle security system is triggered. |
| 13. |
BCM (Body Control Module) |
- BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM.
- BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna, and push-button ignition switch is pressed. If the ID verification result is OK, push-button ignition switch operation is available. Then, when the push-button ignition switch is pressed ON, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine.
Refer to System Description
. |
| 14. |
A/T shift selector (detent switch) |
A/T shift selector detects shift lever status, transmits detention switch signal to BCM. |
| 15. |
Combination meter |
- Combination meter transmits the vehicle speed signal to BCM via CAN communication.
- BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed.
- Security indicator lamp is located on combination meter.
- Security indicator lamp blinks when push-button ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board.
Refer to Component Location
(with Crew Cab) for detailed component location. |
| 16. |
Main power window and door lock/unlock switch |
- Door lock and unlock switch is integrated into the main power window and door lock/unlock switch.
- Door lock and unlock switch transmits door lock/unlock operation signal to BCM.
Refer to Main Power Window and Door Lock/Unlock Switch
for detailed component location. |
| 17. |
Front door lock assembly LH |
Provides the BCM with the status of each monitored door. Refer to Front Door Lock Assembly
for detailed component location. |
| 18. |
Front door request switch LH (if equipped) |
Front door request switch transmits door request switch signal to BCM. |
| 19. |
Rear door lock assembly LH |
Provides the BCM with the status of each monitored door. Refer to Rear Door Lock Assembly
for detailed component location. |
| 20. |
Stop lamp switch |
The stop lamp switch transmits the stop lamp switch signal (ON/OFF) to the ABS actuator and electric unit (control unit). Refer to Stop Lamp Switch
for detailed component location. |
| 21. |
Push-button ignition switch |
Push-button ignition switch has push switch inside which detects that push-button ignition switch is pressed and then transmits ON/ OFF signal to BCM. BCM changes the ignition switch position with the operation of push-button ignition switch. BCM maintains the ignition switch position status while push-button ignition switch is not operated. Refer to Push-button Ignition Switch
for detailed component location. |
