Charging System: Generator

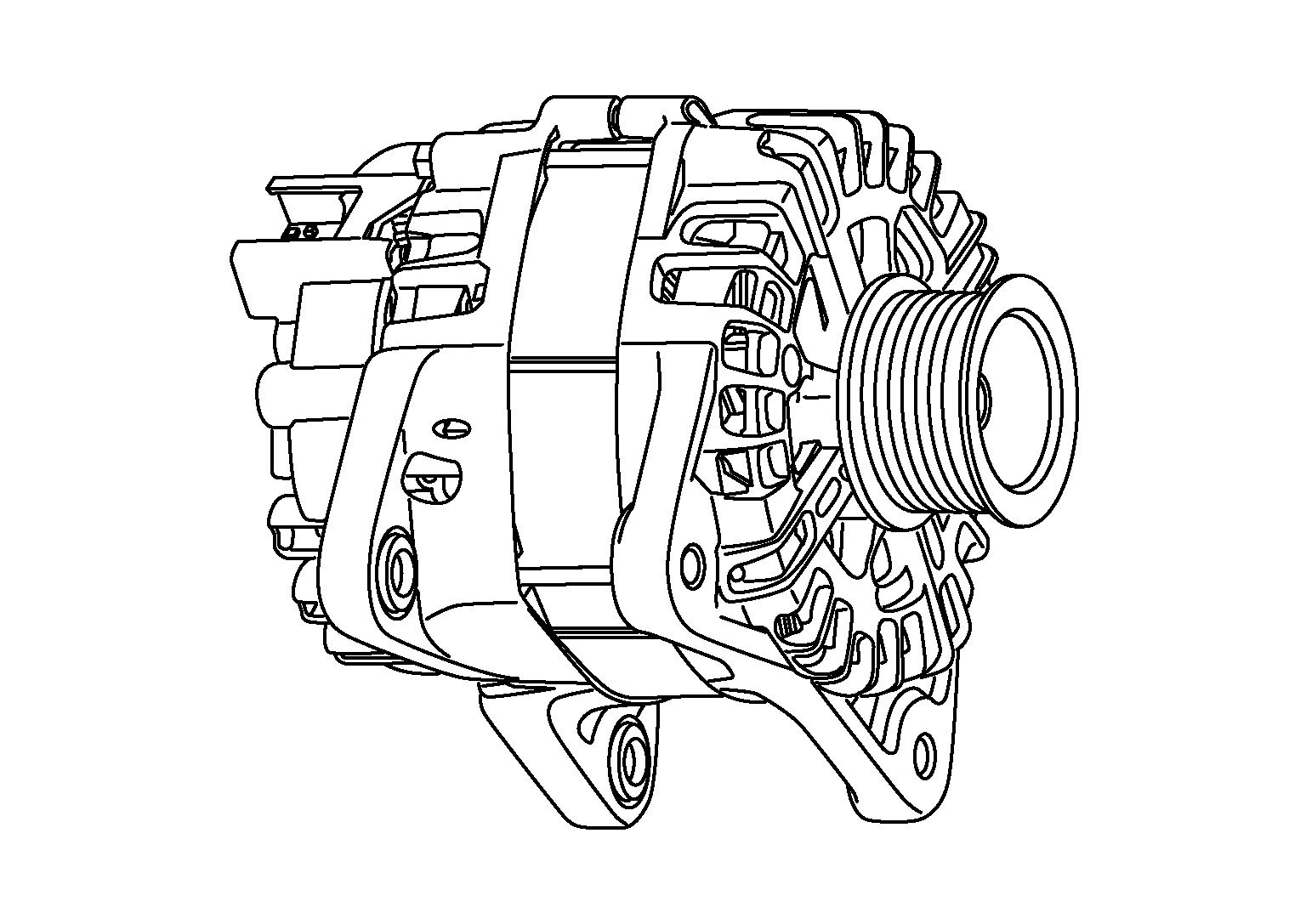

Generator is installed on LH side of the engine.

Courtesy of NISSAN
The generator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.
The IC regulator controls the power generation voltage by the target power generation voltage based on the received PWM command signal. When there is no PWM command signal, the generator performs the normal power generation according to the characteristic of the IC regulator.
