Component Location

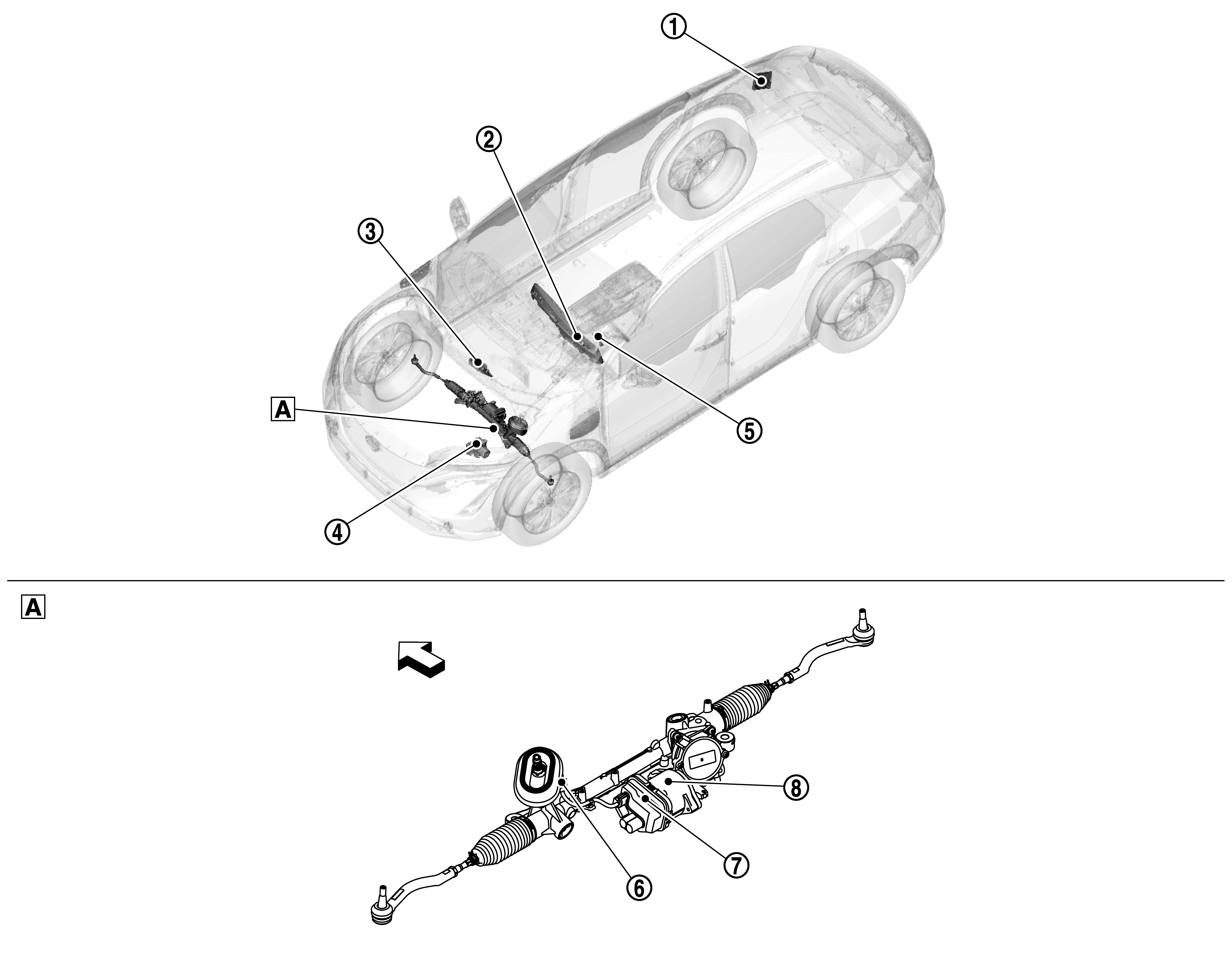

GNSDB151827Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Steering gear assembly
SYMBOL ADAS control unit 2. Refer to Component Part Location for detailed installation location. SYMBOL Combination meter. Refer to Component part location for detailed installation location. SYMBOL VCM. Refer to Component part location for detailed installation location.
SYMBOL ABS actuator and electric unit (control unit). Refer to Component part Location . for detailed installation location. SYMBOL Steering angle sensor. Refer to Component part Location . for detailed installation location. SYMBOL Power steering torque sensor
SYMBOL Power steering control module SYMBOL EPS motor
SYMBOL Vehicle front
