Fuel Level Sensor Unit (Sub)
>>

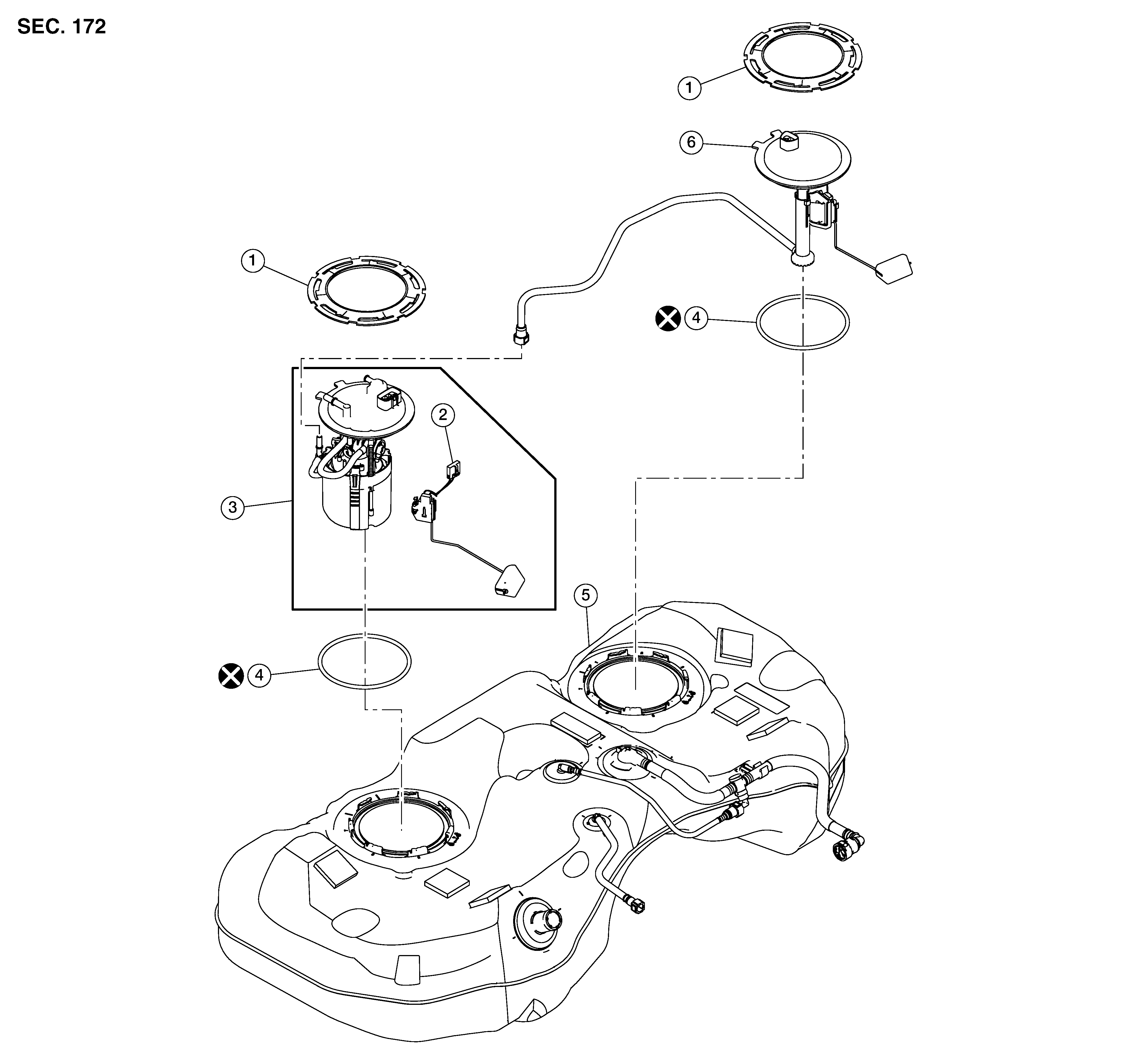

Exploded View
Exploded View
Courtesy of NISSAN
1.
Lock ring
2.
Fuel level sensor
3.
Fuel level sensor unit and fuel pump
4.
O-ring
5.
Fuel tank
6.
Fuel level sensor (sub)
