Component Location

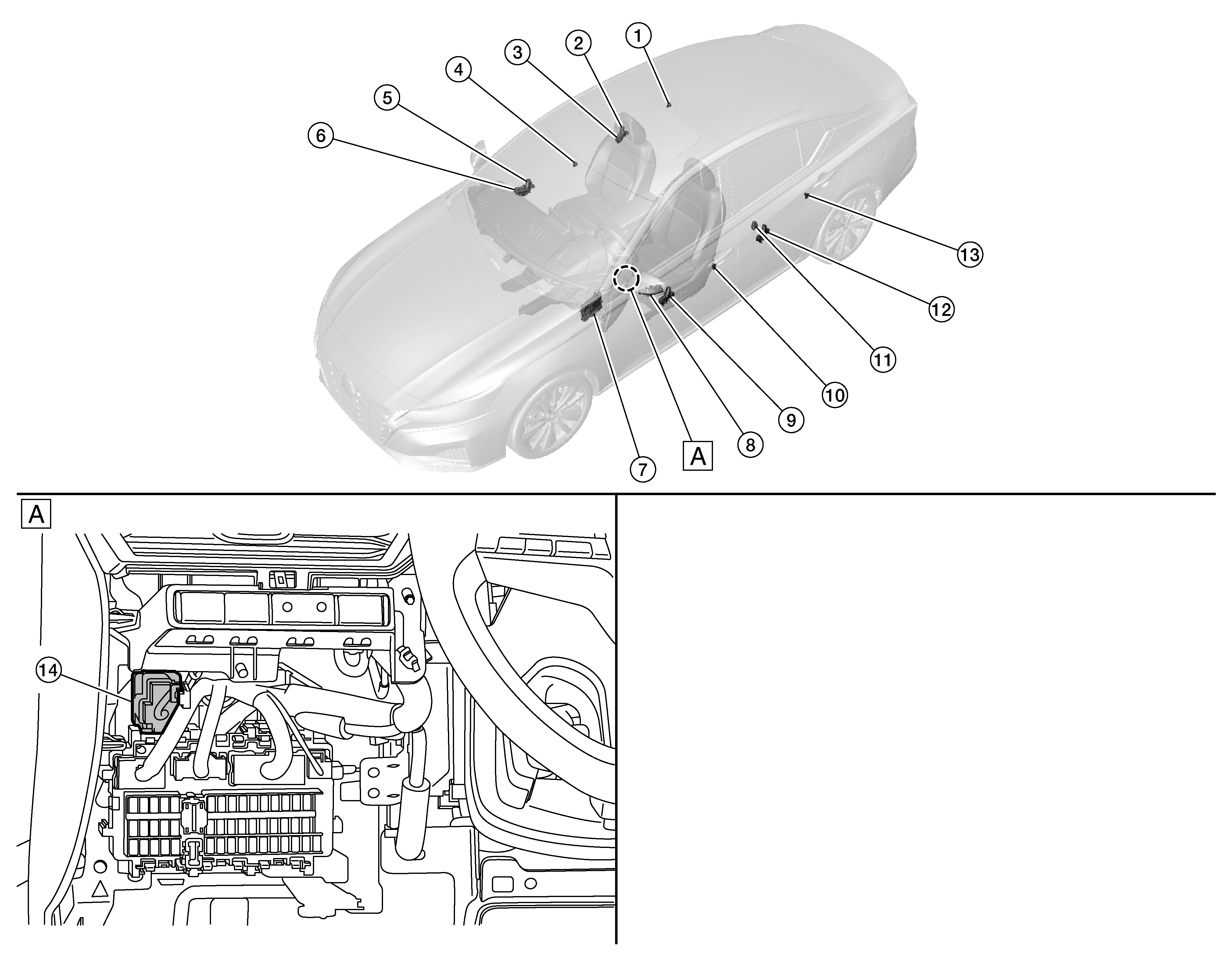

GNSDB48620Courtesy of NISSAN
A. Behind LH side of instrument panel
No. Component Function
1. Rear door switch RH Detects door open/close condition and transmits the signal to the BCM. Refer to Component Description .
2. Rear power window motor RH Refer to Component Description .
3. Rear power window switch RH Refer to Component Description .
4. Front door switch RH Detects door open/close condition and transmits the signal to the BCM. Refer to Component Description .
5. Front power window motor RH Refer to Component Description .
6. Power window and door lock/unlock switch RH Refer to Component Location .
7. BCM (Body Control Module)
  • Supplies power supply to the power window switch.
  • Controls retained power window relay.
Refer to Component Location .
8. Main power window and door lock/unlock switch Refer to Component Location .
9. Front power window motor LH Refer to Component Description .
10. Front door switch LH Detects door open/close condition and transmits the signal to the BCM. Refer to Component Description .
11. Rear power window switch LH Refer to Component Description .
12. Rear power window motor LH Refer to Component Description .
13. Rear door switch LH Detects door open/close condition and transmits the signal to the BCM. Refer to Component Description .
14. Power window relay Supplies power to the power window switches, for power window motor operation.
