Exploded View

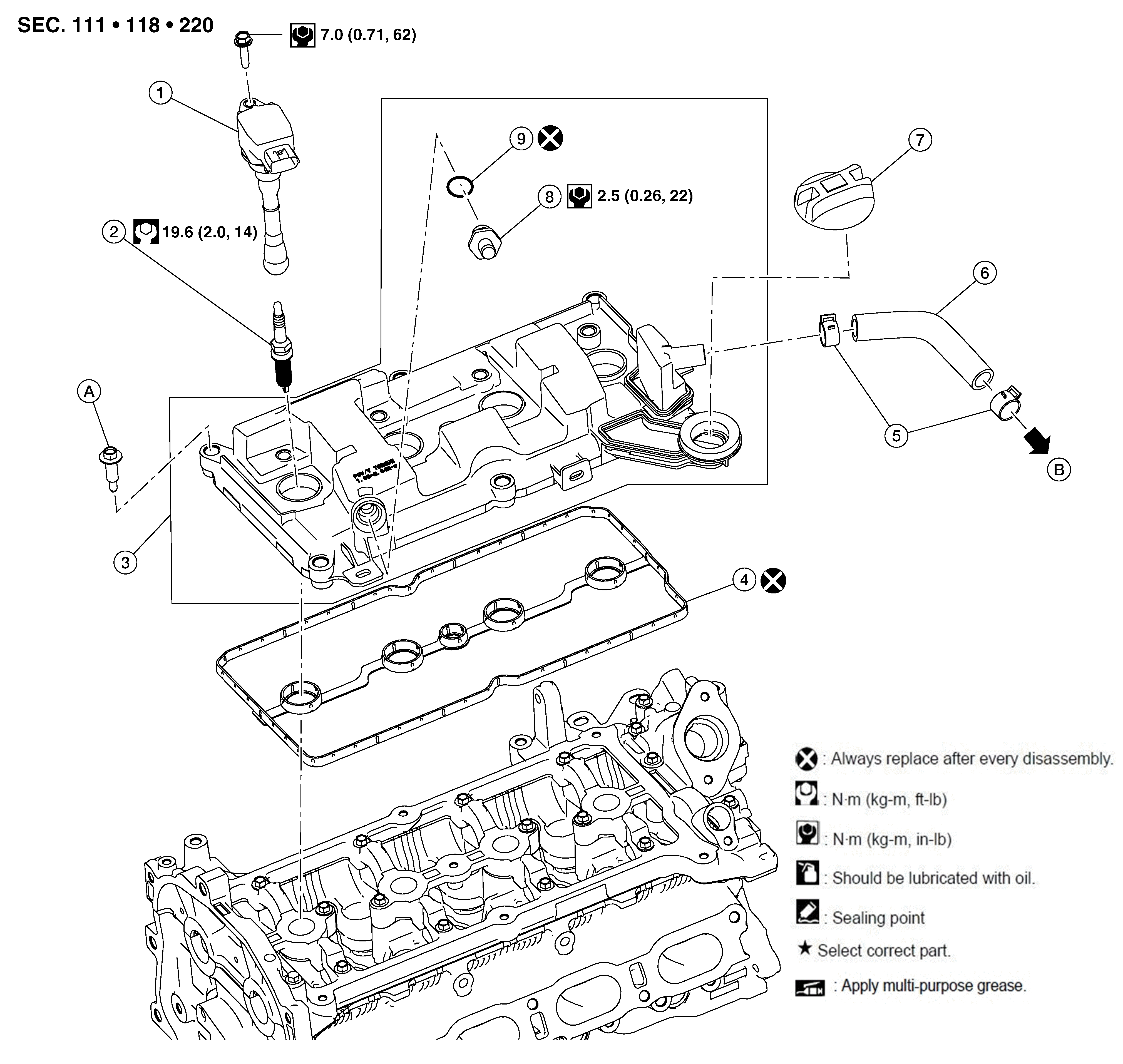

Fig 1: Spark Plug Components With Torque Specifications
GNSAWBIA0417Z-417Courtesy of NISSAN NORTH AMERICA, INC.

1.

Ignition coil

2.

Spark plug

3.

Rocker cover assembly

4.

Rocker cover gasket

5.

Clamp

6.

Blow-by hose

7.

Oil filler cap

8.

PCV valve

9.

O-ring

A.

Refer to Removal and Installation .

B.

To resonator duct. Refer to Exploded View .
