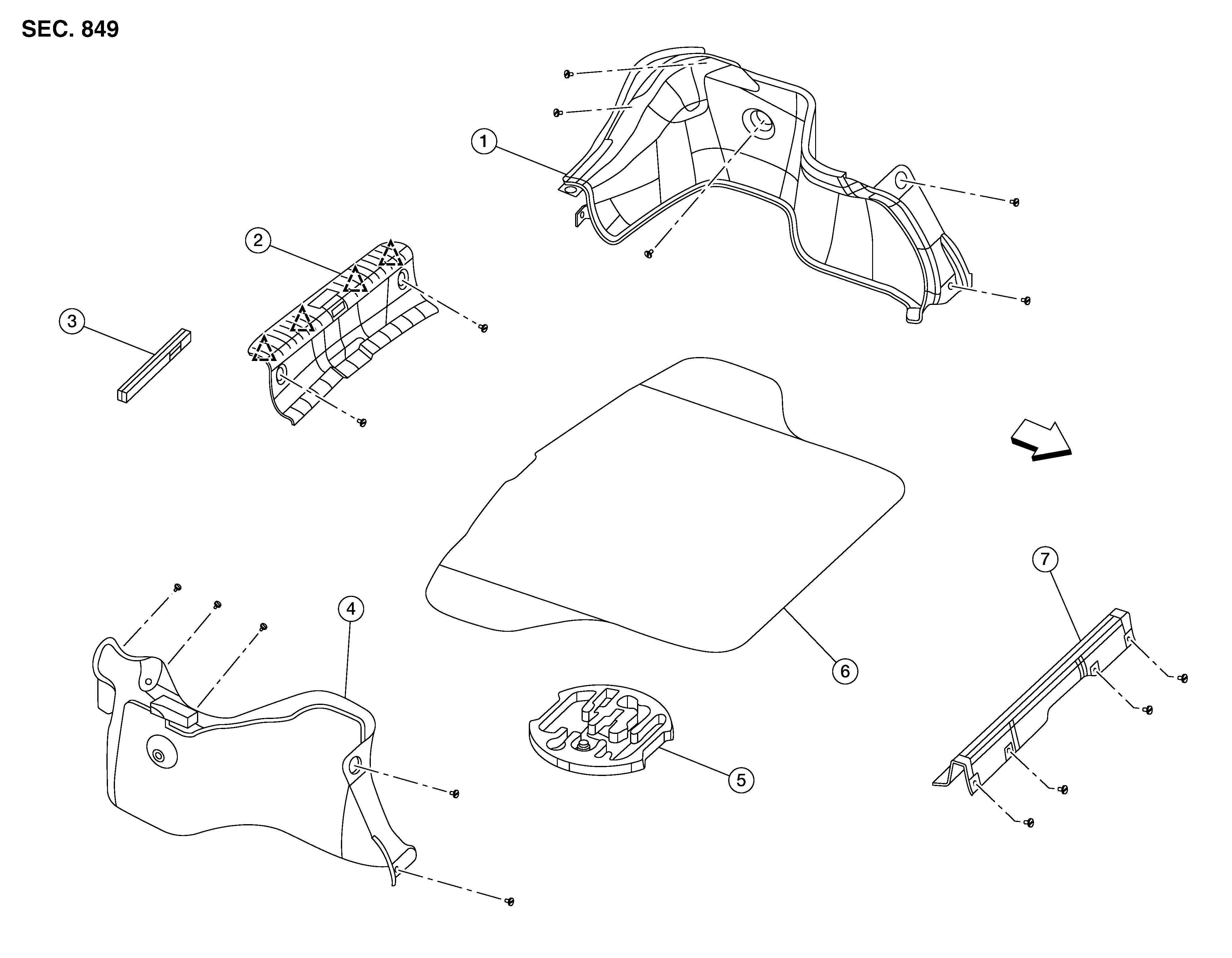

Exploded View
WARNING: This page is about a different car, the 2021 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Trunk side finisher (LH)
|
2.
|
Trunk rear plate
|
3.
|
Reflector box assembly
|
|
4.
|
Trunk side finisher (RH)
|
5.
|
Box assembly
|
6.
|
Trunk floor trim
|
|
7.
|
Lower seatback finisher
|
|
Clip
|
|
Pawl
|
|
|
Front
|
