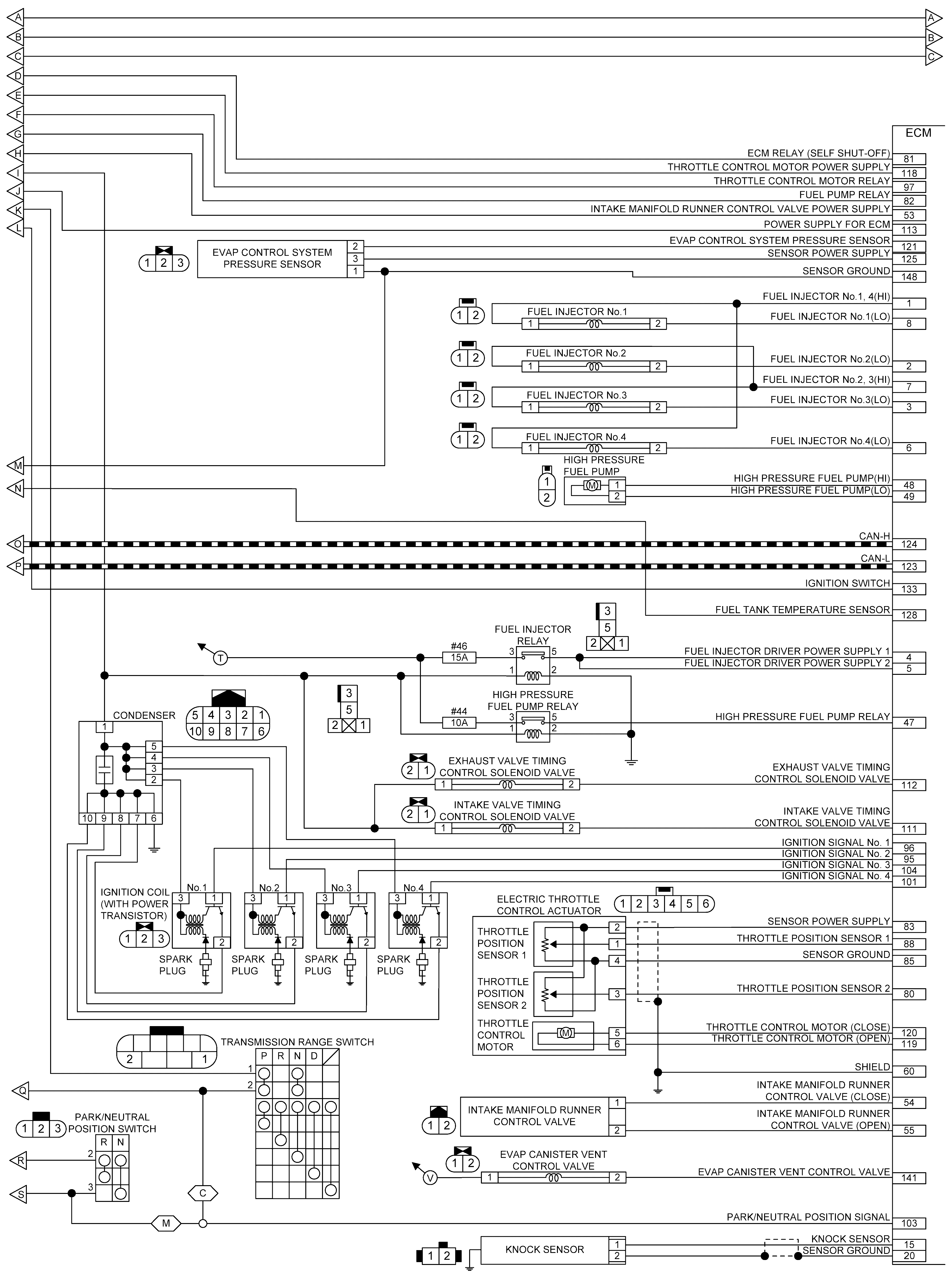

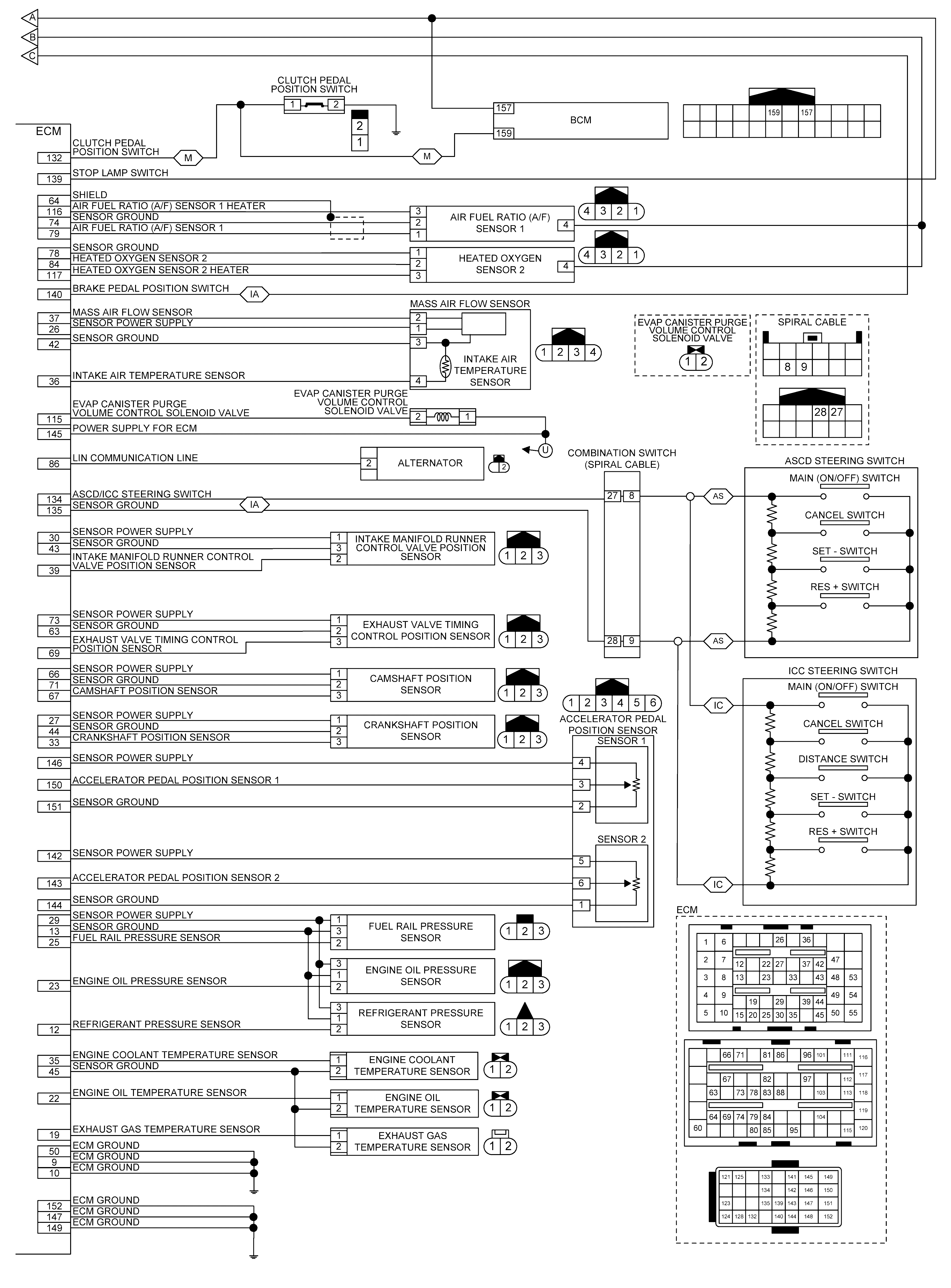

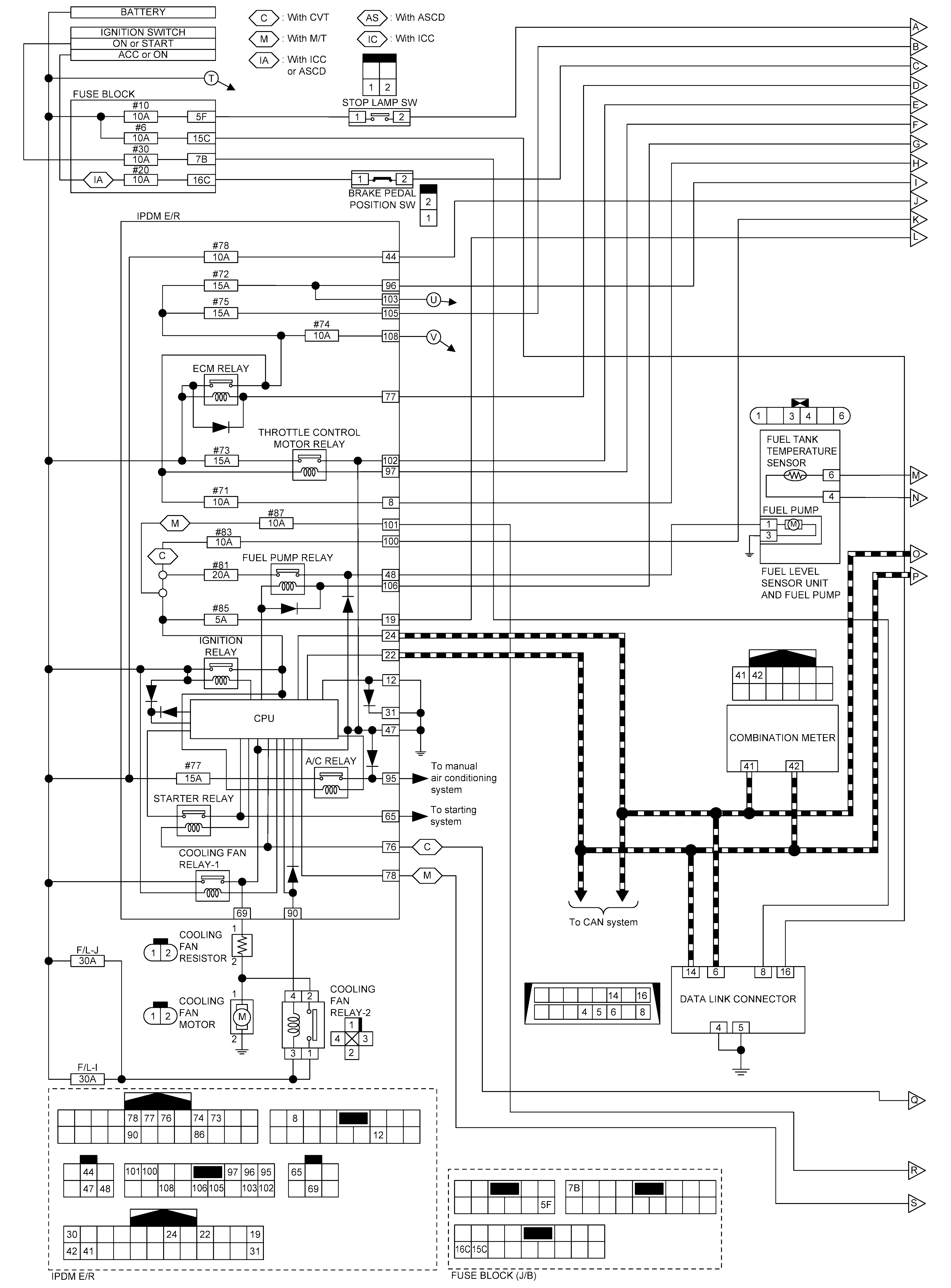

Home >> Nissan-Datsun >> 2022 >> Rogue Sport SL, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Diagnostics) (1 Of 2) >> Description >> System >> Engine Control System >> Circuit Diagram
