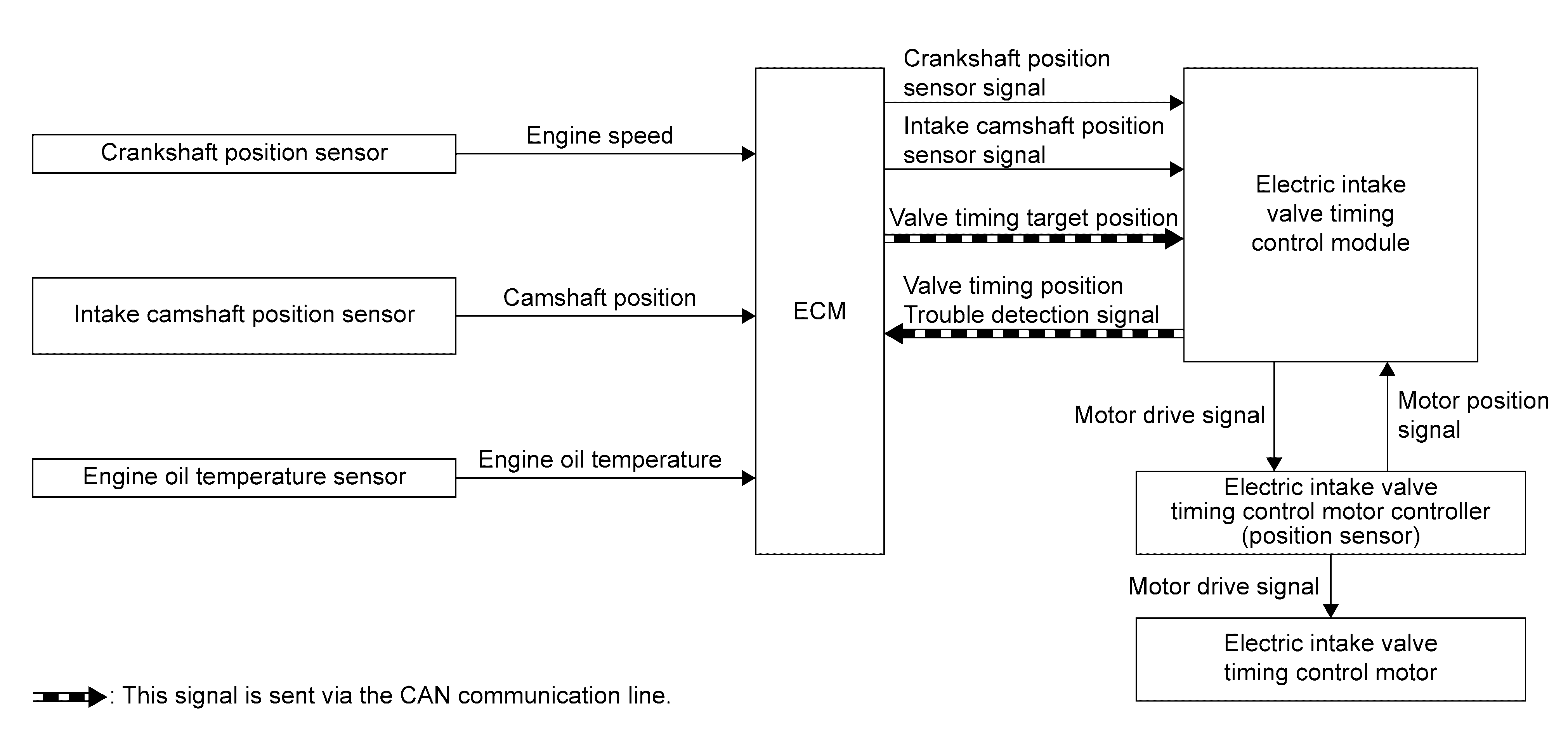

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Component parts	Function
Crankshaft position sensor	Crankshaft Position Sensor .
Intake camshaft position sensor	Intake Camshaft Position Sensor .
Engine oil temperature sensor	Engine Oil Temperature Sensor .
ECM	ECM .
Electric intake valve timing control module	Electric Intake Valve Timing Control Module .
Electric intake valve timing control actuator	Electric Intake Valve Timing Control Actuator .
Electric intake valve timing control motor*	Electric Intake Valve Timing Control Actuator .

*: Electric intake valve timing control motor is built in to the cam sprocket (INT).
