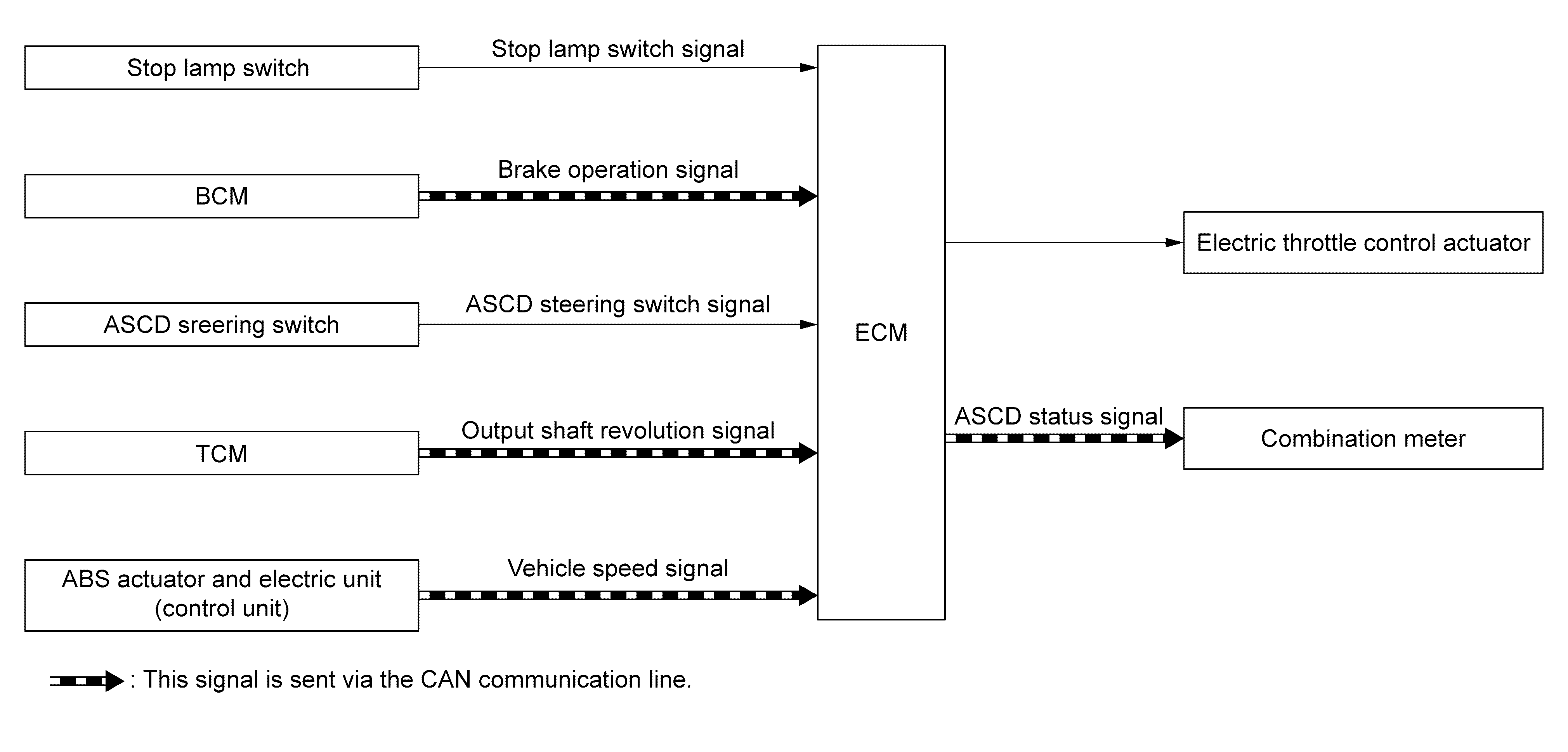

System Diagram
|
Component parts |
Function |
|
Stop lamp switch |
|
|
BCM |
ECM transmits the brake operation signal via CAN communication. |
|
ASCD steering switch |
|
|
TCM |
ECM receives the output shaft revolution signal via CAN communication. |
|
ABS actuator and electric unit (control unit) |
ECM receives the vehicle speed signal via CAN communication. |
|
ECM |
ECM . |
|
Electric throttle control actuator |
|
|
Combination meter |
It transmits the ASCD status signal to combination meter via CAN communication. |
