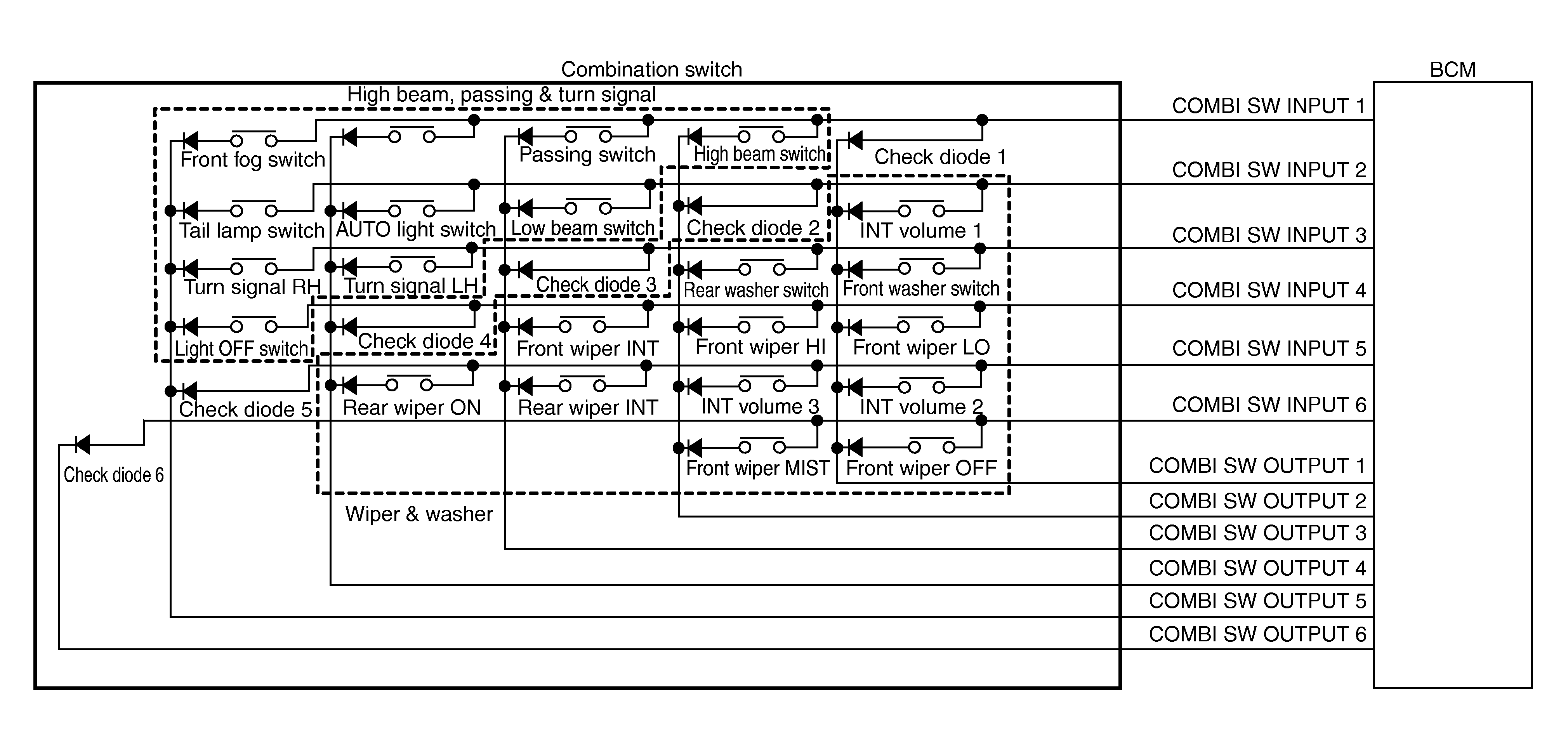

System Diagram

GNSILL0309677

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: AUTO light switch is not applicable. (For Canada models)
