Removal and Installation: Removal

CAUTION: When replacing chassis control module, configuration of chassis control module is required. Refer to Description .
  1. Remove the glove box. Refer to Removal and Installation .

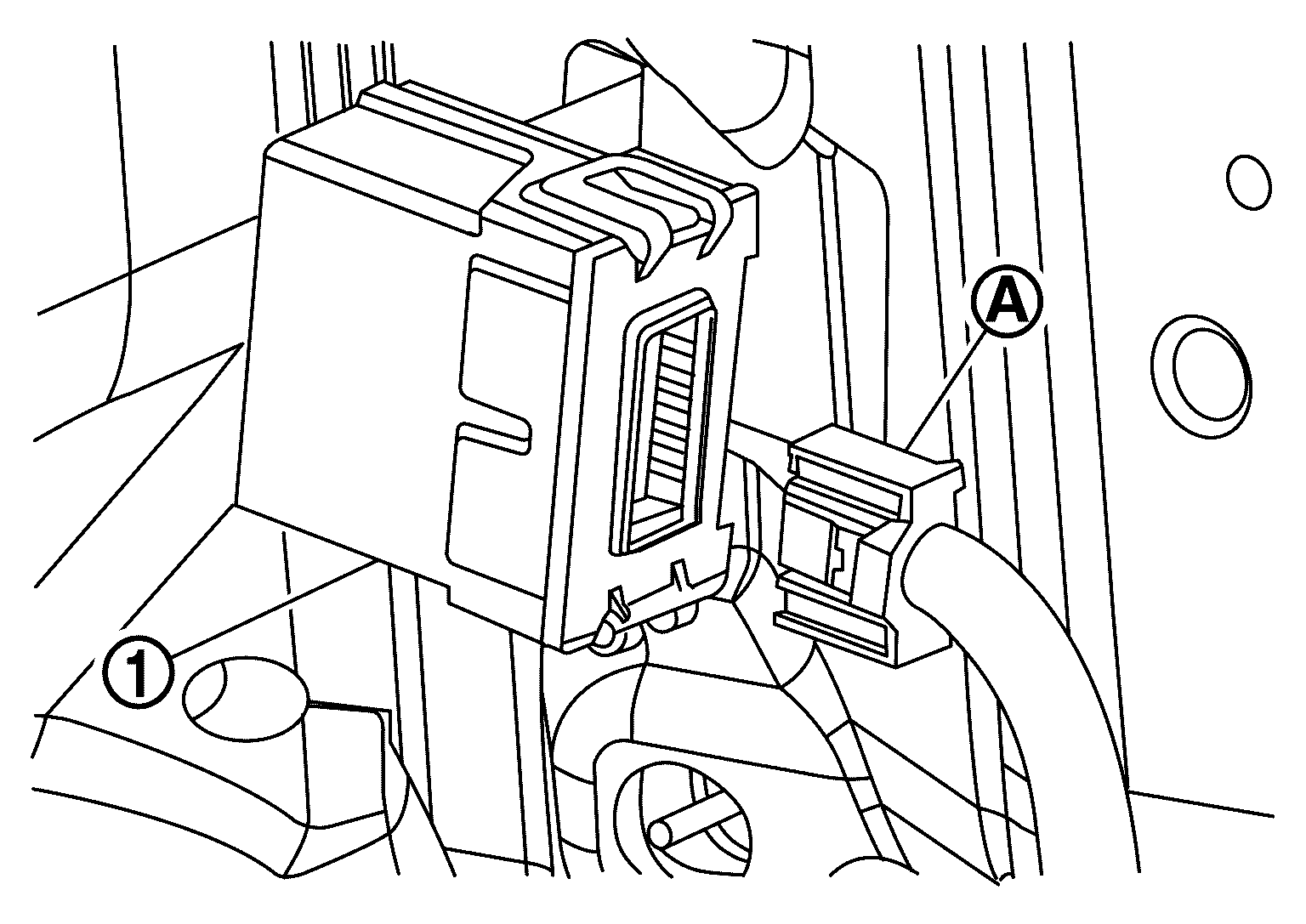

  2. Remove the chassis control module harness connector SYMBOL from chassis control module SYMBOL .
    GNSILL0312292Courtesy of NISSAN NORTH AMERICA, INC.

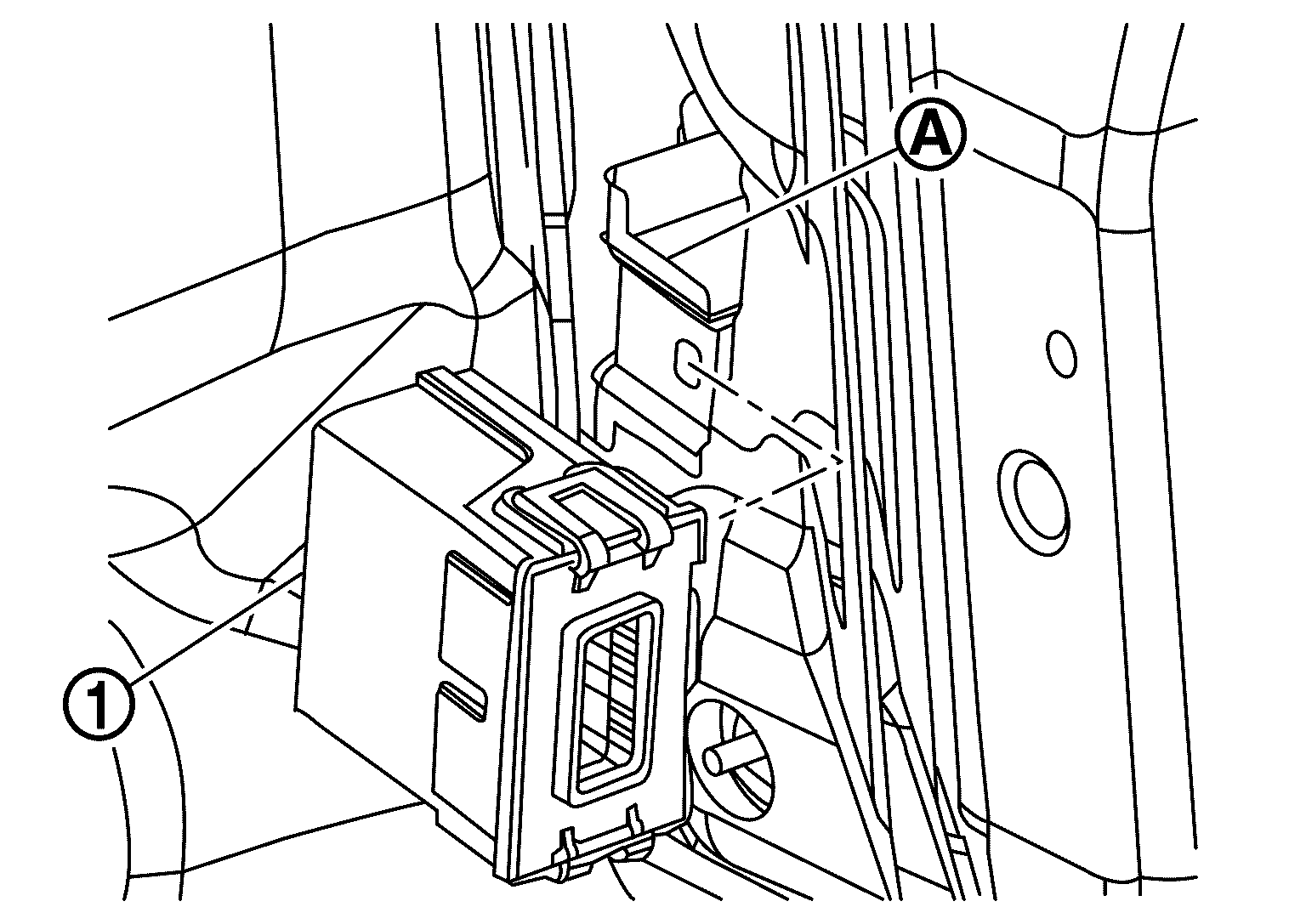

  3. Remove the chassis control module SYMBOL from bracket SYMBOL .
    GNSILL0312295Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never drop the chassis control module.
