Home
>>
Nissan-Datsun
>>
2022
>>
Rogue SL, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Removal And Installation
>>
Generator
>>
Pr25DD
>>
Exploded View
Exploded View

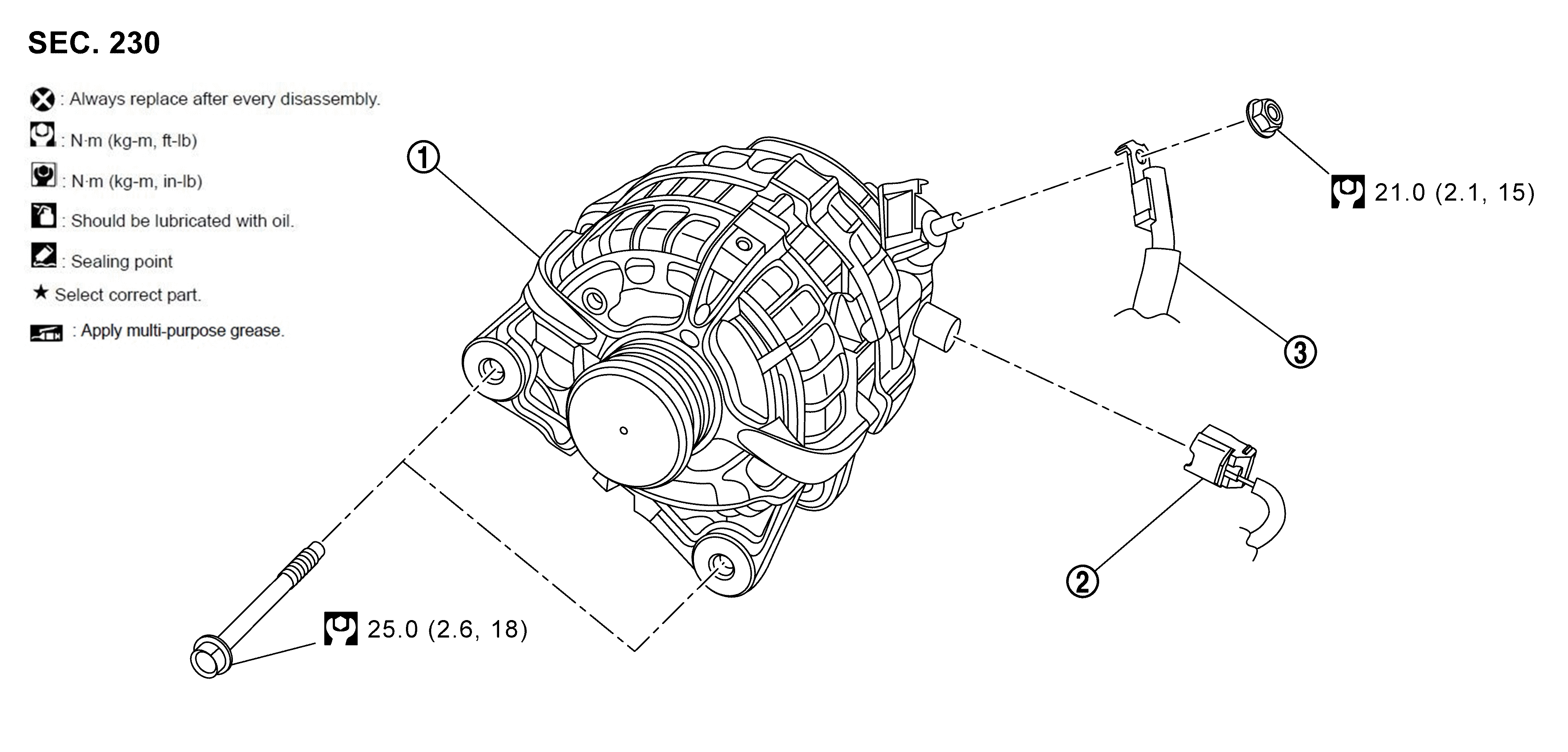

Fig 1: Generator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Generator
Generator harness connector
"B" terminal
: N.m (kg-m, ft-lb)
