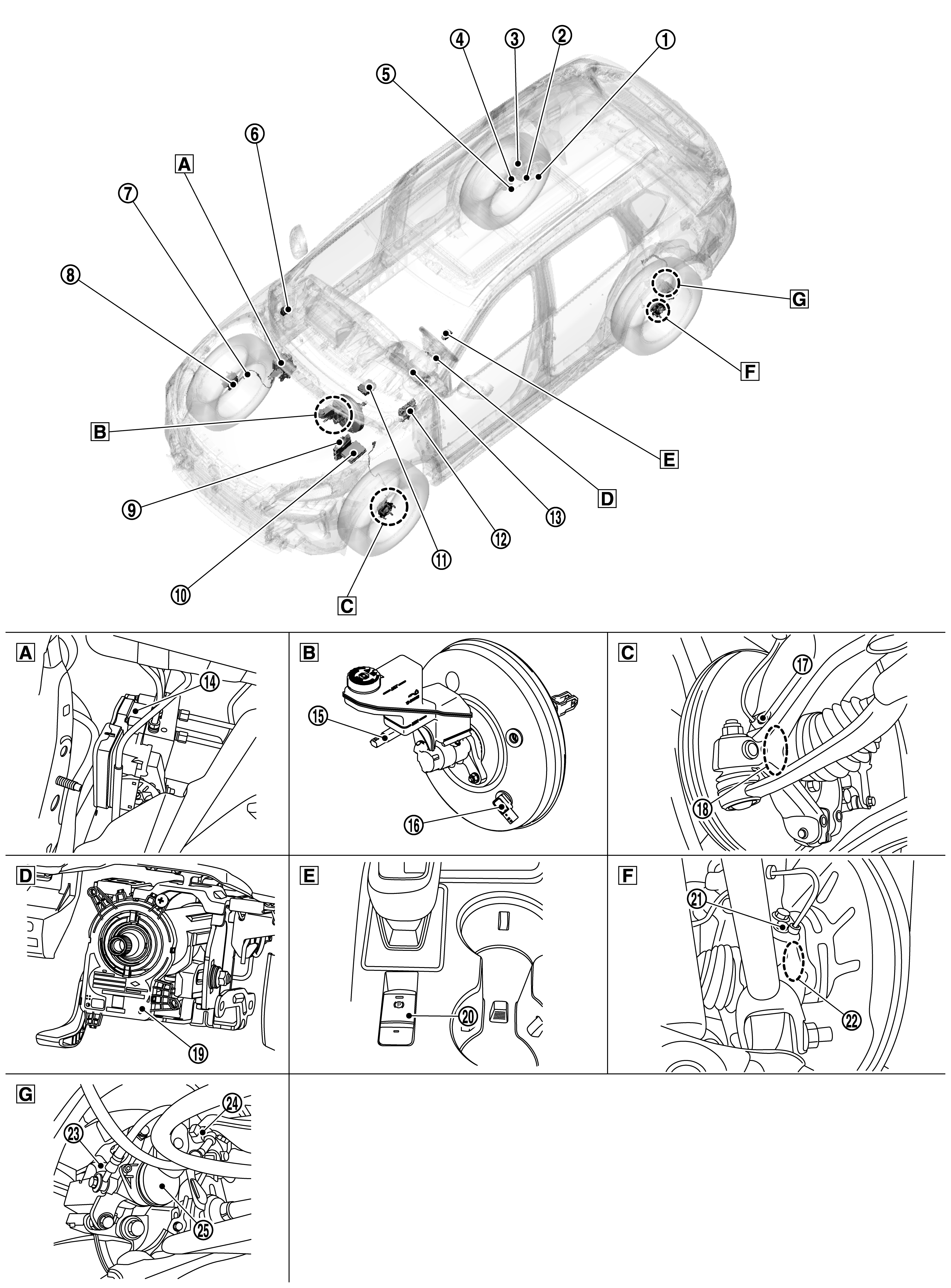

Component Location
|
|
Engine room (RH side) |
|
Engine room (LH side) |
|
Steering knuckle |
|
|
Back of spiral cable assembly |
|
Center console |
|
Rear axle housing |
|
|
Rear axle housing |
|
|
Parking brake actuator harness (RH) |
|
Parking brake actuator (RH) |
|
Rear brake caliper assembly (RH) |
|
|
Rear RH sensor rotor |
|
REAR WHEEL SENSOR RH |
|
Chassis control module Refer to Component Location for detailed installation location. |
|
|
FRONT WHEEL SENSOR RH |
|
Front RH sensor rotor |
|
ECM (Engine Control Module) Refer to Component Location (KR15DDT engine models)for detailed installation location. |
|
|
IPDM E/R (Intelligent Power Distribution Module Engine Room) Refer to Component Location for detailed installation location. |
|
TCM (Transmission Control Module) Refer to Component Location (KR15DDT engine models) for detailed installation location. |
|
BCM (Body Control Module) Refer to Component Location for detailed installation location. |
|
|
Combination meter Refer to Component Location (full TFT meter), Component Location (7 inch information display) for detailed installation location. |
|
ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
|
Brake fluid level switch |
|
|
Brake vacuum sensor |
|
FRONT WHEEL SENSOR LH |
|
Front LH sensor rotor |
|
|
Steering angle sensor |
|
Parking brake switch |
|
REAR WHEEL SENSOR LH |
|
|
Rear LH sensor rotor |
|
Rear brake caliper assembly (LH) |
|
Parking brake actuator harness (LH) |
|
|
Parking brake actuator (LH) |
