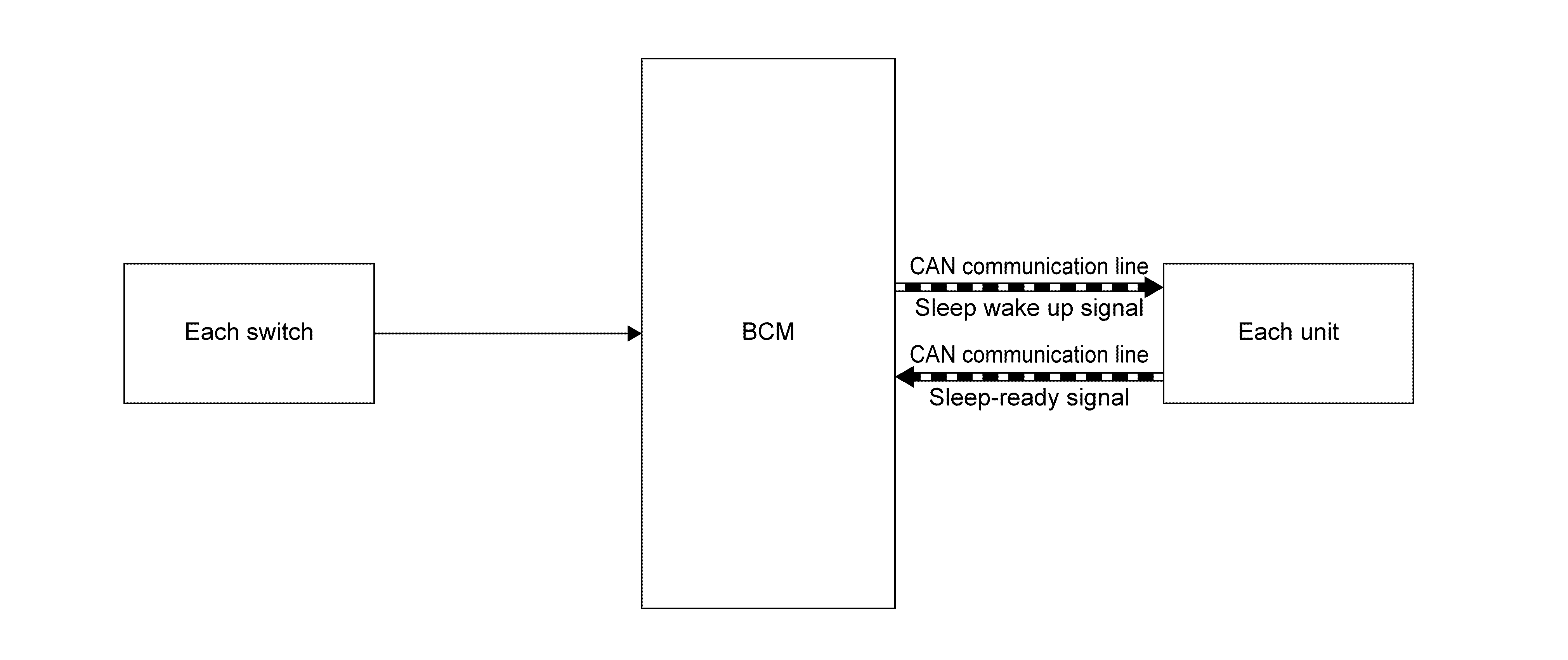

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Component	Function
BCM	BCM transmits sleep wake up signal to each unit when condition is established, and then goes into each mode.
AV control unit	Transmits the sleep-ready signal to BCM via CAN communication. Receives the sleep wake up signal from BCM via CAN communication.
Chassis control module
Combination meter
Driver seat control unit
Intelligent Key unit
IPDM E/R
TCU
BOSE speaker amp.	Transmits the sleep-ready signal to BCM via CAN communication.
ABS actuator and electric unit (control unit)	Receives the sleep wake up signal from BCM via CAN communication.
Automatic back door control unit
Electric shift control module
Each switch	Each switch transmits the vehicle status to BCM.
