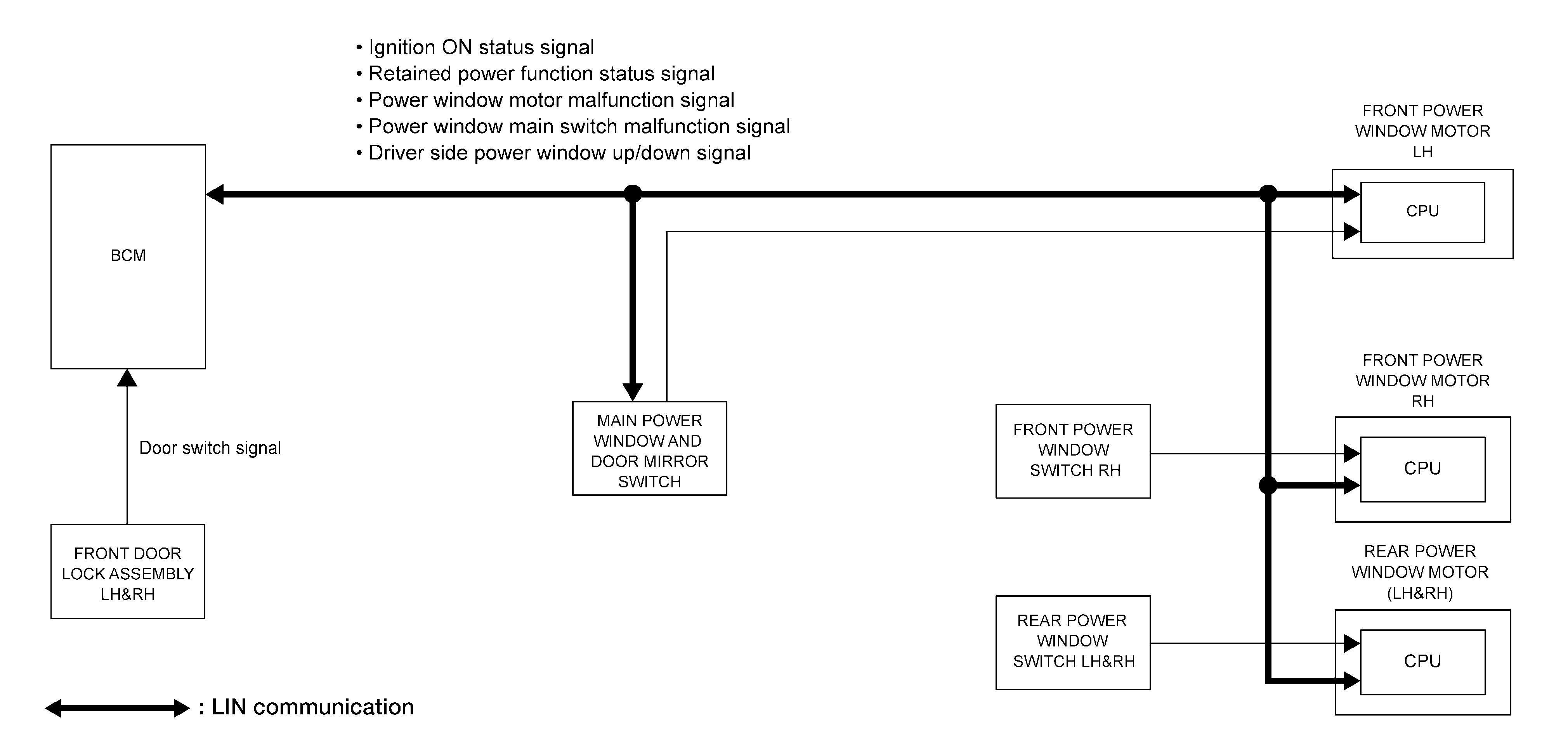

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

INPUT/OUTPUT SIGNAL CHART

Item	Input signal to main power window and door mirror switch	Main power window and door lock/unlock switch function	Actuator
Main power window and door mirror switch	Front power window motor LH UP/DOWN signal	Power window control	Front power window motor
Front power window switch RH	Front power window motor RH UP/DOWN signal
BCM	RAP signal
Rear power window switch	Rear power window motor UP/DOWN signal		Rear power window motor
