Removal and Installation: Notes

  1. Remove shift selector finisher. Refer to Exploded View .
  2. Remove the screws (A).

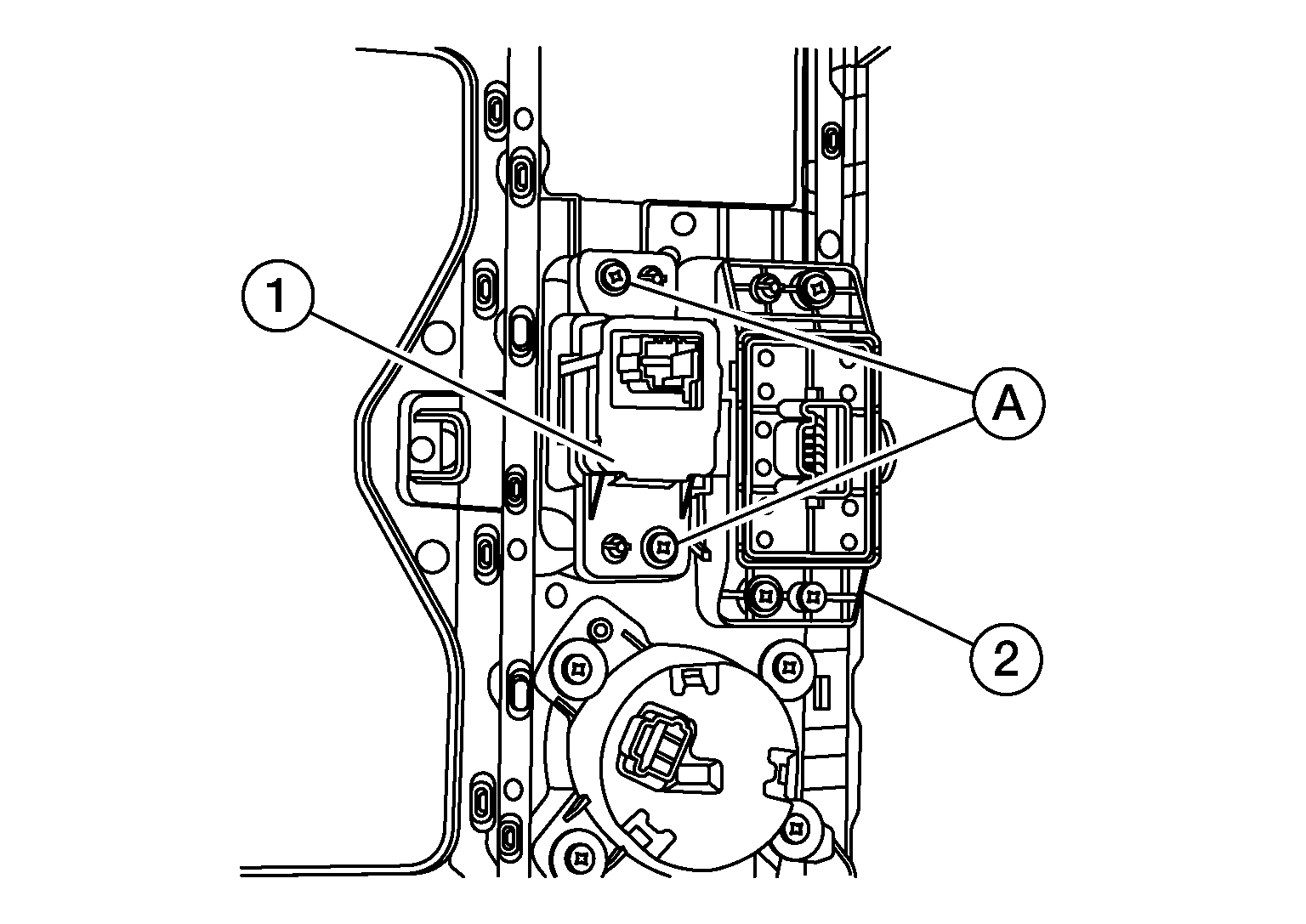

    GNSALBIA1077Z-077Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the stop/start off switch (1) from shift selector finisher (2).
