Body Compartment

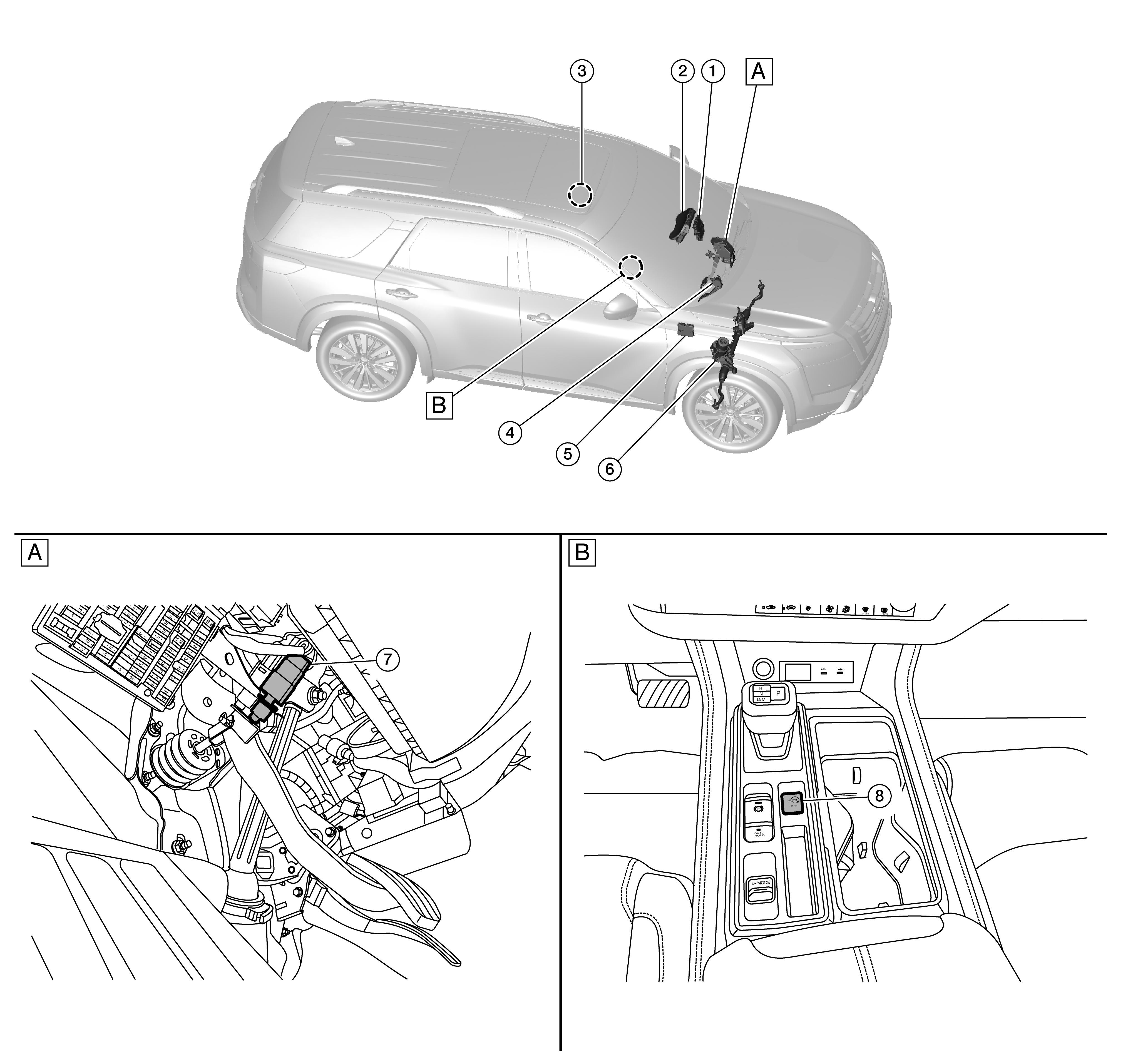

GNSDB113775Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Pedal periphery

SYMBOL

Center console area

SYMBOL

BCM

SYMBOL

Combination meter

SYMBOL

Door switch (driver side)

SYMBOL

Accelerator pedal position sensor

SYMBOL

A/C auto amp.

SYMBOL

EPS control unit

SYMBOL

Stop lamp switch

SYMBOL

Stop/start OFF switch
