Removal 2WD

  1. Remove shift selector finisher. Refer to Exploded View .

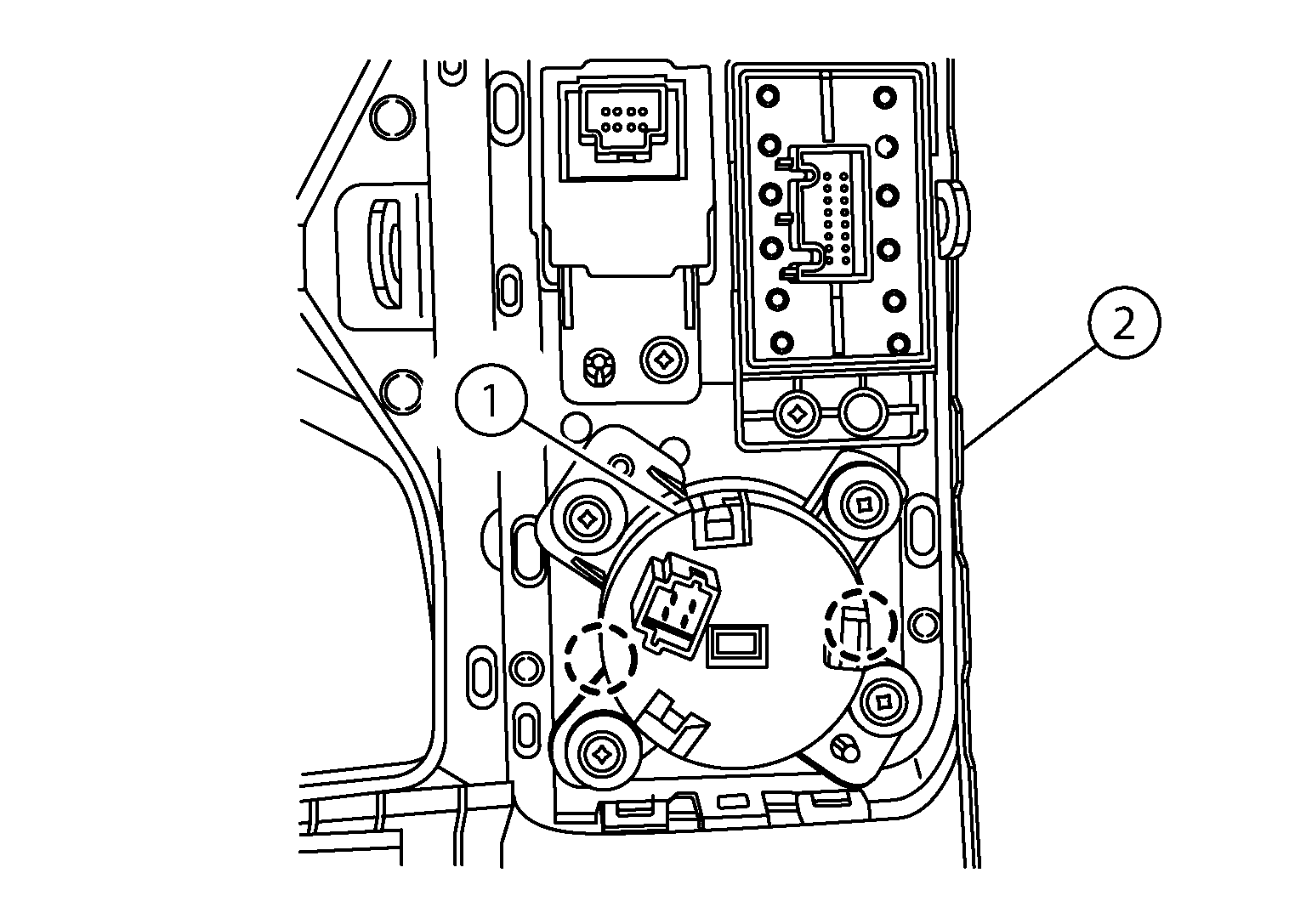

  2. Using a suitable tool, release pawls and remove drive mode switch (1) from console finisher (2).
    GNSALOIA0440Z-440Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
