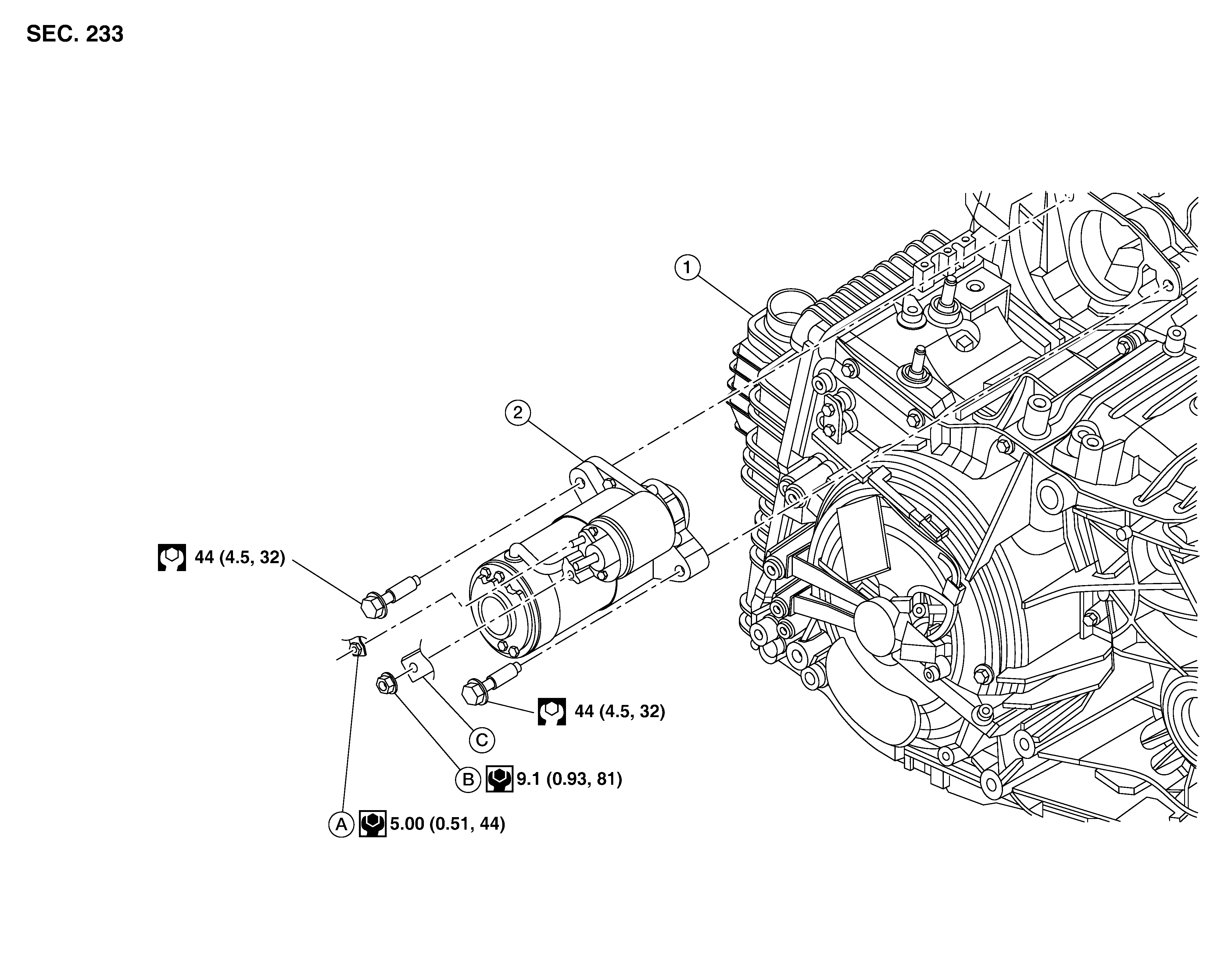

Exploded View

Fig 1: Starter Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Converter housing	2.	Starter motor	A.	\"S\" terminal nut
B.	\"B\" terminal nut	C.	\"B\" terminal harness

NOTE: The "S" terminal nut is attached to the "S" terminal harness.
