Removal and Installation: Removal

CAUTION: If replacing chassis control module, Perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE." Refer to Description .
  1. Remove the instrument panel assembly. Refer to Removal and Installation .

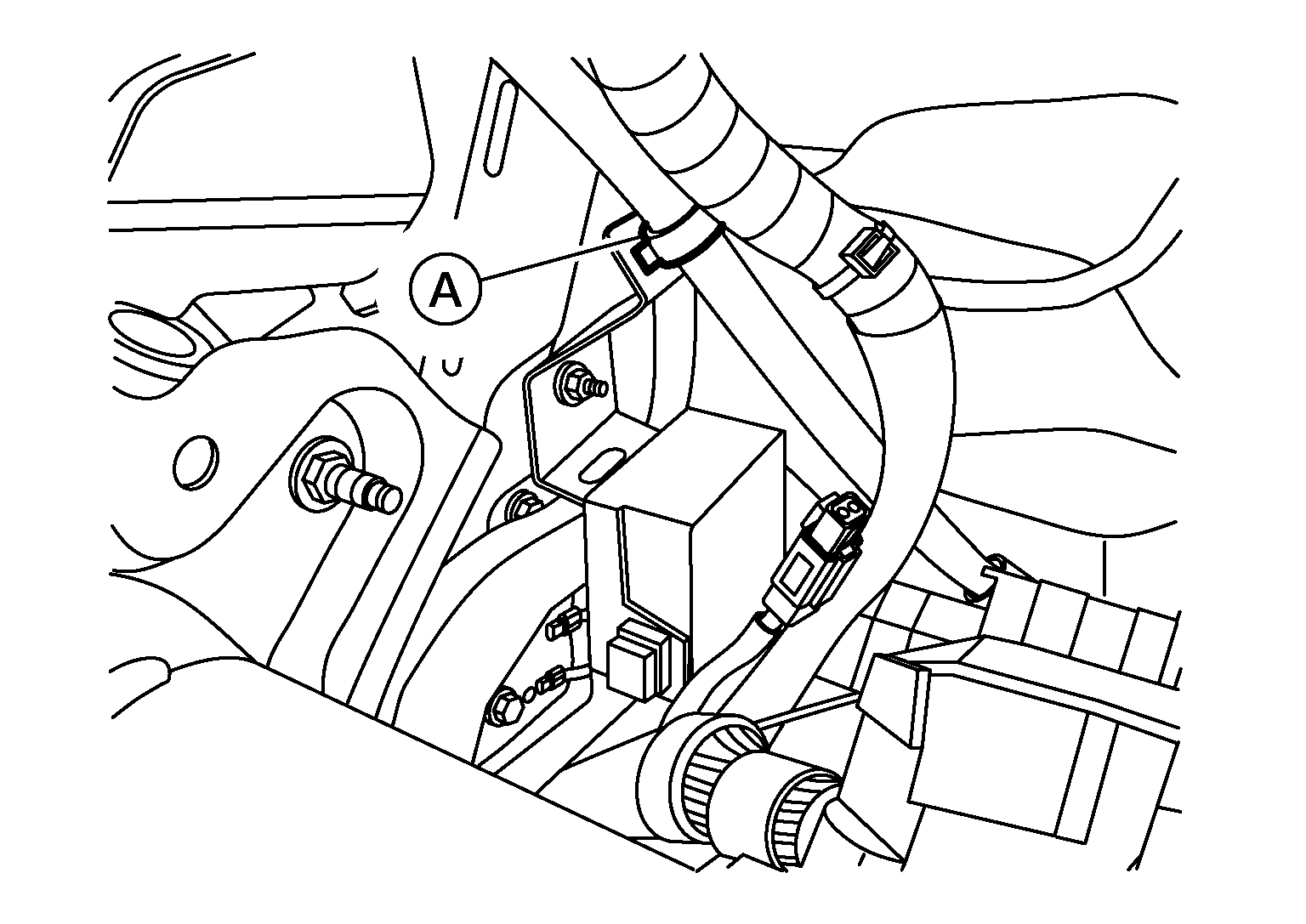

  2. Release clip (A).
    GNSALOIA0441Z-441Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector from chassis control module.

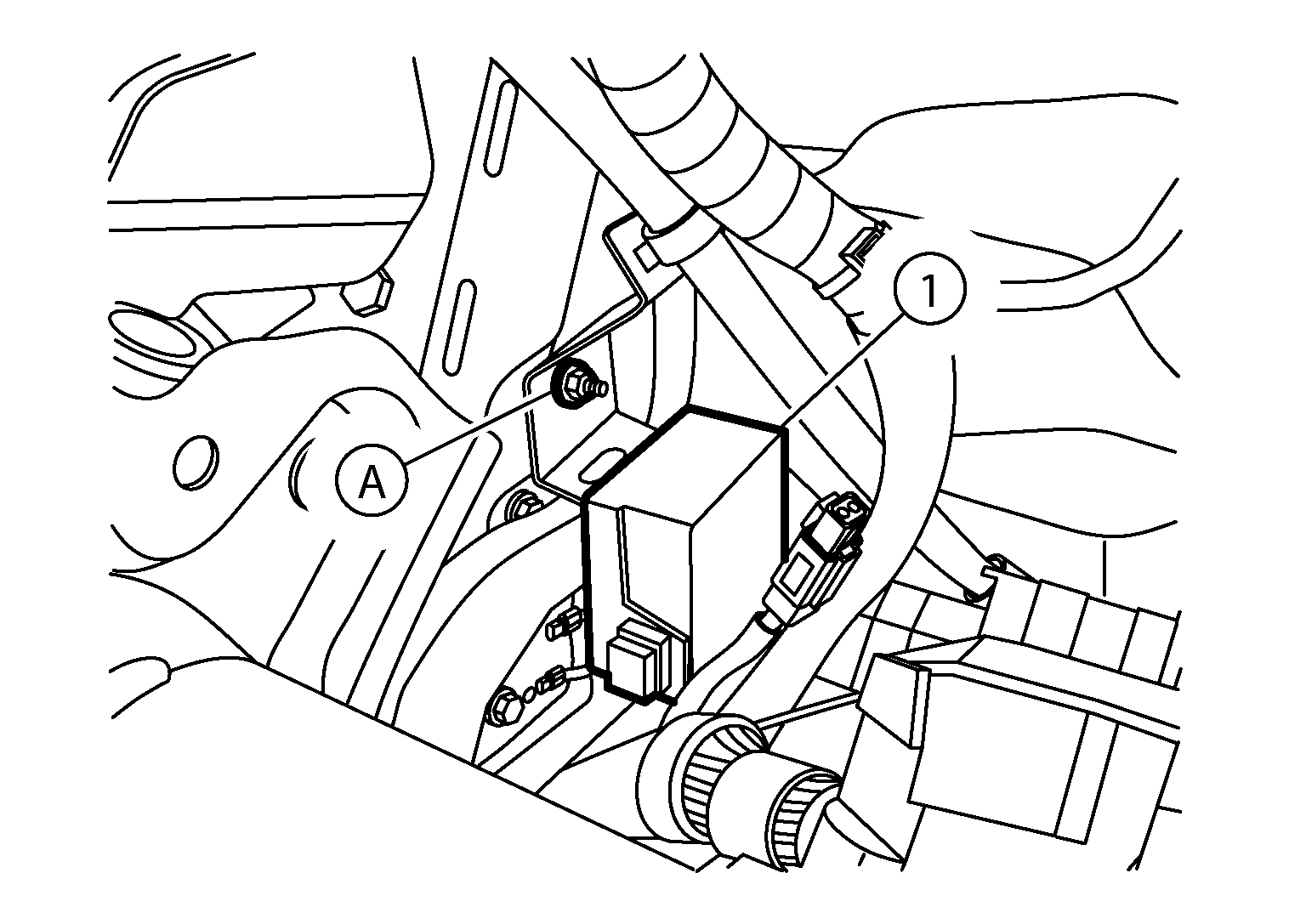

  4. Remove nut (A), then remove chassis control module (1).
    GNSDB114990Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not drop the chassis control module.
