Exploded View

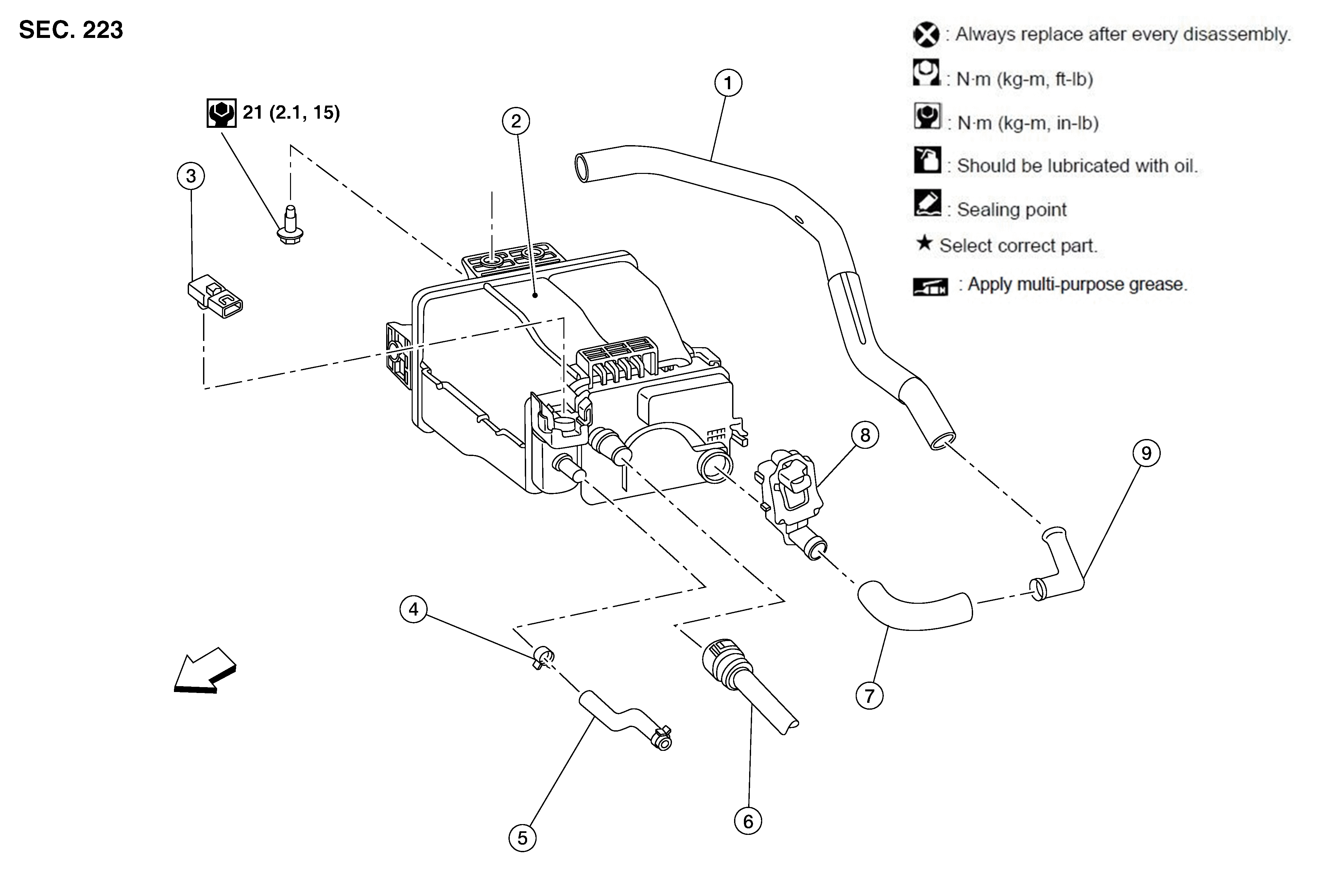

Fig 1: EVAP Canister For USA And Canada With Torque Specifications

GNSAWBIA0664Z-664

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister vent control valve hose	2.	EVAP canister	3.	EVAP canister control pressure sensor (with O-ring)
4.	Hose clamp	5.	EVAP canister purge hose	6.	EVAP canister vent line
7.	EVAP canister vent control valve hose	8.	EVAP canister vent control valve	9.	EVAP canister vent control valve hose connector
	Front of vehicle

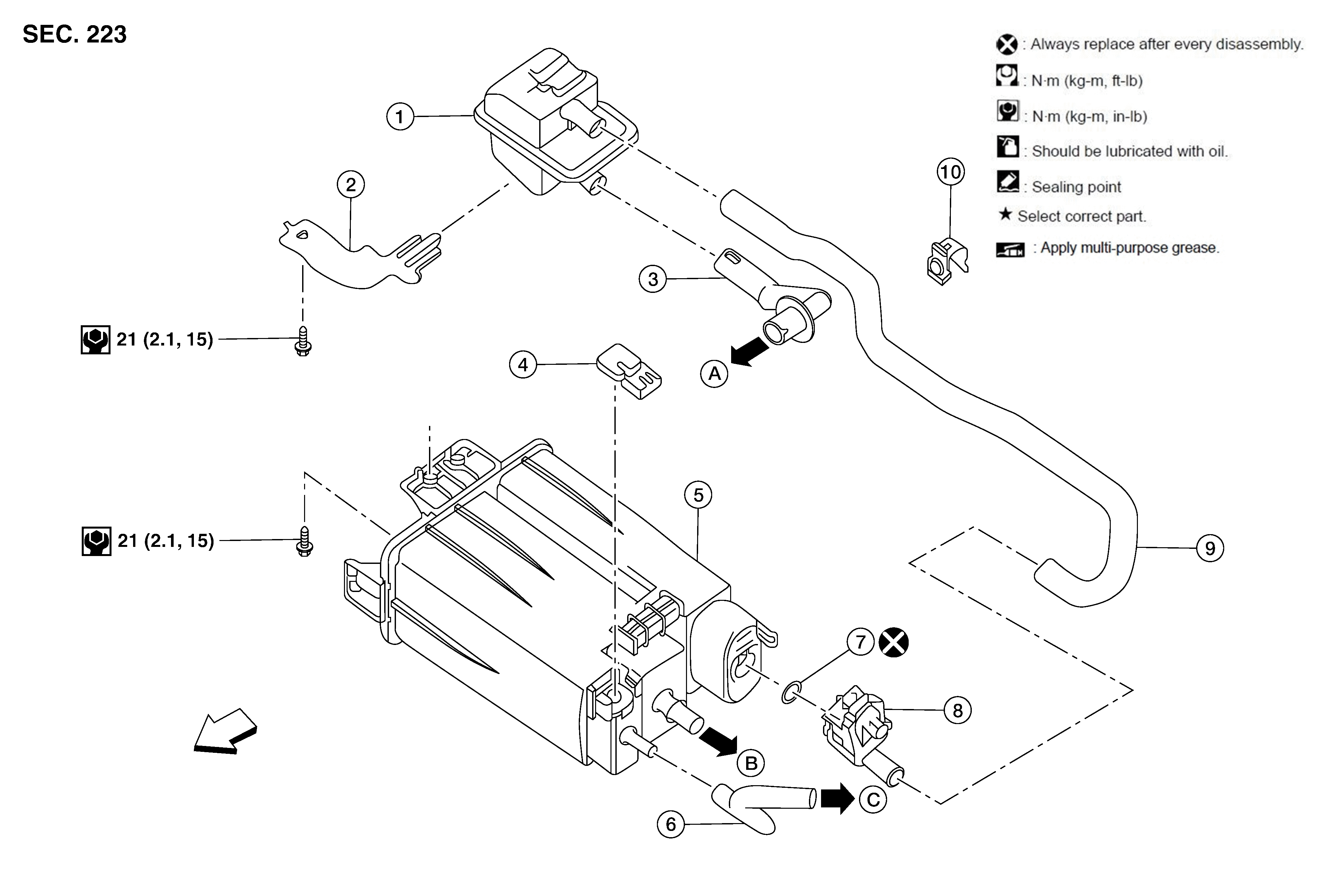

Fig 1: EVAP Canister For Mexico With Torque Specifications

GNSAWBIA0532Z-532

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister filter	2.	EVAP filter bracket	3.	EVAP canister filter vent hose
4.	EVAP control system pressure sensor (with O-ring)	5.	EVAP canister	6.	EVAP canister purge hose
7.	O-ring	8.	EVAP canister vent control valve	9.	EVAP canister control valve hose
10.	Clip	A.	To vehicle body	B.	To fuel tank Exploded View.
C.	To EVAP tube Exploded view.		Front
