Exploded View

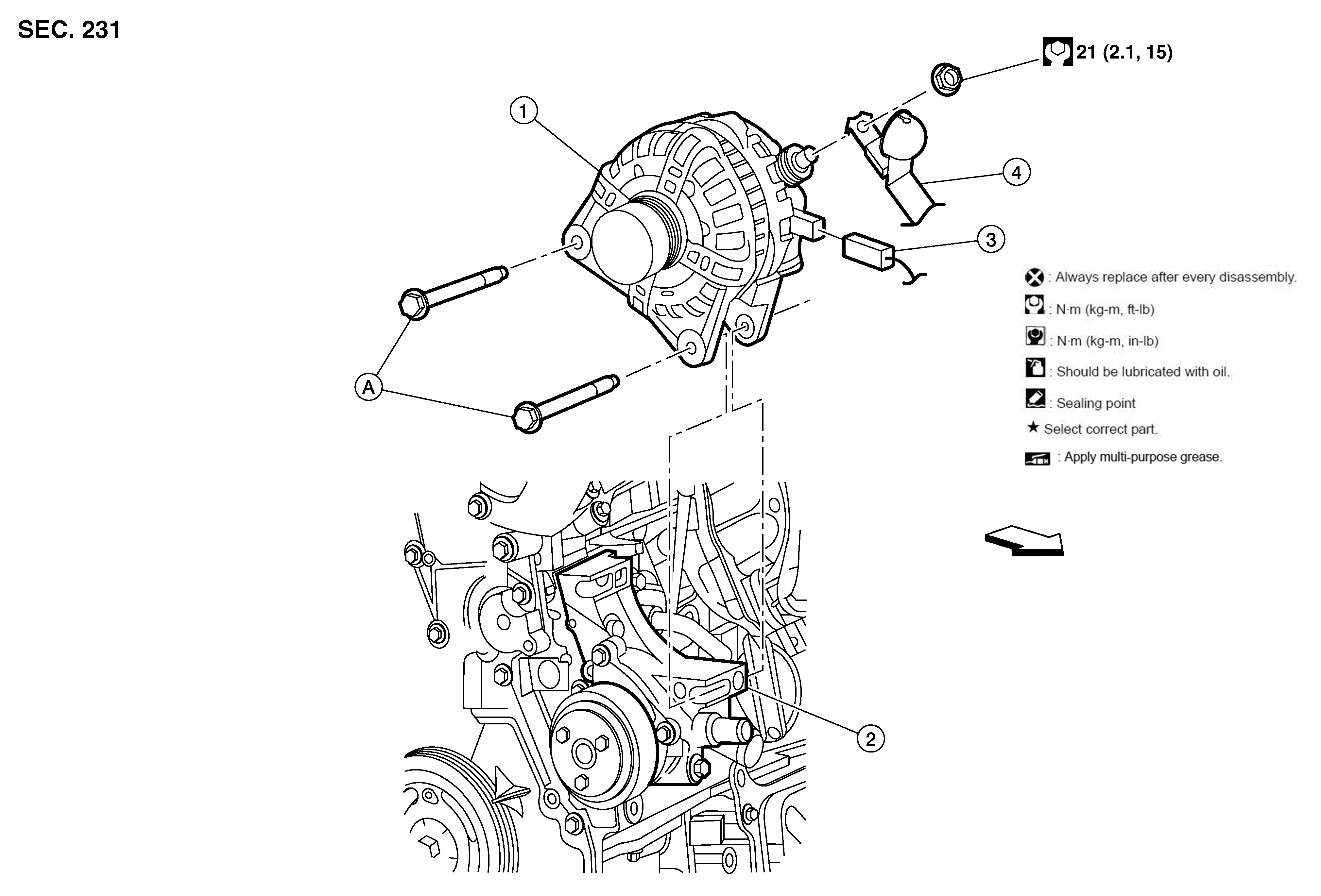

Fig 1: Generator With Torque Specifications
GNSALMIA0625Z-625SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Generator

2.

Water pump housing

3.

Harness connector

4.

"B" terminal harness

A.

Refer to Removal and Installation .

SYMBOL

Front
