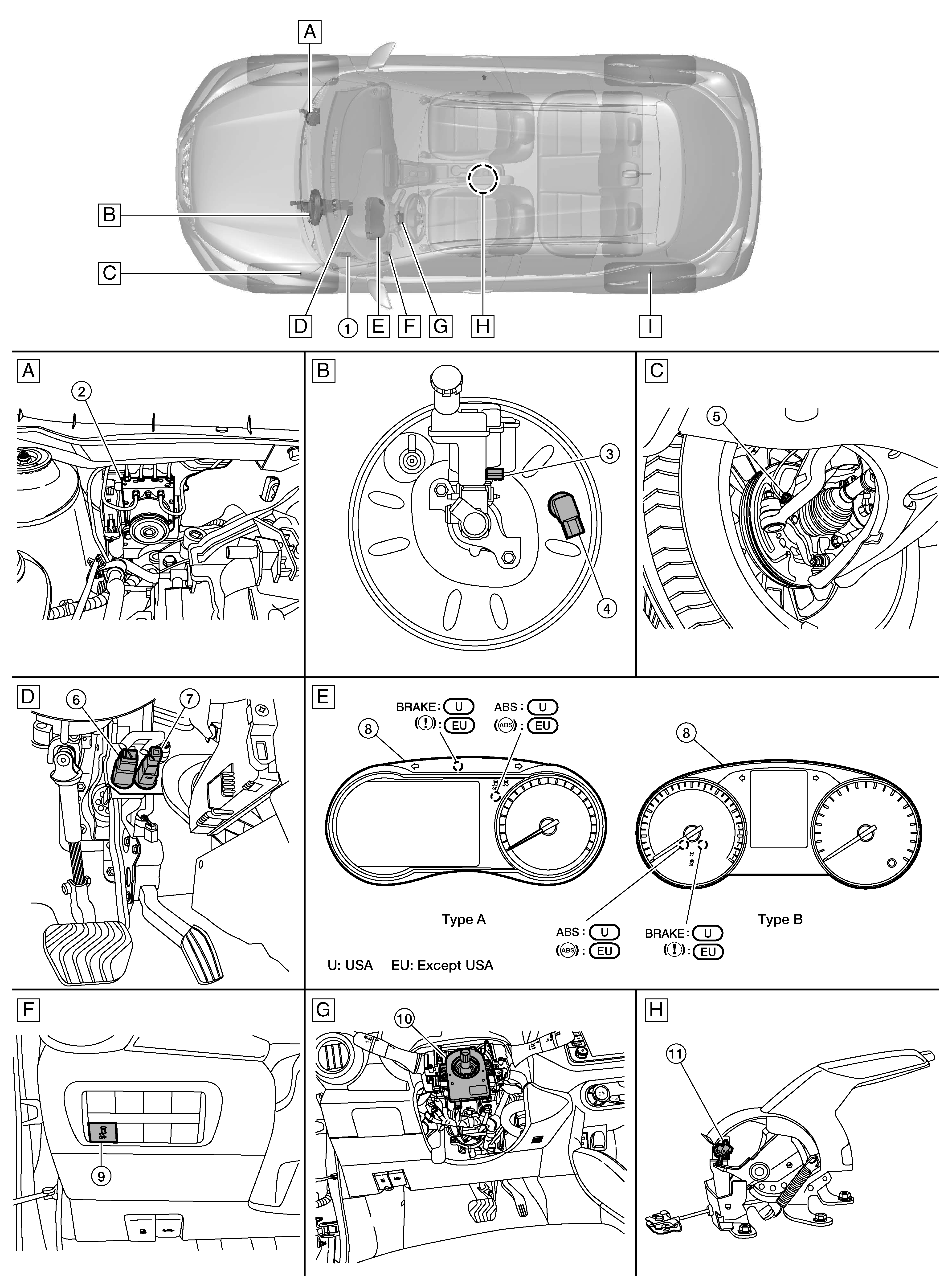

Component Location
|
A. |
RH side of engine compartment |
B. |
LH side of engine compartment |
C. |
Left front wheel area |
|
D. |
Brake pedal area |
E. |
Left side of instrument panel |
F. |
Left side of instrument panel |
|
G. |
Steering column (view with steering wheel removed) |
H. |
Parking brake handle assembly (shown with parking brake handle removed) |

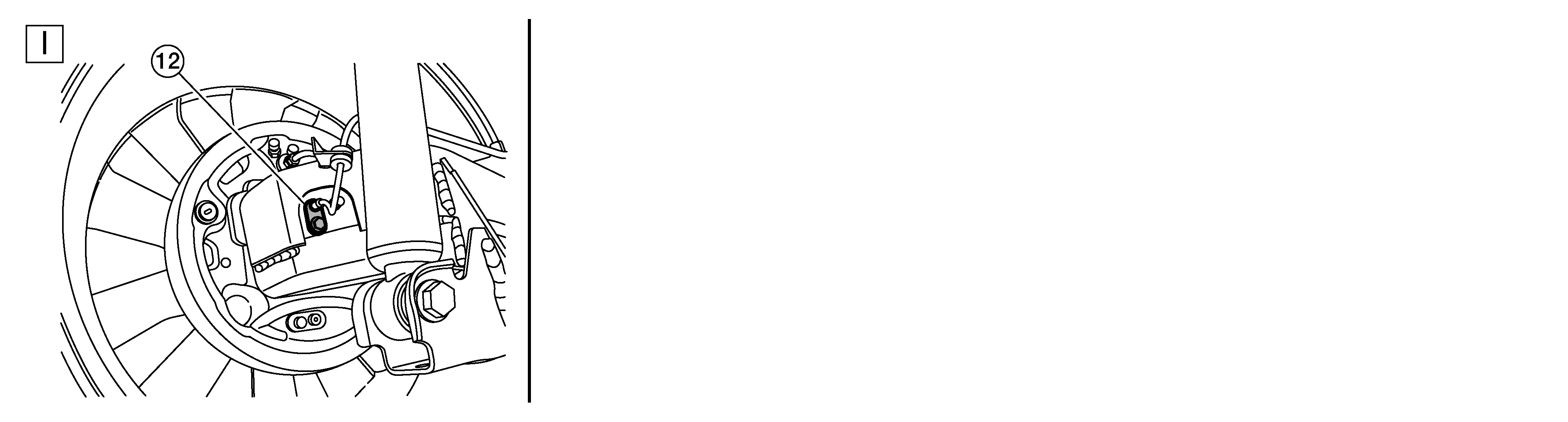

I. |
Left rear wheel area |
|
No. |
Component parts |
Function |
|
1. |
BCM (Body Control Module) |
BCM transmit stop lamp switch signal to ABS actuator and electric unit (control unit). Refer to Component Location for detailed component location. |
|
2. |
ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
|
|
3. |
Brake fluid level switch |
Refer to Brake Fluid Level Switch . |
|
4. |
Vacuum sensor |
Refer to Vacuum Sensor . |
|
5. |
Front wheel sensor LH (RH similar) |
Refer to Wheel Sensor and Sensor Rotor . |
|
6. |
Stop lamp switch |
Refer to Stop Lamp Switch . |
|
7. |
Brake pedal position switch |
Refer to Brake Pedal Position Switch for detailed component location. |
|
8. |
Combination meter |
Refer to Component Location (TYPE A) or Component Location (TYPE B) for detailed component location. |
|
9. |
VDC (Vehicle Dynamic Control) OFF switch (if equipped) |
Refer to VDC OFF Switch . |
|
10. |
Chassis control module (with built-in steering angle sensor) (with Intelligent around view monitor system) |
Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Refer to Chassis Control Module (with built in Steering Angle Sensor) . |
|
Steering angle sensor (without Intelligent around view monitor system) |
Refer to Steering Angle Sensor . |
|
|
11. |
Parking brake switch |
Refer to Parking Brake Switch . |
|
12. |
Rear wheel sensor LH (RH similar) |
Refer to Wheel Sensor and Sensor Rotor . |
