Removal and Installation: Removal

  1. Remove the front passenger seat. Refer to Removal and Installation .

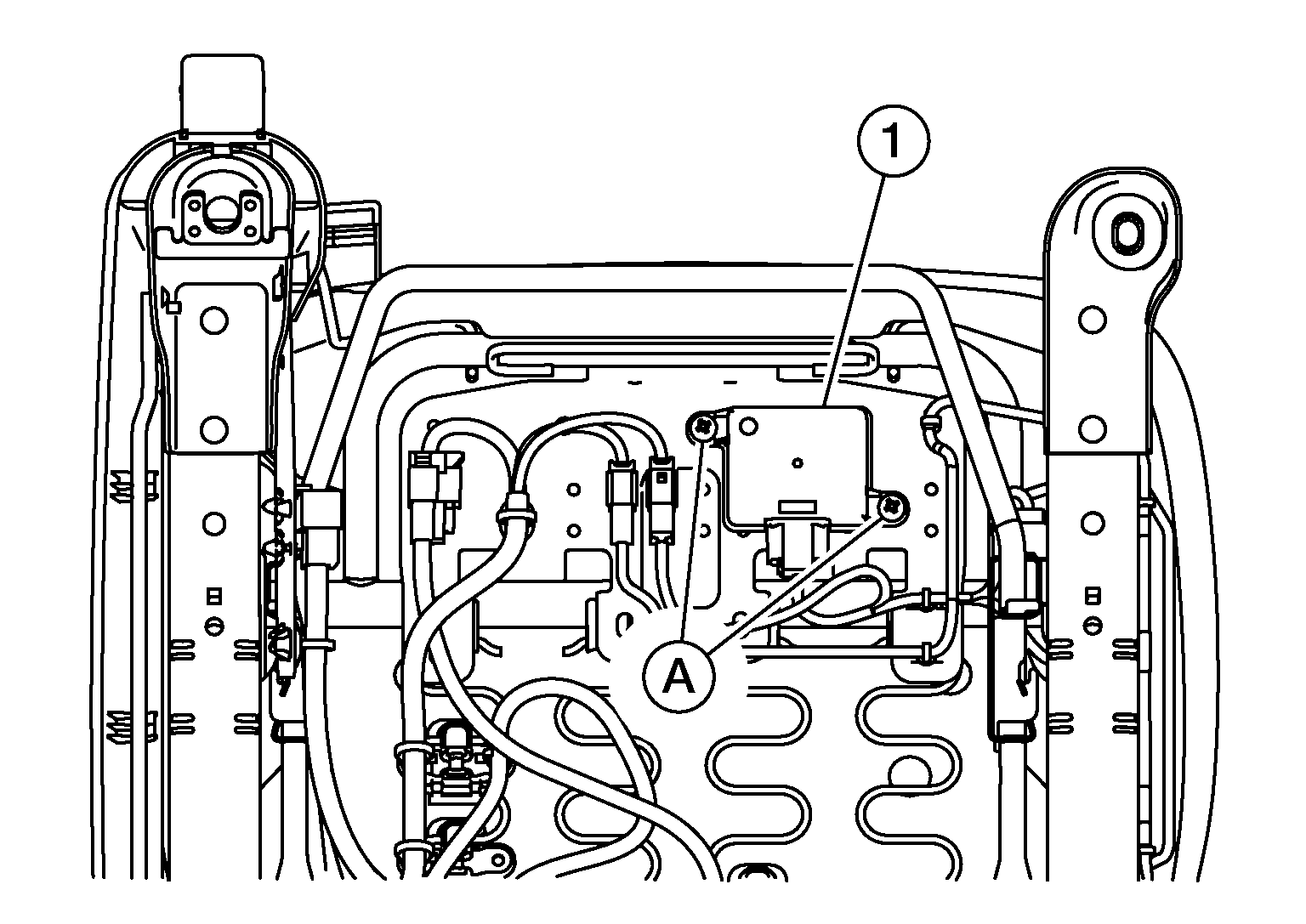

  2. Remove screws (A) and remove the occupant classification system control unit (1).
    GNSDB122924Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Replace the occupant classification control unit if it has been dropped or sustained an impact.
    • Do not strike the occupant classification control unit.
