Exploded View

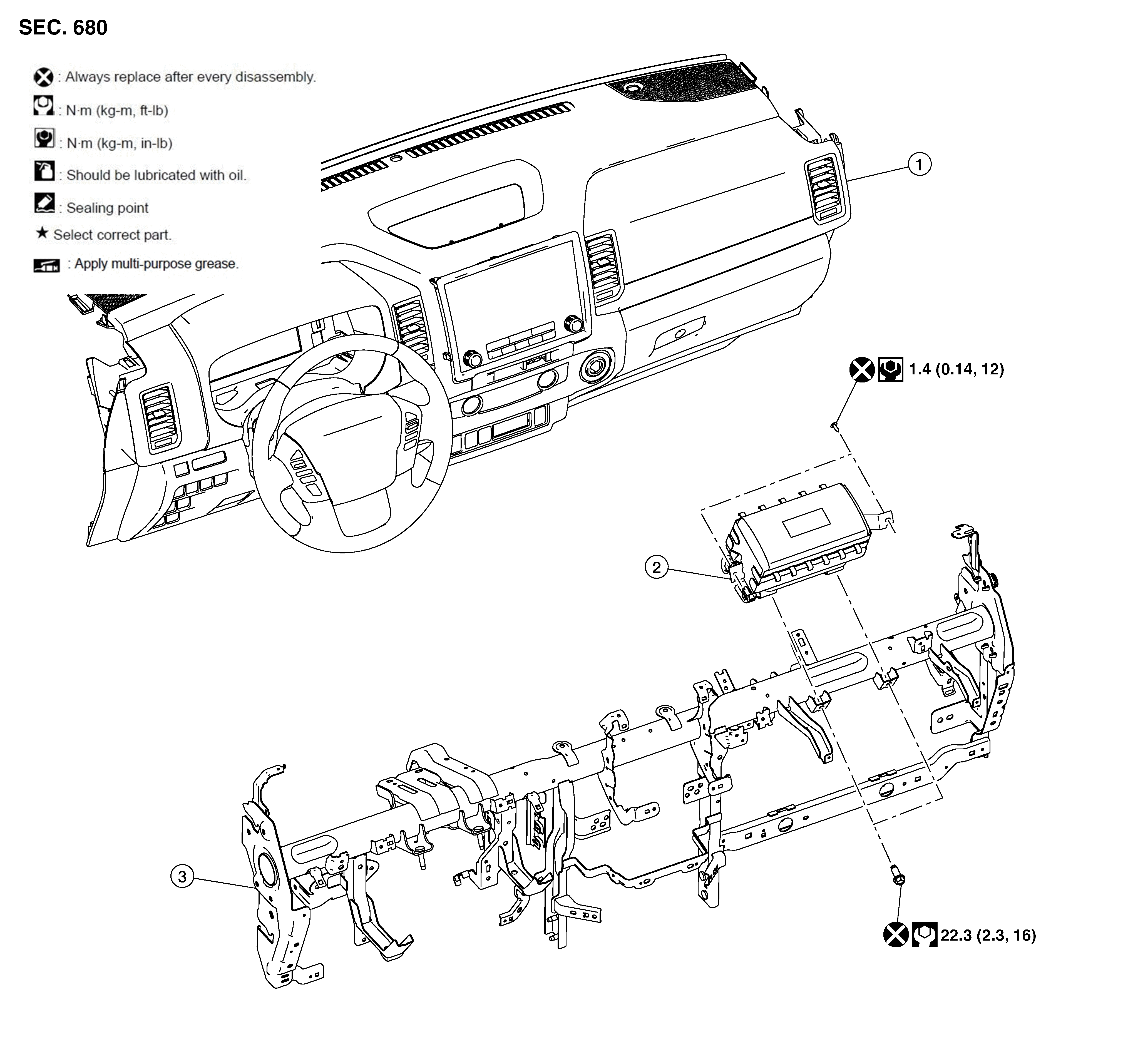

Fig 1: Front Passenger Air Bag Module With Torque Specifications
GNSALHIA0797Z-797Courtesy of NISSAN NORTH AMERICA, INC.

1.

Instrument panel assembly

2.

Front passenger air bag module

3.

Steering member assembly
