Component Location

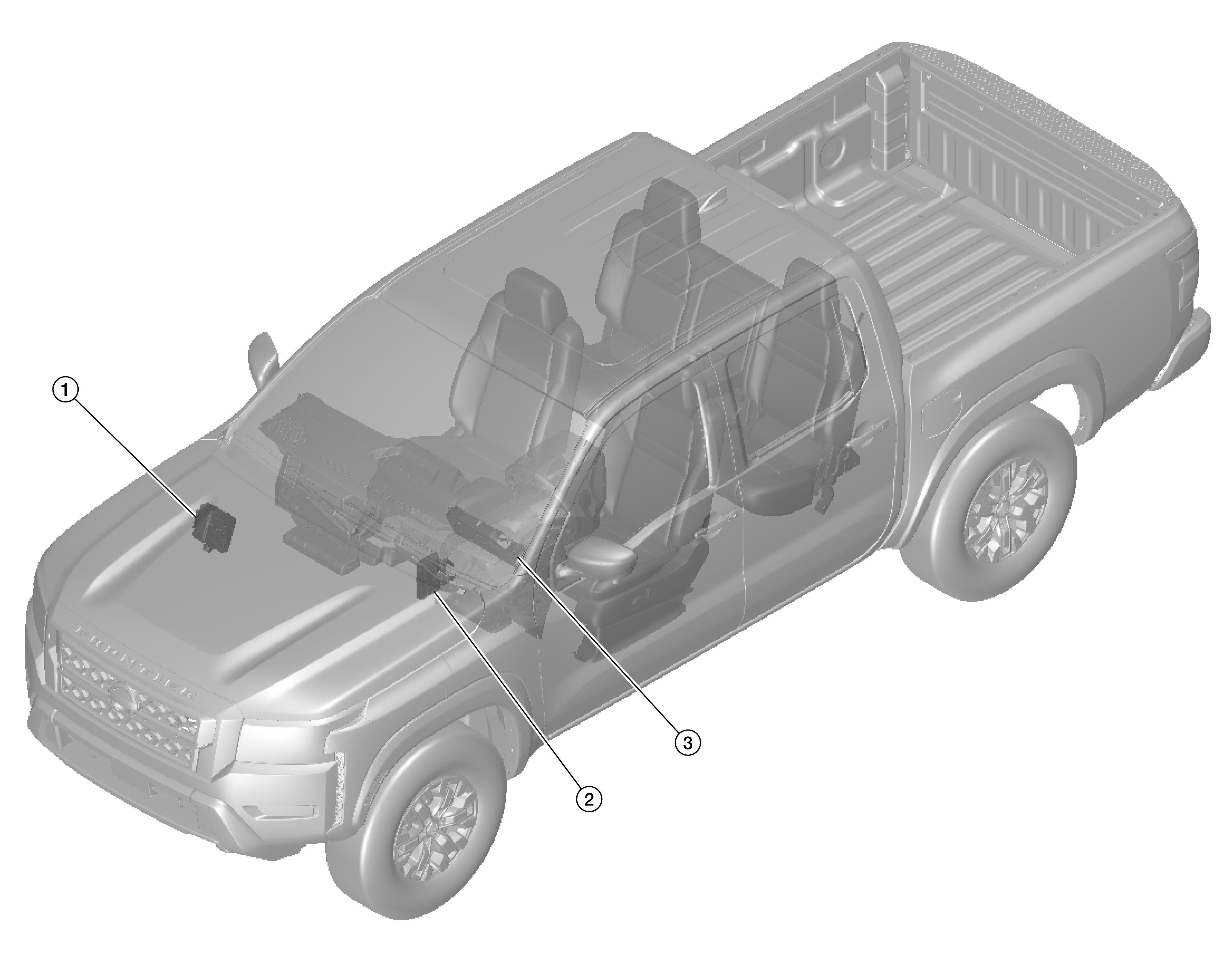

GNSALMIA0533Z-533Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Crew cab shown (King cab ® similar)

No.

Component

Function

1.

IPDM E/R (Intelligent Power Distribution Module Engine Room)

Refer to System Description .

2.

BCM (Body Control Module)
  • BCM incorporates a power consumption control function that reduces the power consumption.
  • BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep request to each unit (IPDM E/R and combination meter) that operates with the ignition switch OFF.

Refer to System Description .

3.

Combination meter

Refer to Combination Meter for detailed component location.
