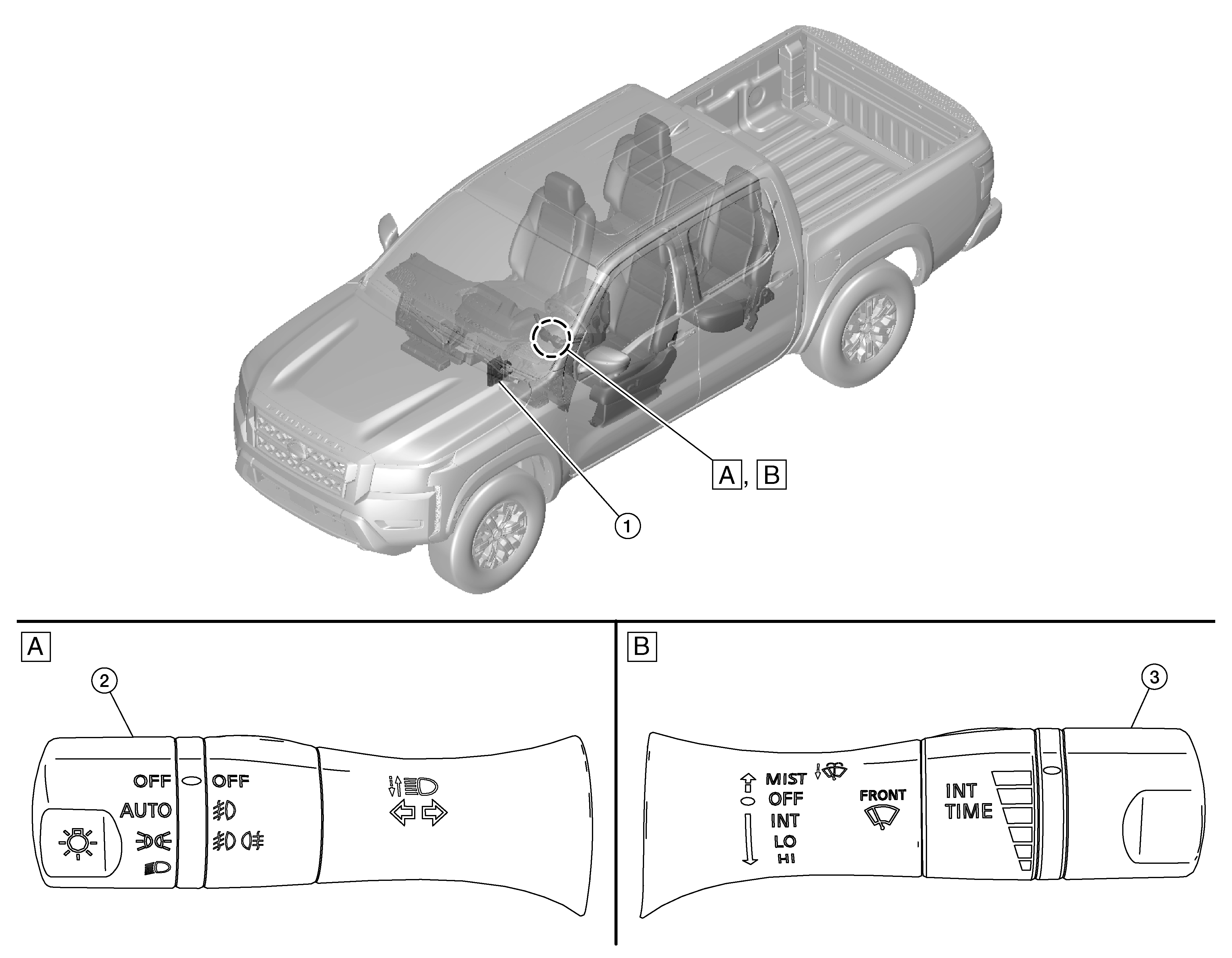

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Crew cab shown (King cab ^® similar)

Combination switch (lighting and turn signal)

(with front fog lamps shown, without front fog lamps similar)

Combination switch (wiper and washer switch)

No.	Component	Function
1.	BCM (Body Control Module)	Refer to System Description .
2.	Combination switch (lighting and turn signal)	Refer to System Description .
3.	Combination switch (wiper and washer switch)	Refer to System Description .
