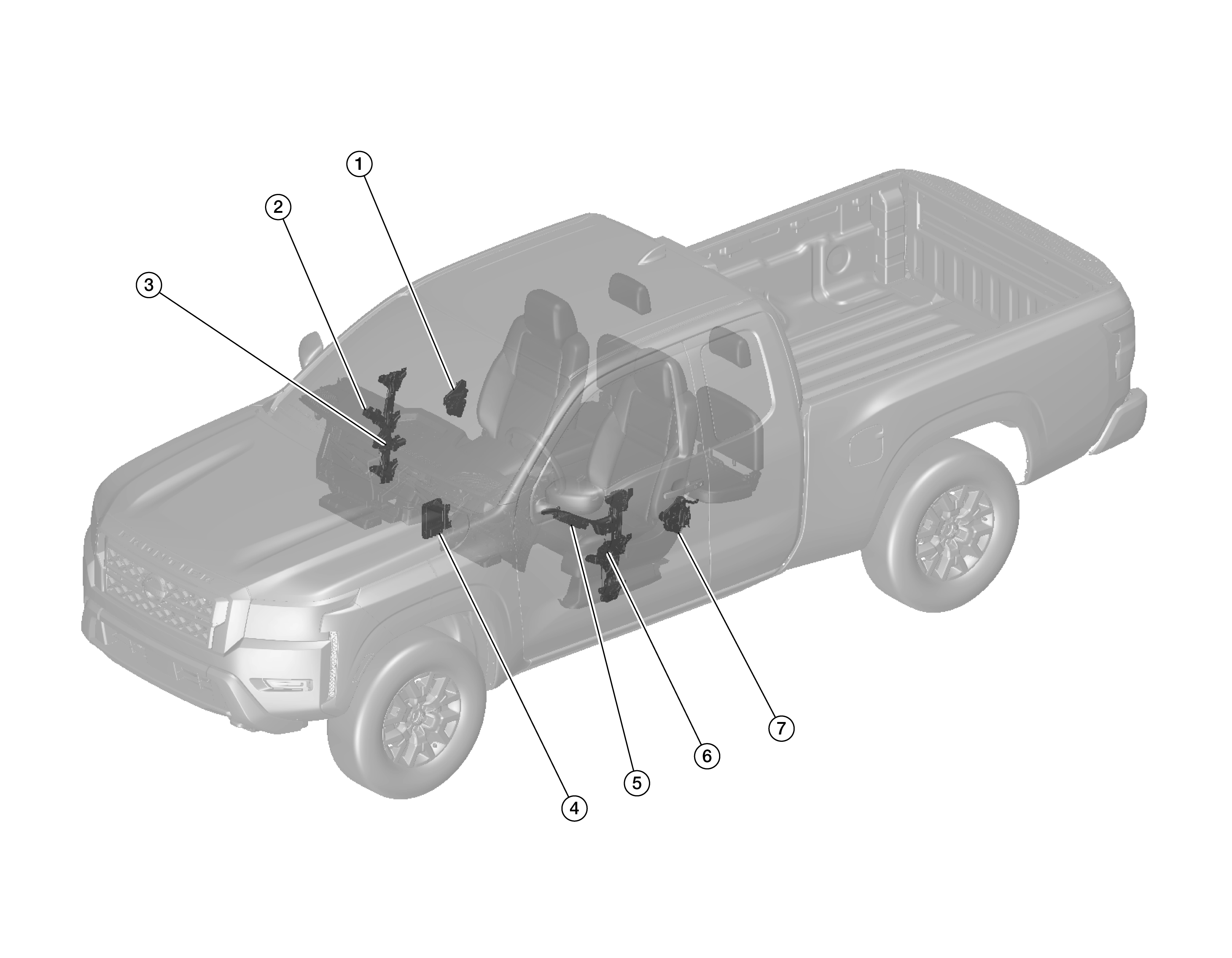

Component Location - King Cab

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Front door lock assembly RH (door switch)	Refer to Removal and Installation .
2.	Power window and door lock/unlock switch RH	Refer to Power Window And Door Lock/Unlock Switch RH .
3.	Front power window motor RH	Refer to Front Power Window Motor .
4.	BCM (Body Control Module)	Supplies power to the window switches. Controls retained power. Refer to Component Location for detailed component location.
5.	Main power window and door lock/unlock switch	Refer to Main Power Window and Door Lock/unlock Switch .
6.	Front power window motor LH	Refer to Front Power Window Motor .
7.	Front door lock assembly LH (door switch)	Refer to Removal and Installation .
