Component Location

WARNING: This page is about a different car, the 2022 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

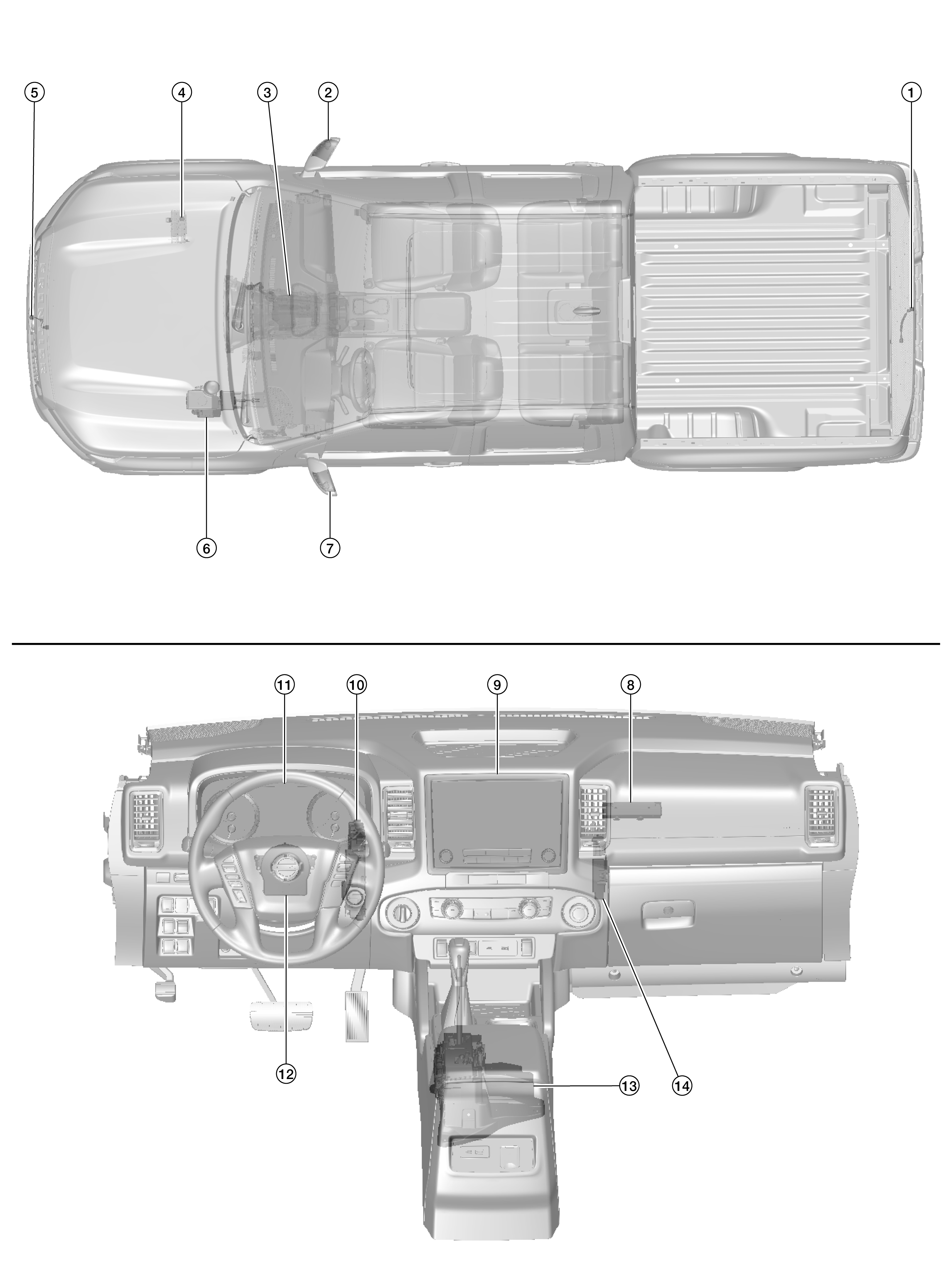

No.	Component	Function
1.	Rear camera	Refer to Rear Camera .
2.	Door mirror RH (side camera)	Refer to Side Camera .
3.	A/T assembly [TCM (Transmission Control Module)]	Provides around view monitor control unit with the following signals via CAN communication: Transmission range indication signal. Tow mode indicator request signal.
4.	Back-up lamp relay	Provides the reverse signal to the around view monitor control unit and AV control unit.
5.	Front camera	Refer to Front Camera .
6.	ABS (Anti-lock Braking System) actuator and electric unit (control unit)	Provides around view monitor control unit with the wheel speed signals via CAN communication.
7.	Door mirror LH (side camera)	Refer to Side Camera .
8.	Around view monitor control unit	Refer to Around View Monitor Control Unit .
9.	AV control unit	Provides around view monitor control unit with the following signals via CAN communication: Camera switch press signal. Camera OFF request signal. MOD switch press signal.
10.	BCM (Body Control Module)	Provides around view monitor control unit with the following signals via CAN communication: Door switches state signal. Trailer presence signal.
11.	Combination meter	Provides around view monitor control unit with the following signals via CAN communication: Setting change request signal. Handbrake switch signal.
12.	Steering angle sensor	Refer to Steering Angle Sensor .
13.	A/T shift selector	Provides the ground signal for the back-up lamp relay coil.
14.	Sonar control unit	Provides around view monitor control unit with the following signals via CAN communication: Sonar display request status signal. Sonar system mode status signal.
