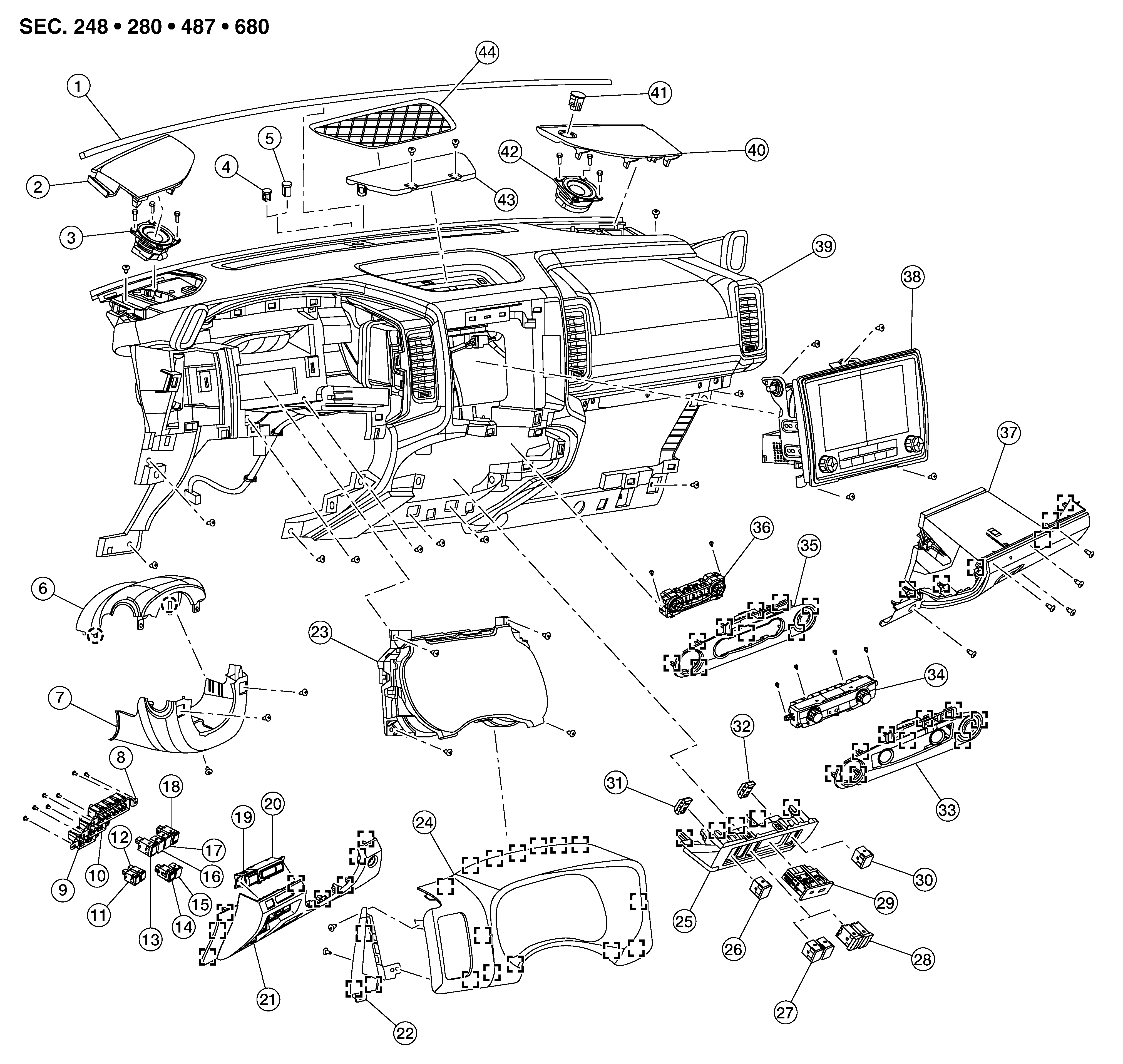

Exploded View
|
1. |
Instrument panel center seal |
2. |
Front speaker grille LH |
3. |
Front speaker LH |
|
4. |
Sunload sensor |
5. |
Mask |
6. |
Steering column upper cover |
|
7. |
Steering column lower cover |
8. |
Upper switch carrier |
9. |
Lower switch carrier |
|
10. |
Middle switch carrier |
11. |
VDC off switch |
12. |
Differential lock mode switch (if equipped) |
|
13. |
Safety driving assist |
14. |
Cargo lamp switch |
15. |
Cargo lamp switch |
|
15. |
Hill descent control switch (if equipped) |
16. |
Mask |
17. |
Mask |
|
18. |
AC 120V outlet main switch |
19. |
Tow mode switch |
20. |
Meter display switch |
|
21. |
Instrument lower panel LH |
22. |
Instrument side finisher LH |
23 |
Combination meter |
|
24. |
Cluster lid A |
25. |
Cluster lid C lower |
26. |
Mask |
|
27. |
Mask |
28. |
Sonar system off switch |
29. |
Front auxiliary input jacks |
|
30. |
Mask |
31. |
Front heated seat switch LH |
32. |
Front heated seat switch RH |
|
33. |
Cluster lid C (with Automatic air conditioner) |
34. |
A/C switch assembly (with Automatic air conditioner) |
35. |
Cluster lid C (with Manual air conditioner) |
|
36. |
Front air control (with Manual air conditioner) |
37. |
Glove box assembly |
38. |
AV control unit |
|
39. |
Instrument panel assembly |
40. |
Front speaker grille RH |
41. |
Optical sensor |
|
42. |
Front speaker RH |
43. |
Cluster cover plate |
44. |
Cluster cover mat |
|
|
Metal clip |
|
Pawl |
