Removal & Installation: Installation

Installation is in the reverse order of removal.

• Install O-ring to fuel tank.
  CAUTION:

  • Do not reuse O-ring.
  • Do not bend float arm during installation.

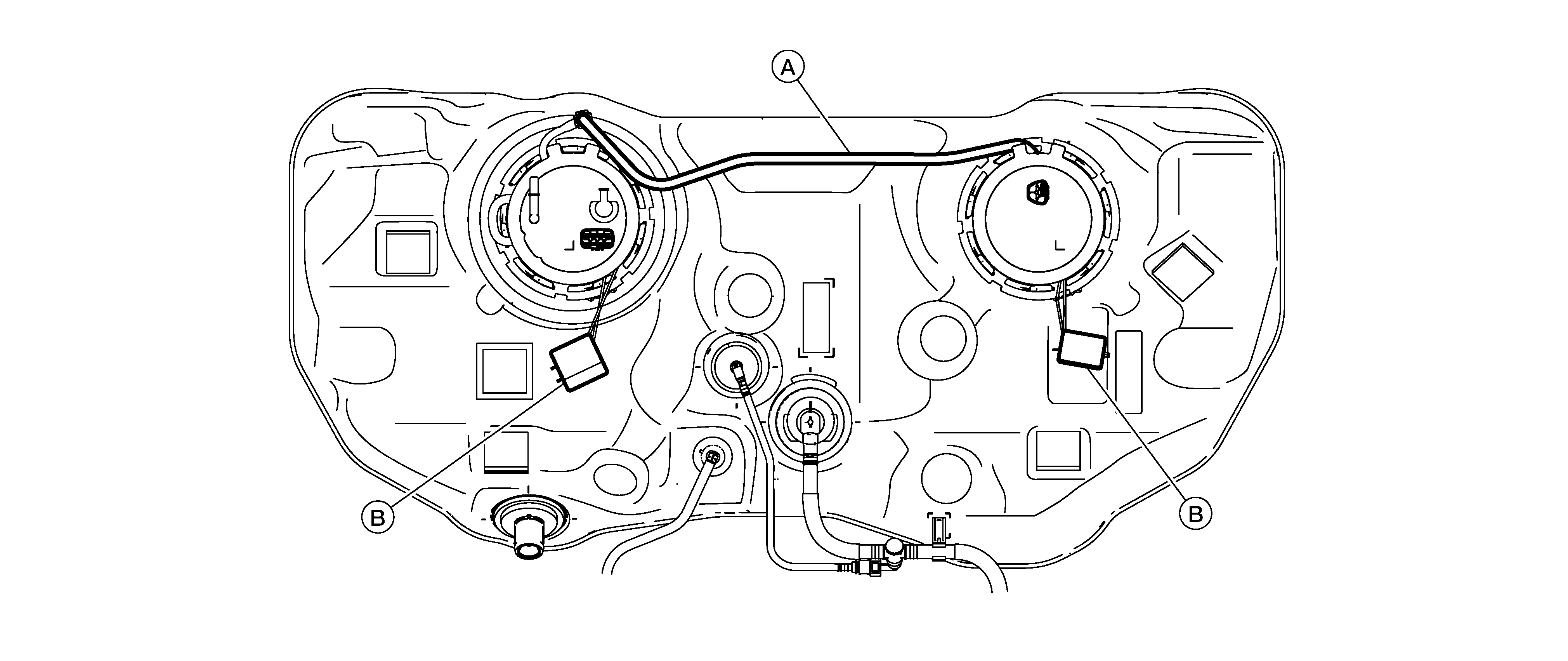

  • To install, fuel tube (A) must be routed as shown to avoid interference with float arms (B).

    Courtesy of NISSAN NORTH AMERICA, INC.

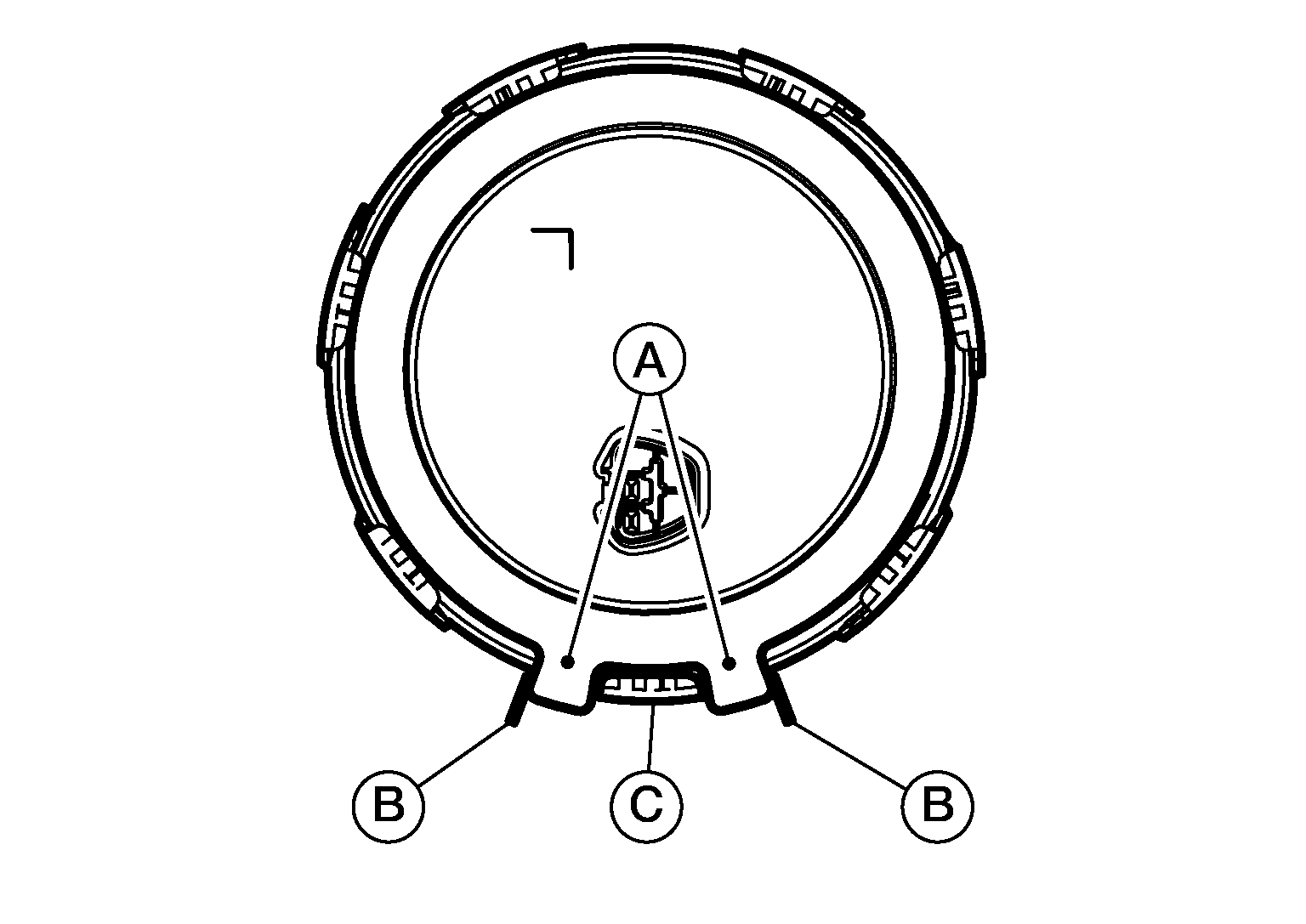

• Align tabs (A) of the fuel level sensor unit (sub) with retainer pawl (C).

  Courtesy of NISSAN NORTH AMERICA, INC.

  (B)	: Matching mark

• Check the connection for damage or any foreign materials.
• Align the connector with the tube, then insert the connector straight into the tube until a "click" sound is heard.
• After connecting, check that the connection is secured with following procedures.
  • Visually confirm that the two tabs are connected to the connector.

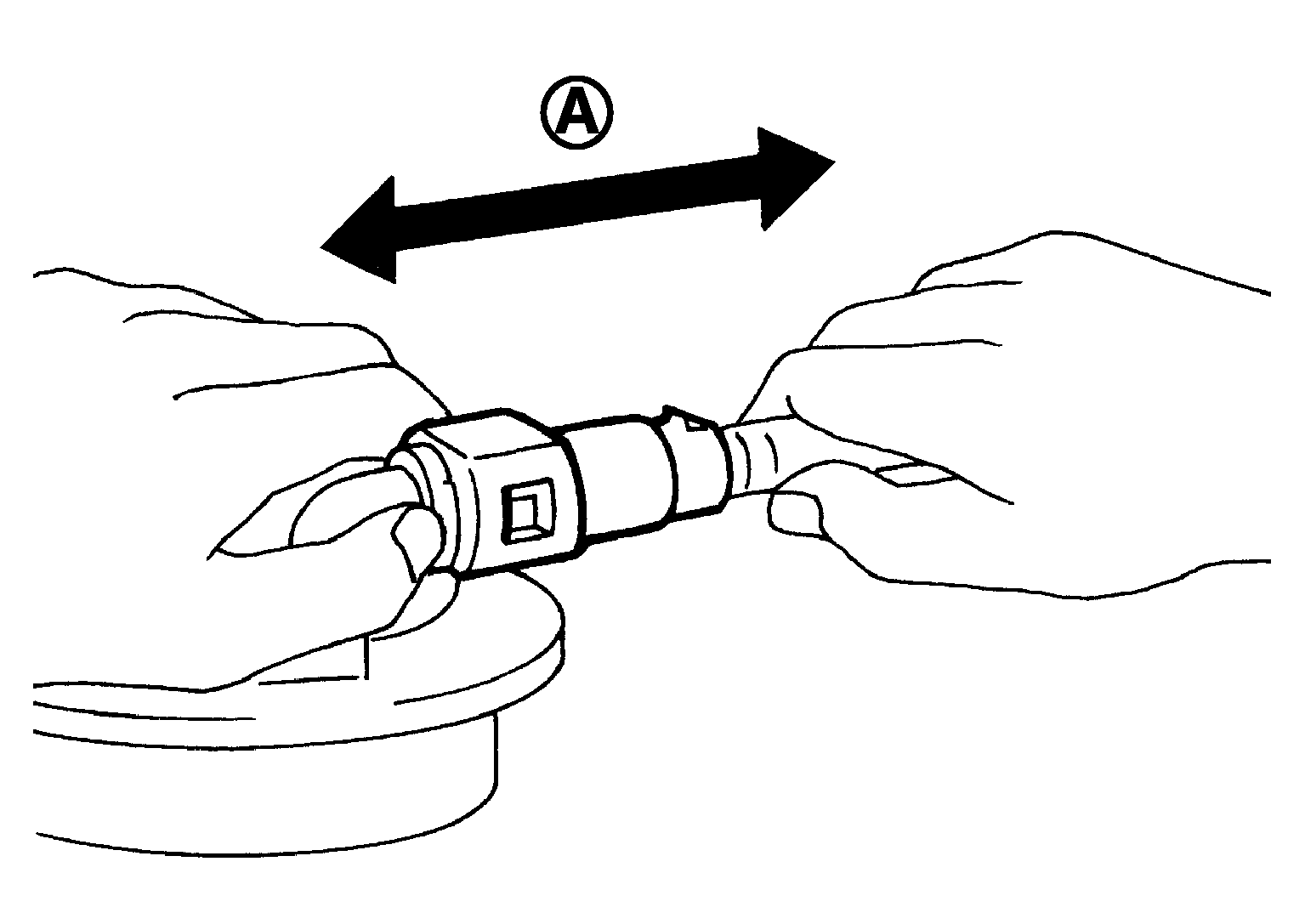

  • Pull (A) the tube and the connector to check that they are securely connected.

    Courtesy of NISSAN NORTH AMERICA, INC.

• Before installing inspection hole cover, check that the connecting part has no fuel leaks. Refer to Inspection .
• Install inspection hole cover with the front mark (arrow) facing front.
• Lock inspection hole cover clips by turning 90 deg..
