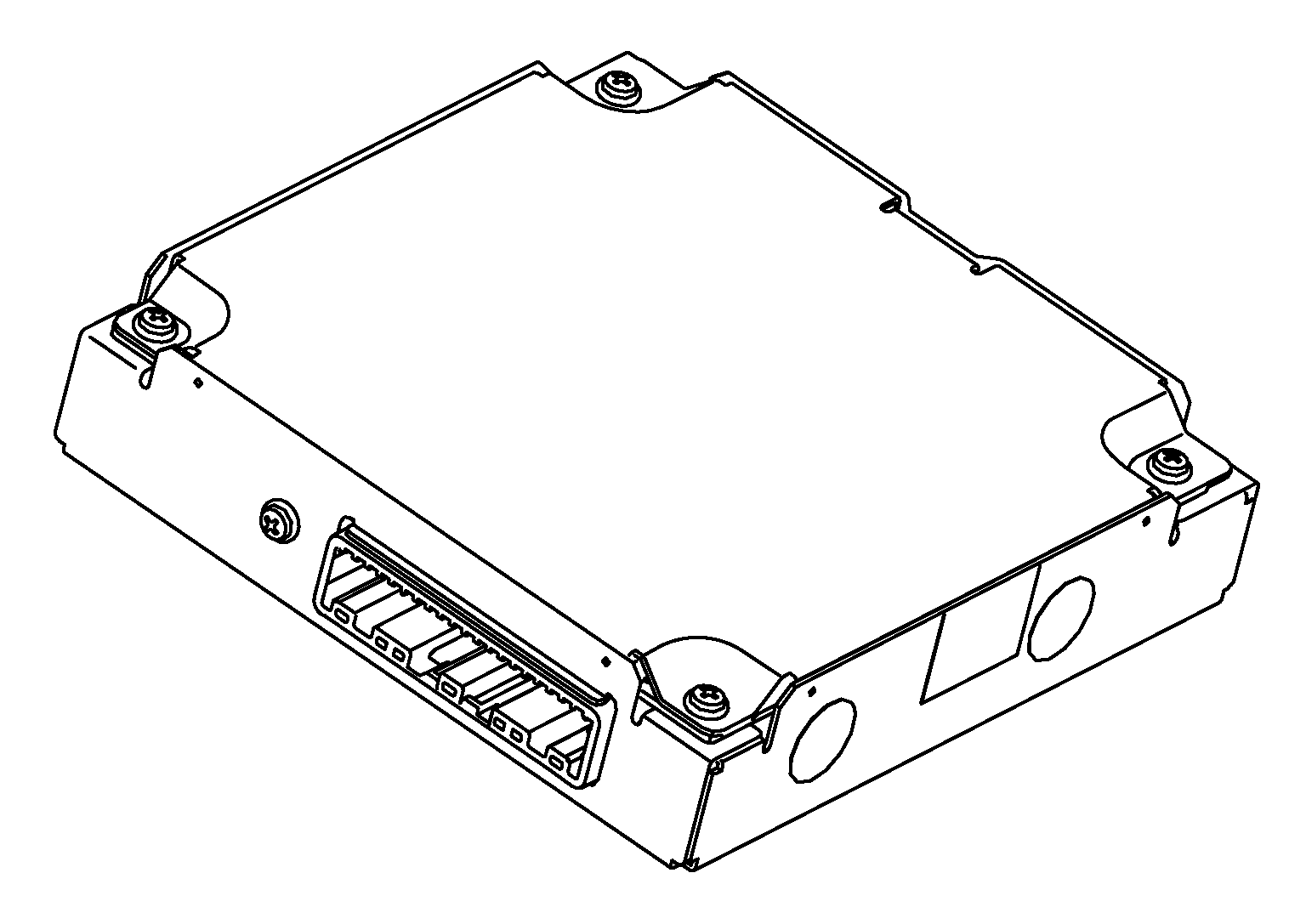

Around View Monitor Control Unit
WARNING: This page is about a different car, the 2022 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
- The around view monitor control unit is installed behind the instrument panel.
- Necessary signals are transmitted/received to/from the around view monitor control unit via CAN communication.
- Camera image signals received from each camera are converted/synthesized in the around view monitor control unit and transmitted to the AV control unit.
- Vehicle width guide lines, predicted course line, vehicle front guiding line and vehicle side line, tire icon, and vehicle icon are rendered with the around view monitor control unit and combined with camera image.
