Exploded View

WARNING: This page is about a different car, the 2022 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

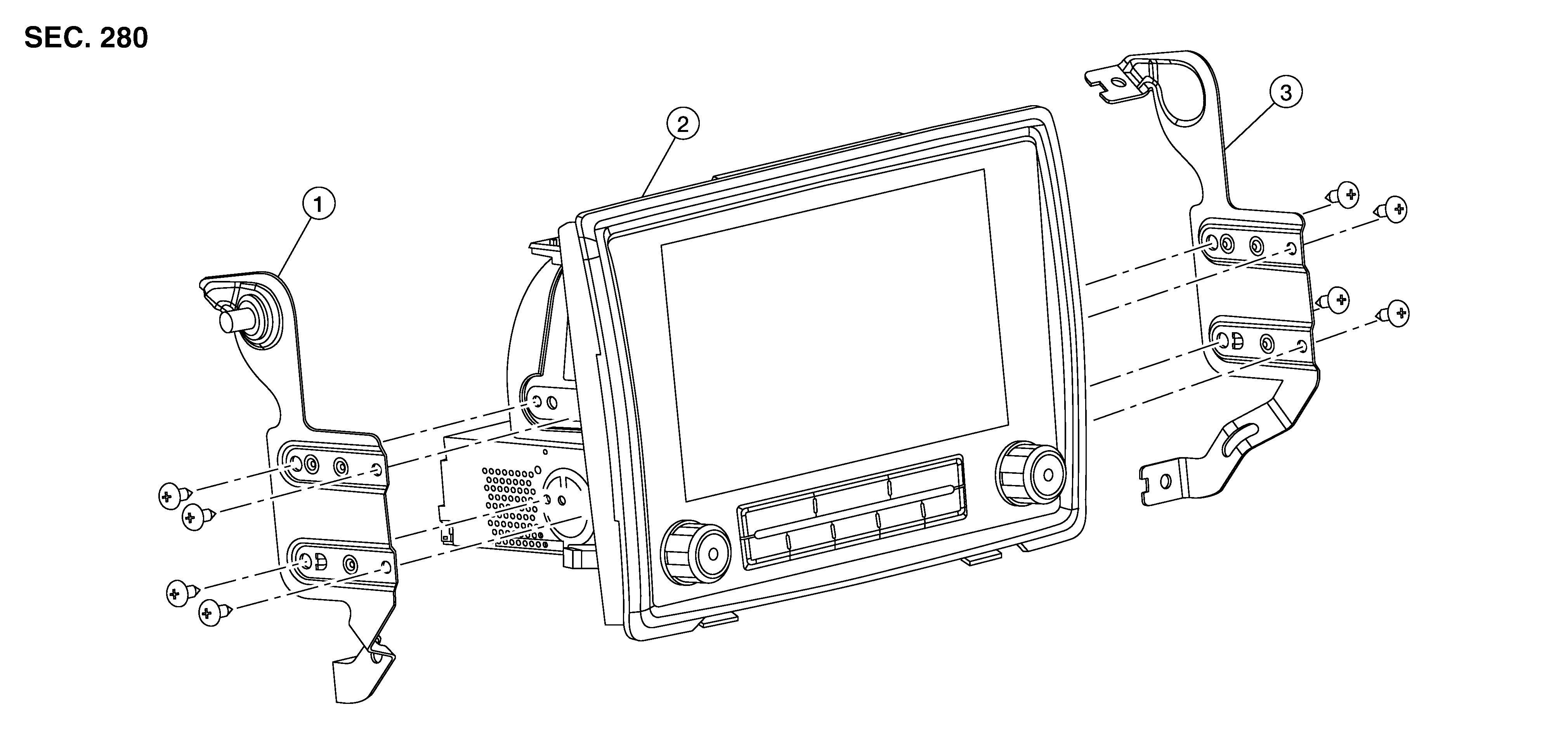

GNSALNIA0920Z-920Courtesy of NISSAN NORTH AMERICA, INC.

1.

AV control unit bracket (LH)

2.

AV control unit

3.

AV control unit bracket (RH)
