Home >> Nissan-Datsun >> 2021 >> Versa SV >> Repair and Diagnosis >> Suspension >> Front Suspension >> Removal And Installation >> Transverse Link >> Exploded View

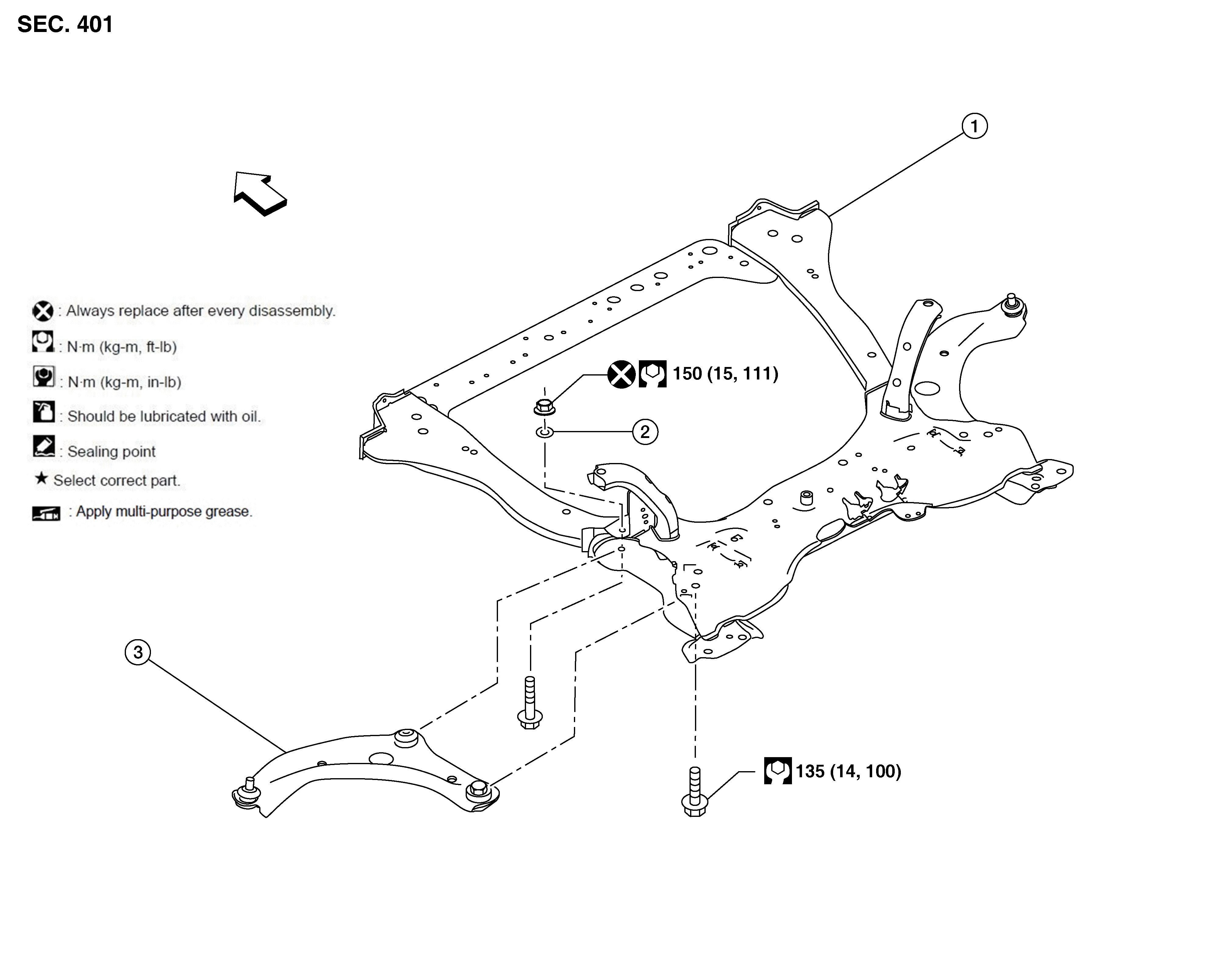

Exploded View

GNSAWEIA0186Z-186Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member

2.

Washer

3.

Transverse link

SYMBOL

Front
