Exploded View

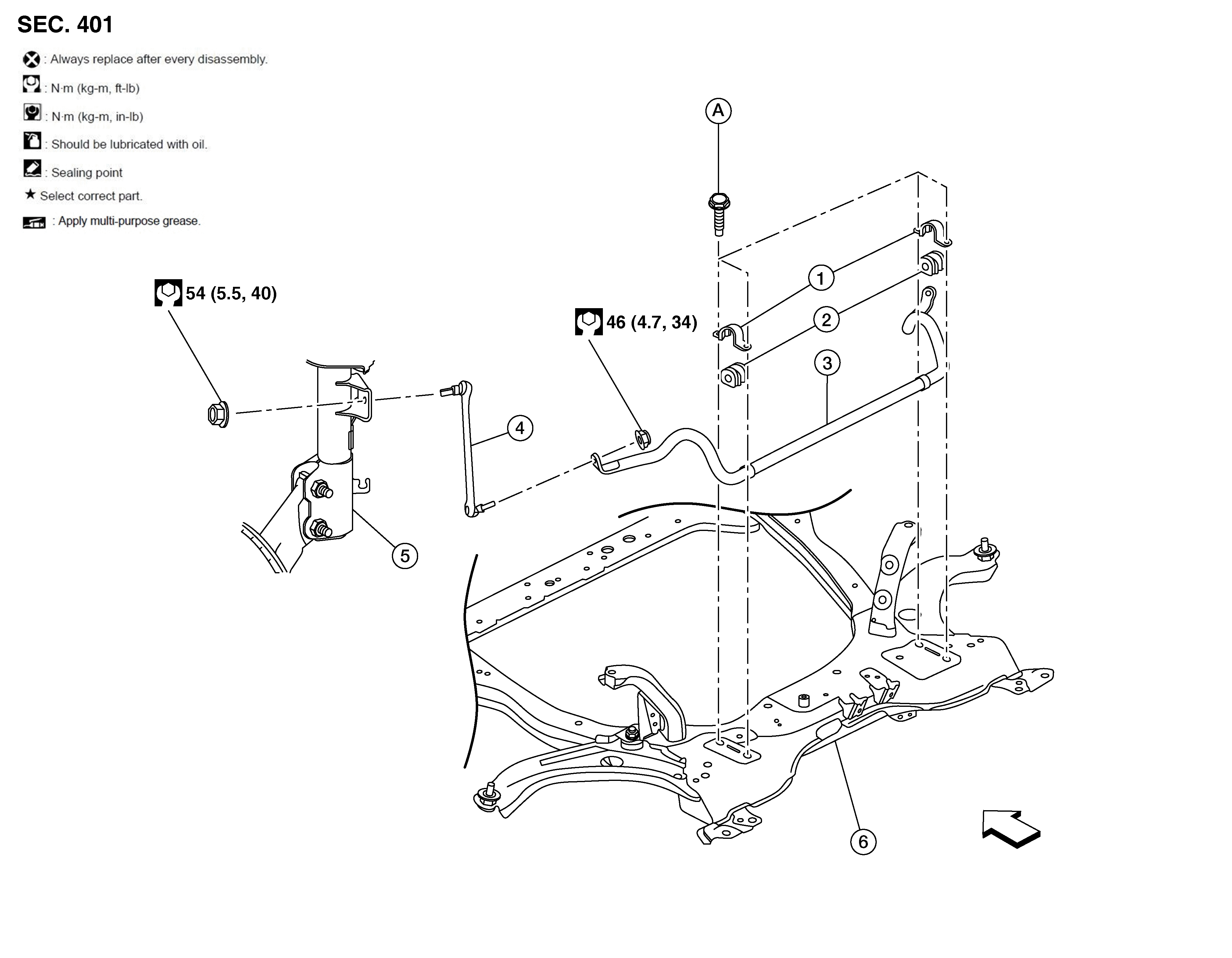

Fig 1: Front Stabilizer With Torque Specifications
GNSAWEIA0187Z-187Courtesy of NISSAN NORTH AMERICA, INC.

1.

Stabilizer bar clamp

2.

Stabilizer bar bushing

3.

Stabilizer bar

4.

Stabilizer bar connecting rod

5.

Strut

6.

Front suspension member

A.

Refer to Removal and Installation .

SYMBOL

Front
