Checking Front Wheel Turning Angle

Perform toe-in inspection. Refer to Inspection .
CAUTION: Perform front wheel turning angle inspection after toe-in inspection.
Place front wheels on turning radius gauges and rear wheels on stands so that vehicle can be level.

Courtesy of NISSAN NORTH AMERICA, INC.

Check maximum inner and outer wheel turning angles for LH and RH wheels.

With engine at idle, turn steering wheel from full left stop to full right stop and measure turning angles.

Courtesy of NISSAN NORTH AMERICA, INC.

Outer Wheel Angle (A)	: Refer to Steering Angle .
Inner Wheel Angle (B)	: Refer to Steering Angle .

Check following items when turning angle is outside of specifications.

Courtesy of NISSAN NORTH AMERICA, INC.

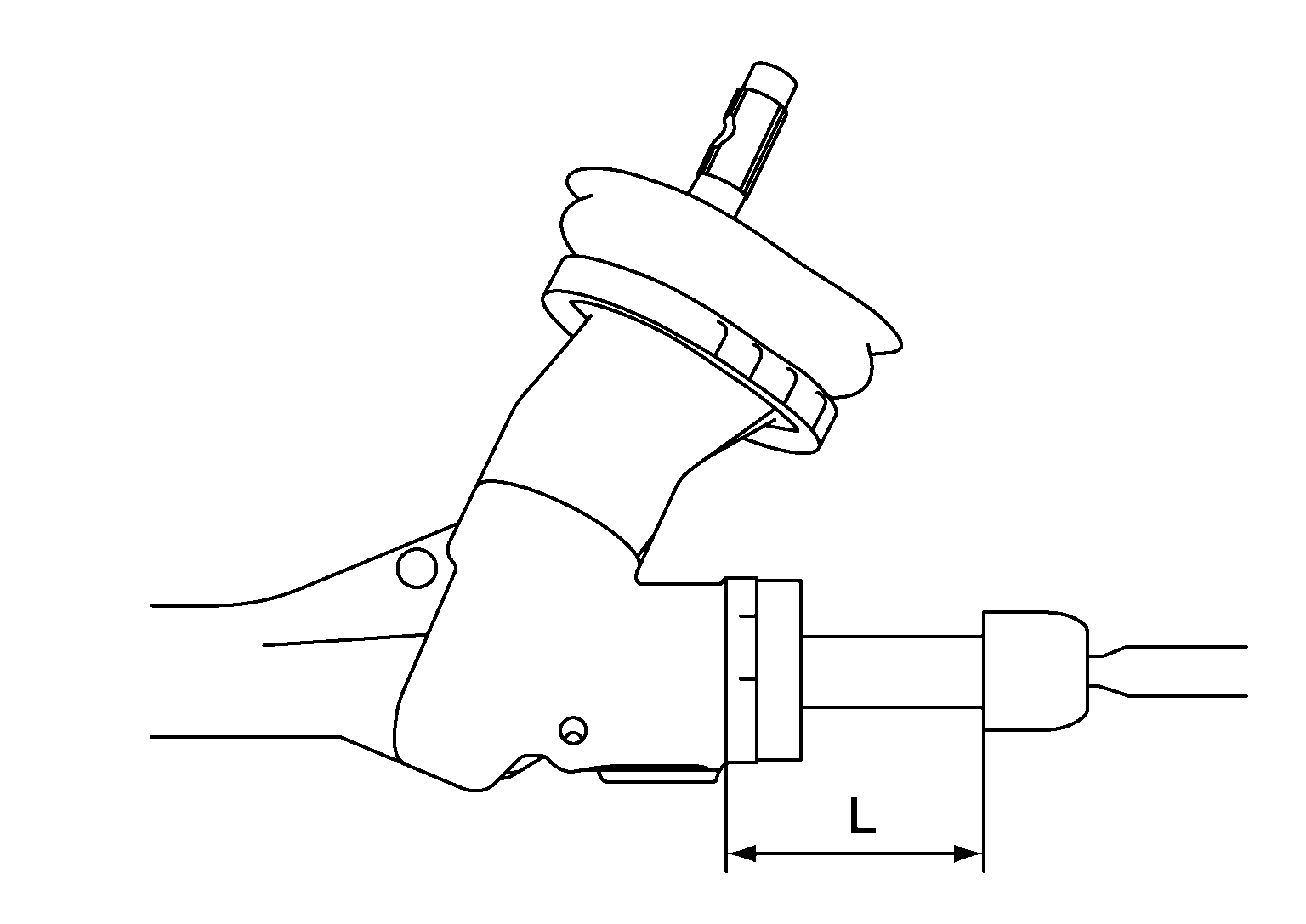

Check neutral position of rack stroke (L).

Rack stroke in neutral position (L)

: Refer to Rack Stroke .

Check steering gear, steering column and front suspension components for wear or damage if any of the turning angles are outside of specifications. Replace worn or damaged components as required.
NOTE: Wheel turning angles are not adjustable.
