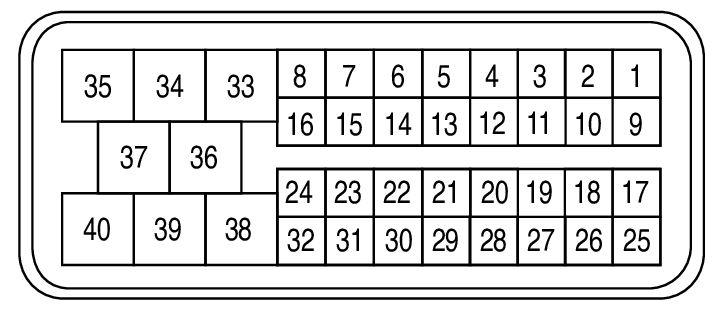

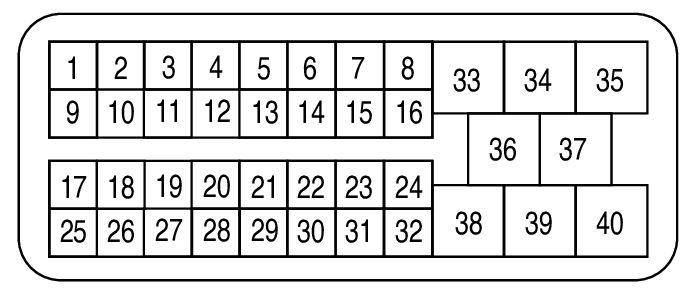

Electric Intake Valve Timing Control Module Connector End View (F70)
Connector Types: AAA32FB-AHY8-LV-RH
Connector Color: BLACK
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | O/L | SENS SUPPLY |
| 2 | W/L | SIGNAL3 C |
| 3 | L/G | SENS TEMP |
| 4 | - | - |
| 5 | - | - |
| 6 | GR | VTC CAN-H |
| 7 | - | - |
| 8 | B | CAM SIGNAL |
| 9 | O | SIGNAL2 B |
| 10 | W | SIGNAL1 A |
| 11 | L/Y | SENS GND |
| 12 | - | - |
| 13 | R | VTC CAN-L |
| 14 | - | - |
| 15 | L | IGNSW |
| 16 | W | CRANK SIGNAL |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | - | - |
| 28 | - | - |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
| 33 | R | PHASE1 U |
| 34 | B | PHASE2 V |
| 35 | W | PHASE3 W |
| 36 | B | GND |
| 37 | W | VBR |
| 38 | - | - |
| 39 | - | - |
| 40 | - | - |
