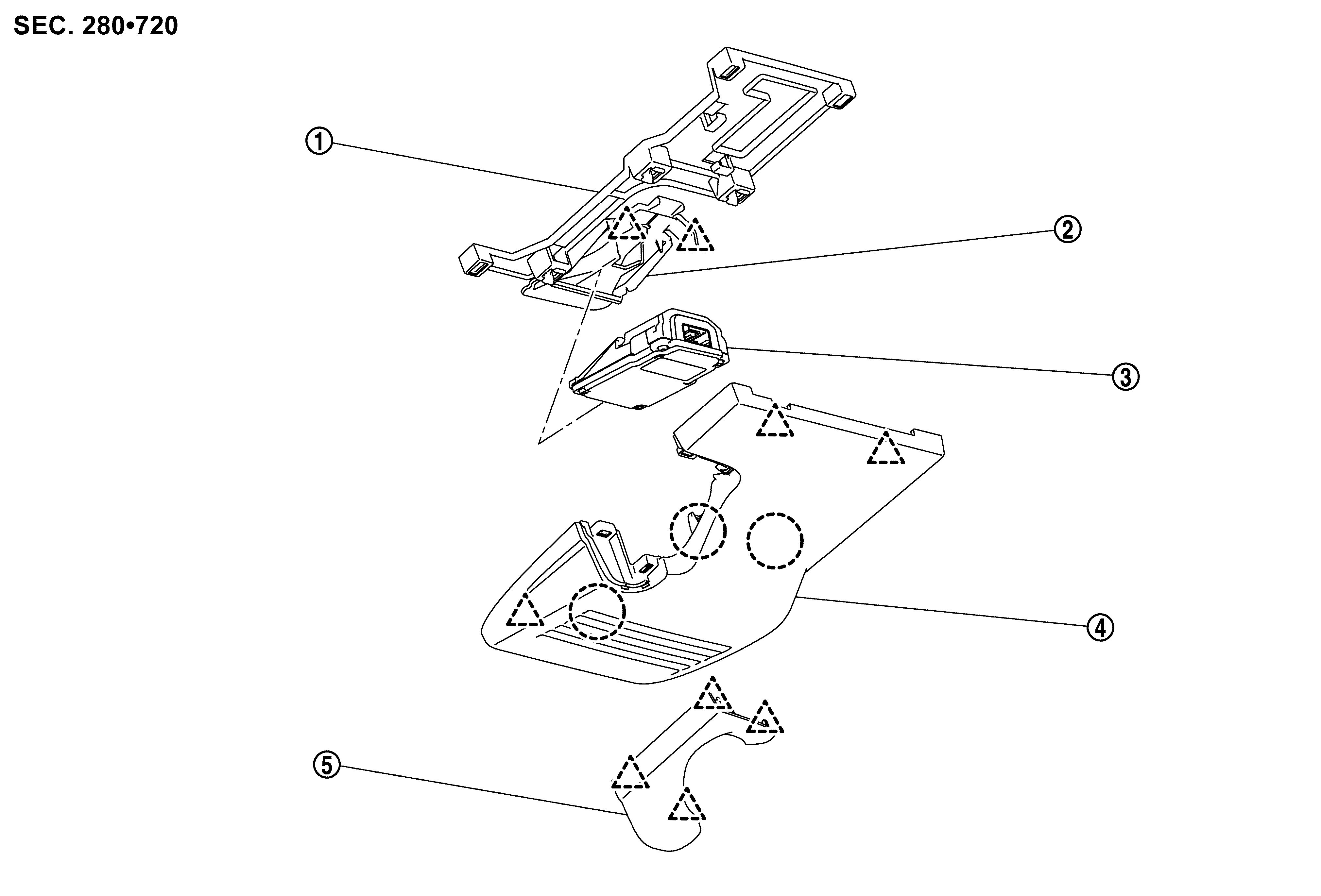

Exploded View
CAUTION:
- Never remove the lane camera unit bracket and the lane camera unit cover bracket from windshield glass.
- The lane camera unit bracket and the lane camera unit cover bracket must be replaced together with windshield glass as an assembly.
- Before replacing lane camera unit, perform "Read/Write Configuration" to save or print current vehicle specification. For details, refer to Description .
|
1. |
Front camera unit cover bracket |
2. |
Front camera unit bracket |
3. |
Front camera unit |
|
4. |
Front camera cover 1 |
5. |
Front camera cover 2 |
||
|
|
: Pawl |
|
: Clip |
