Exploded View

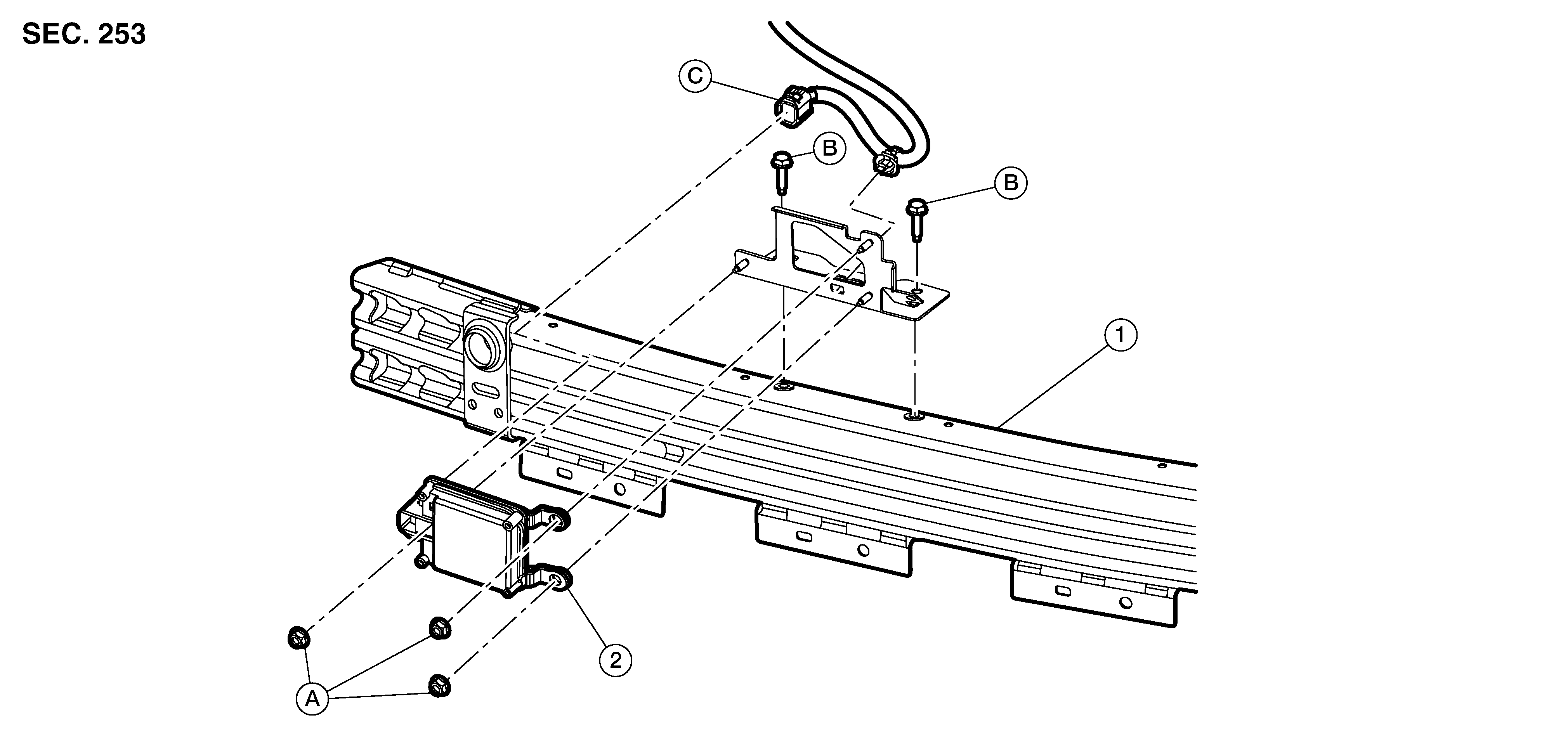

GNSALOIA0389Z-389Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front bumper reinforcement

2.

Distance sensor

3.

Distance sensor bracket

A.

Refer to Installation .

B.

Refer to Installation .

C.

Harness connector
