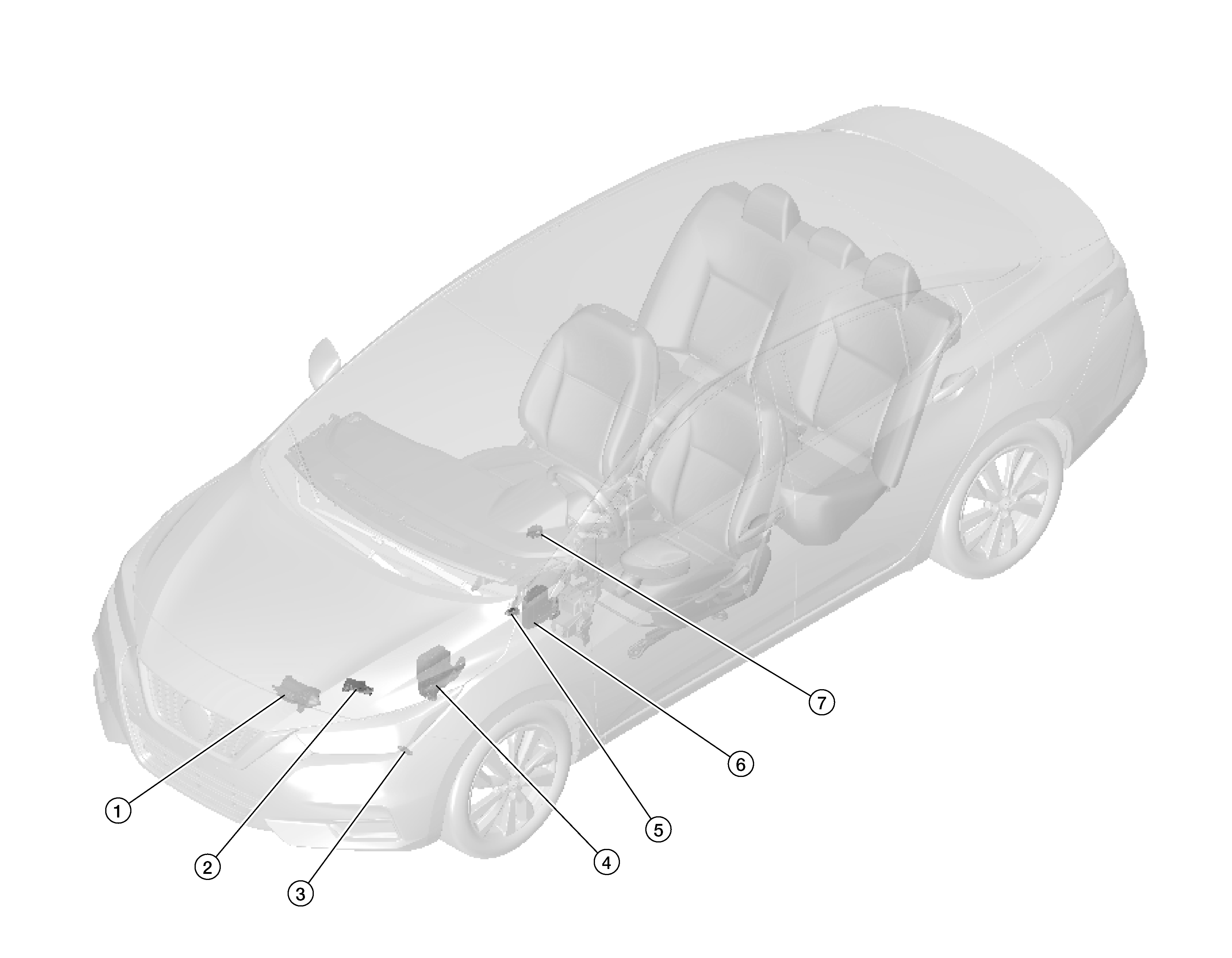

Component Location
|
No. |
Component |
Function |
|
1. |
Starter motor |
Refer to Starter Motor . |
|
2. |
Transmission range switch (with CVT) |
Supplies power to the starter cut relay (inside IPDM E/R) when the CVT shift selector is shifted into the P or N position. Refer to Component Location for detailed component location. |
|
3. |
Park/neutral position (PNP) switch (neutral switch) (with MT) |
Park/neutral position (PNP) switch (neutral switch) detects that the Transmission is in the neutral position, and transmits the signal to the BCM. |
|
4. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
CPU inside IPDM E/R operates the starter cut relay when the ignition switch is in the start position. Refer to Component Location for detailed component location. |
|
5. |
Clutch pedal position switch (with MT) |
Clutch pedal position switch detects that the clutch pedal is depressed, and transmits the signal to the BCM. |
|
6. |
BCM (Body Control Module) |
BCM controls the starter relay. Refer to Component Location for detailed component location. |
|
7. |
Ignition switch (without Intelligent Key) |
Supplies ignition switch status to the IPDM E/R. |
