Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to Battery Disconnect .
  2. Remove the instrument lower panel LH. Refer to Removal and Installation .

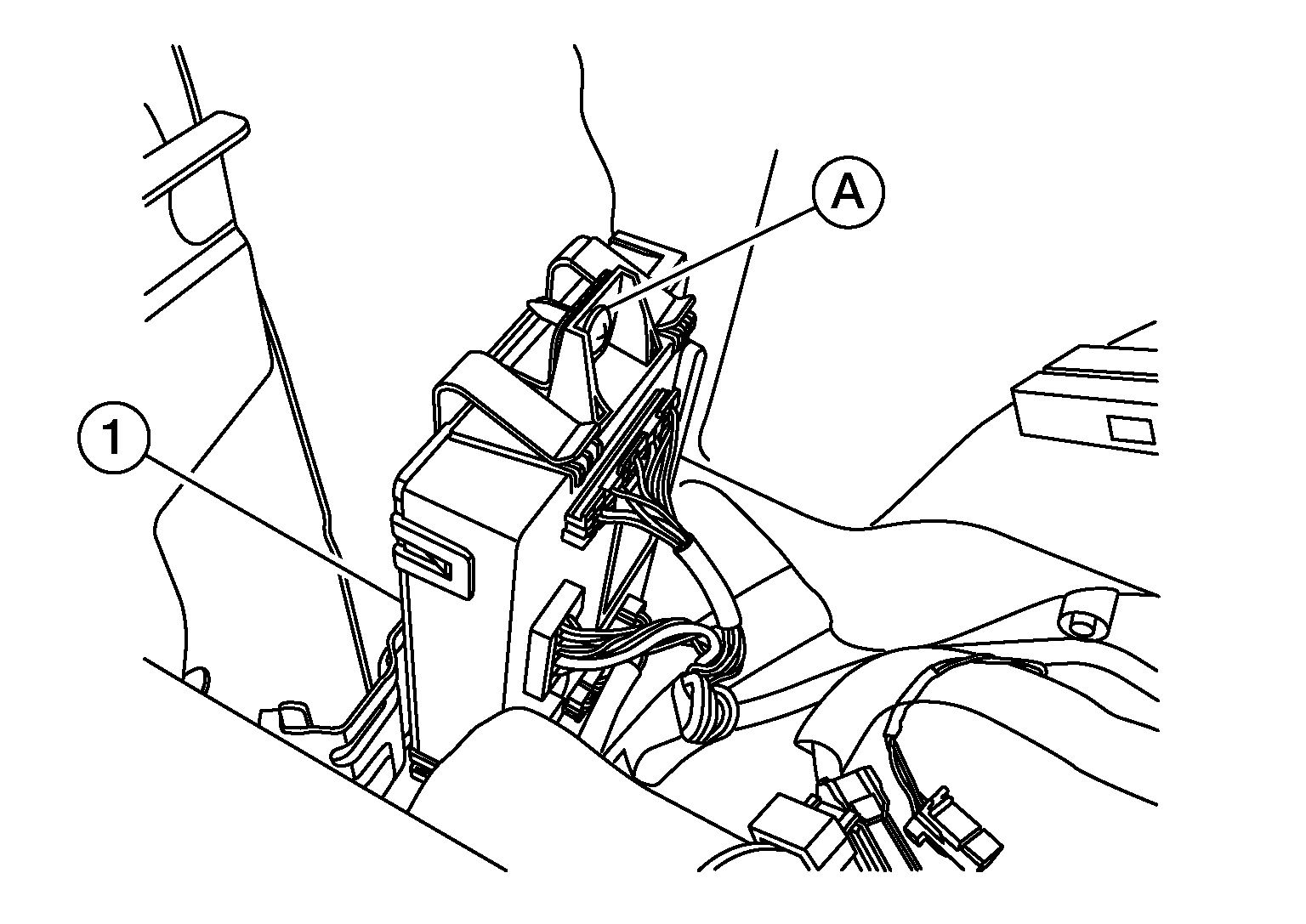

  3. Remove the screw (A) then pull the BCM (1) outward.
    GNSAWMIA1853Z-853Courtesy of NISSAN NORTH AMERICA, INC.

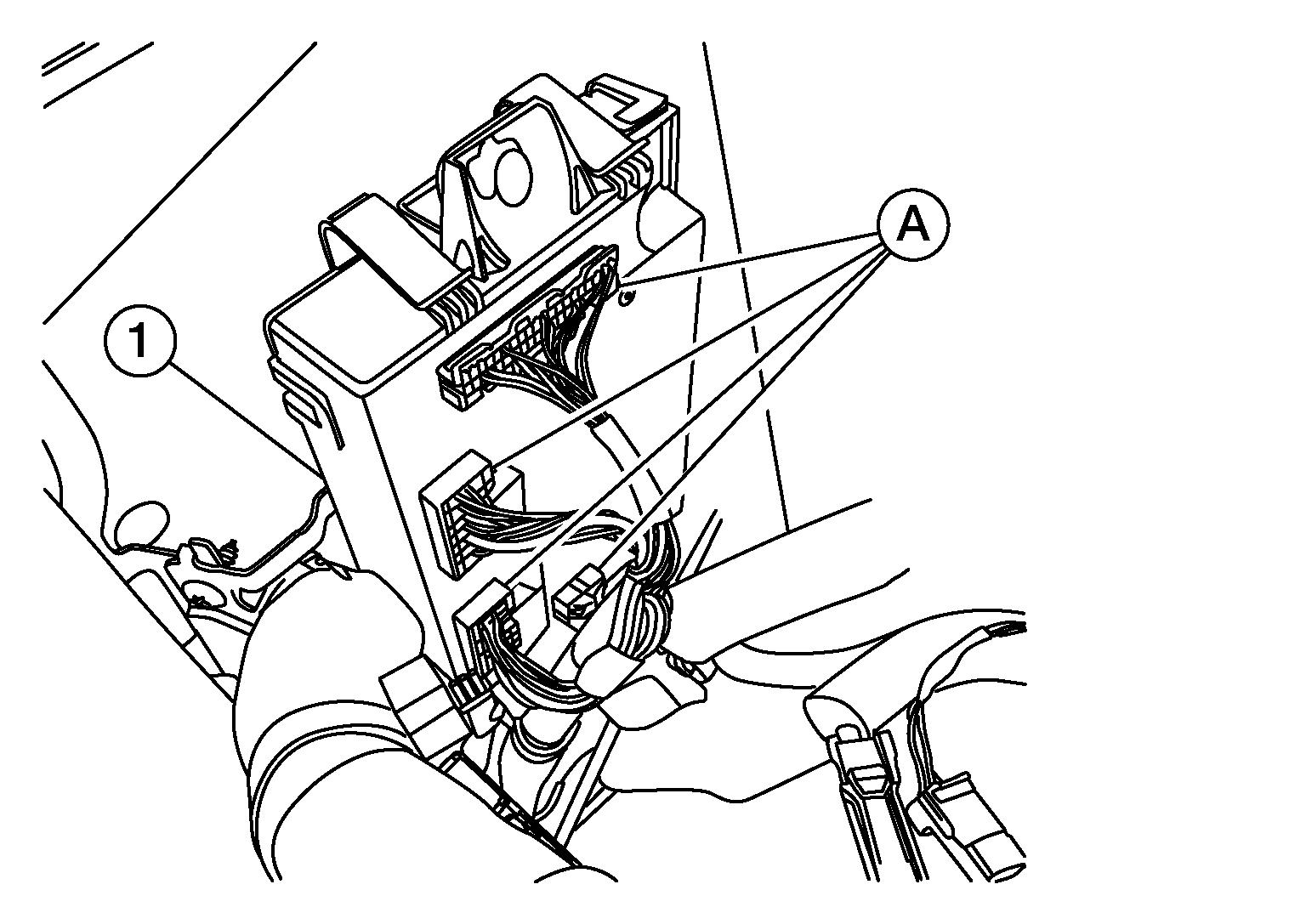

  4. Disconnect the harness connectors (A) from the BCM (1) and remove BCM.
    GNSAWMIA1854Z-854Courtesy of NISSAN NORTH AMERICA, INC.
