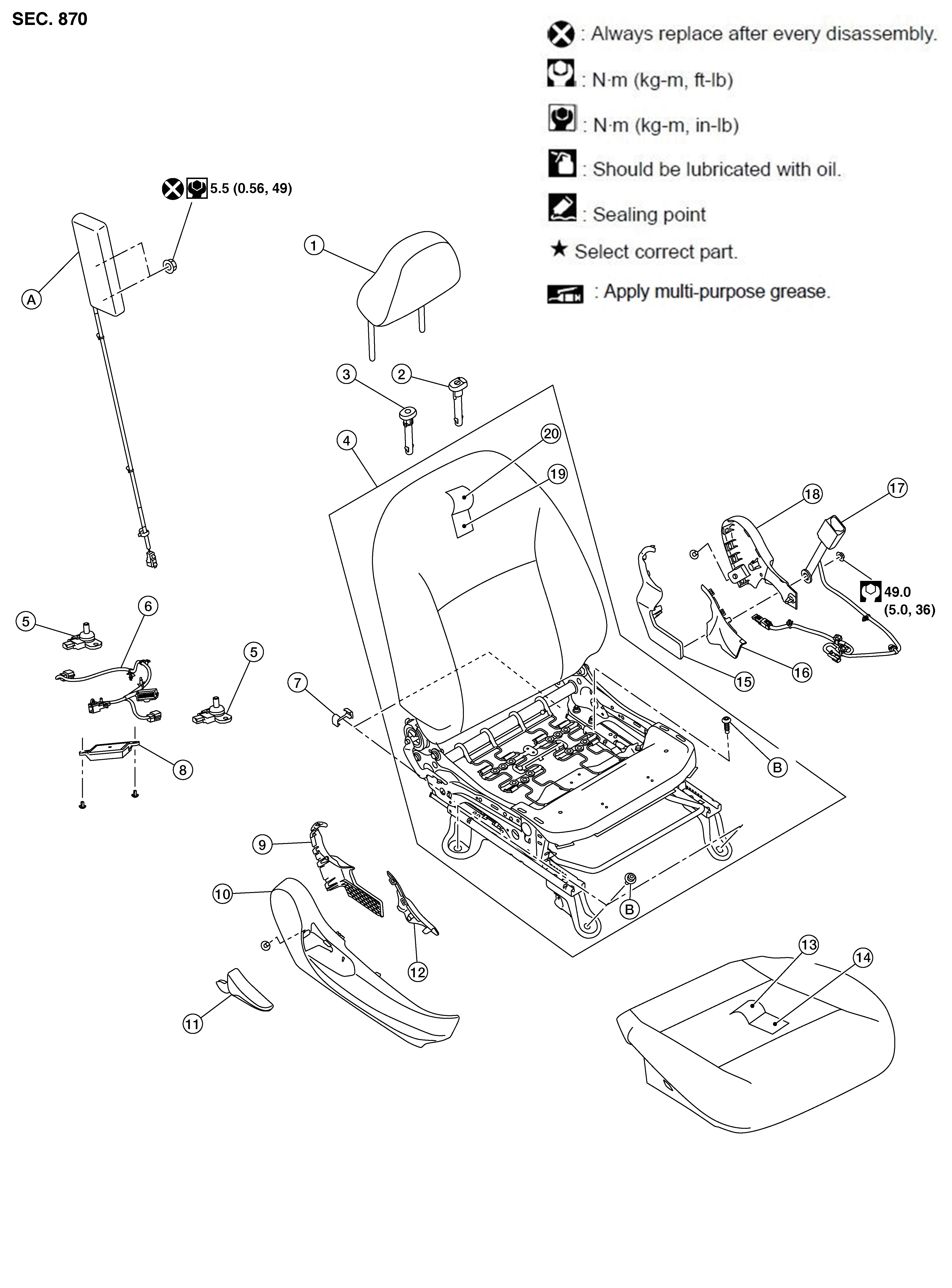

Exploded View

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seat assembly

5.

Occupant classification system sensor

6.

Occupant classification system harness

7.

Seat Slide finisher

8.

Occupant classification system control unit

9.

Seat cushion inner rear finisher (RH)

10.

Seat cushion outer finisher (RH)

11.

Reclining lever

12.

Seat cushion inner front finisher (RH)

13.

Seat cushion trim

14.

Seat cushion pad

15.

Seat cushion inner rear finisher (LH)

16.

Seat cushion inner front finisher (LH)

17.

Seat belt buckle

18.

Seat cushion outer finisher (LH)

19.

Seatback pad

20.

Seatback trim

A.

Side air bag module

B.

Refer to Removal and Installation .
