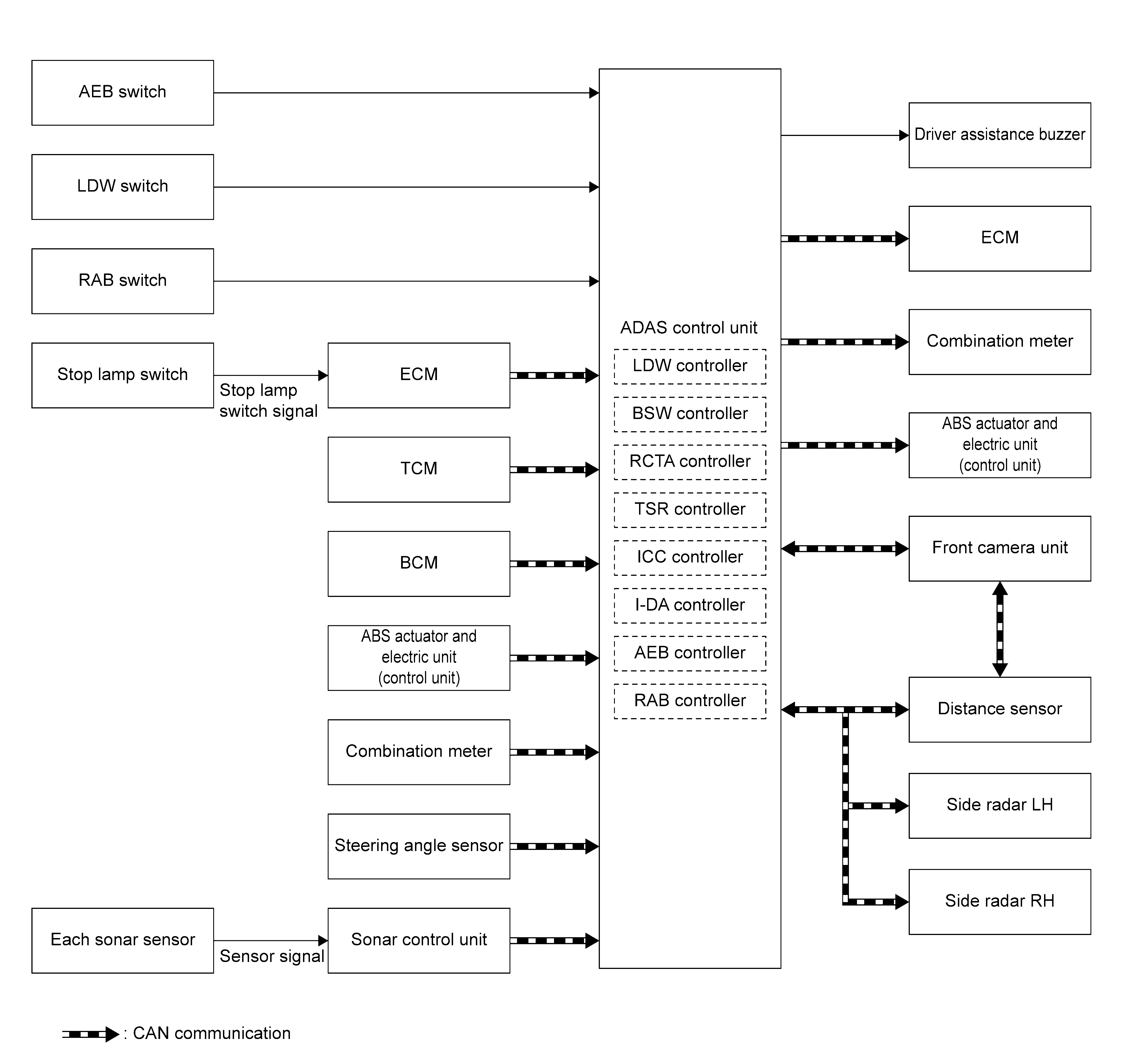

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Component	Function
ADAS control unit	Component Function
ECM	Component Function
TCM	Component Function
Steering angle sensor	Component Function
Combination meter	Component Function (7 inch information display) Component Function (3.5 inch information display)
ABS actuator and electric unit (control unit)	Component Function
BCM	System Description
Stop lamp switch	Component Function
Driver assistance buzzer	Component Function
LDW switch	Component Function
Distance sensor	Component Function
Side radar LH/RH	Component Function
Sonar control unit	Component Function
Each sonar sensor	Component Function

NOTE: TCM is applied to CVT models.
