Exploded View

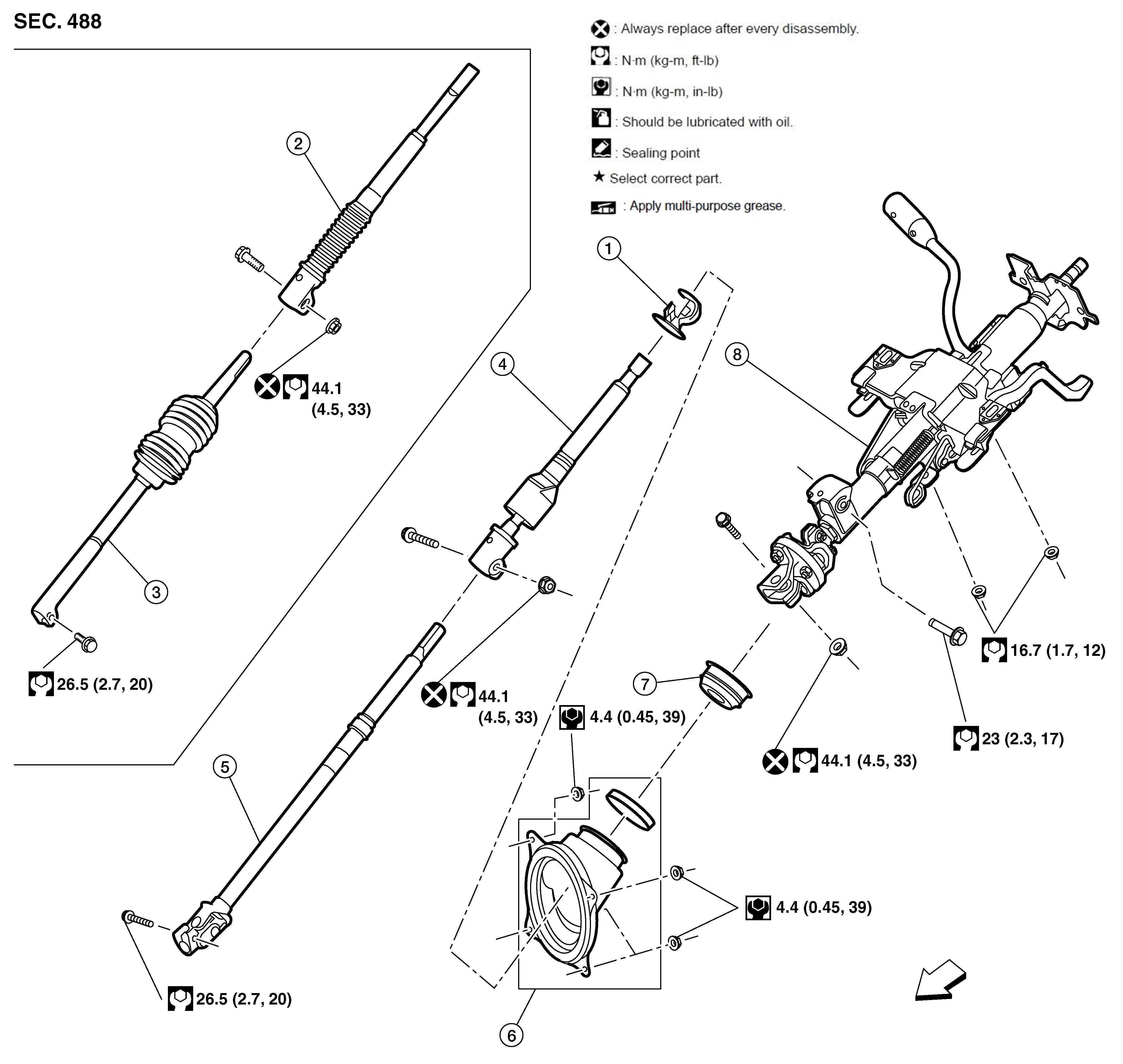

Fig 1: Steering Column Components With Torque Specifications (Mechanical)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column collar	2.	Intermediate shaft - (Non-XD models)	3.	Steering lower joint - (Non-XD Models)
4.	Intermediate shaft - (XD models)	5.	Steering lower joint - (XD Models)	6.	Hole cover and clamp
7.	Hole cover seal	8.	Steering column		Front

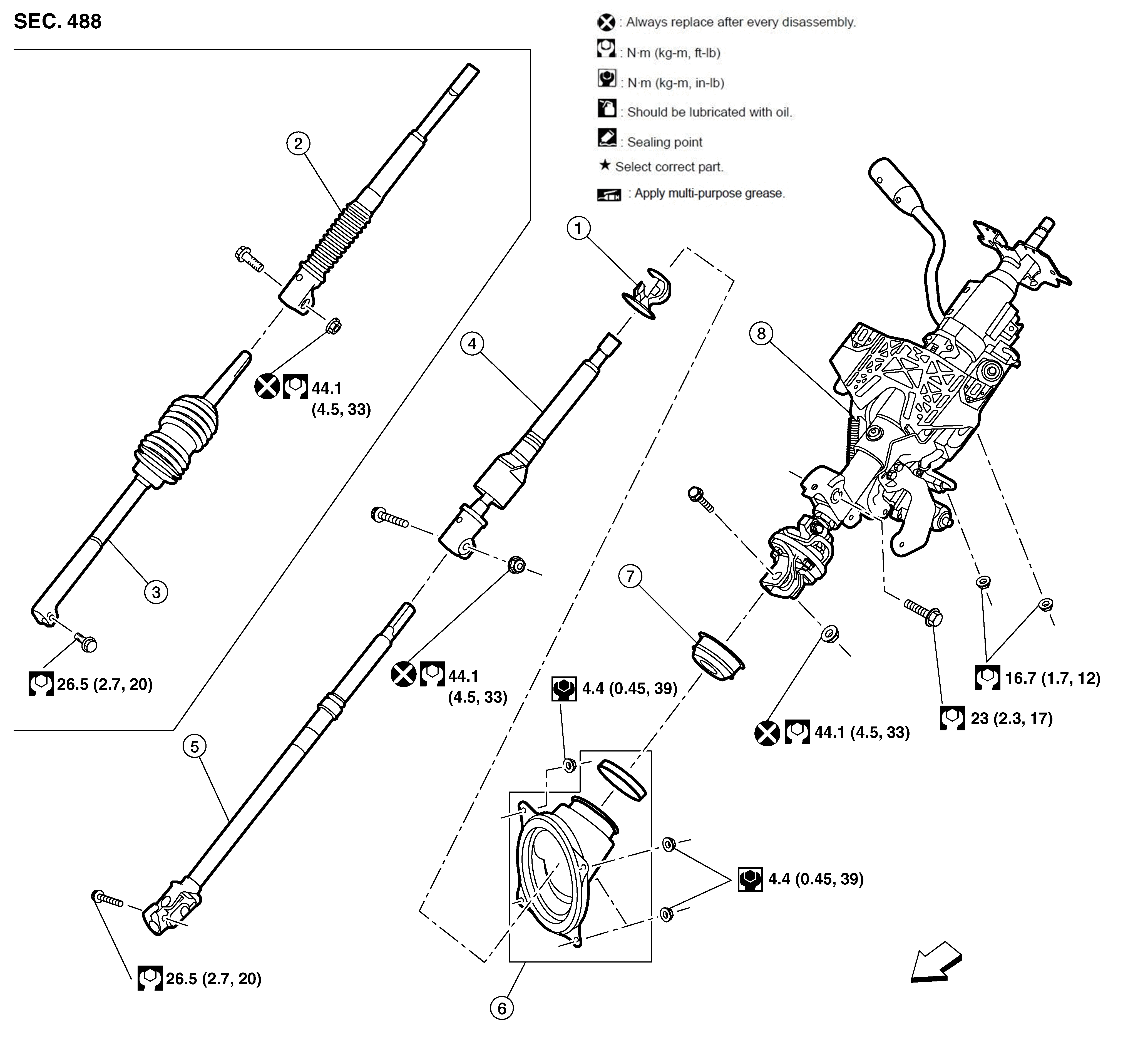

Fig 2: Steering Column Components With Torque Specifications (Electric)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column collar	2.	Intermediate shaft - Non-XD Models	3.	Steering lower joint - Non-XD Models
4.	Intermediate shaft - XD Models	5.	Steering lower joint - XD Models	6.	Hole cover and clamp
7.	Hole cover seal	8.	Steering column		Front
