Exploded View

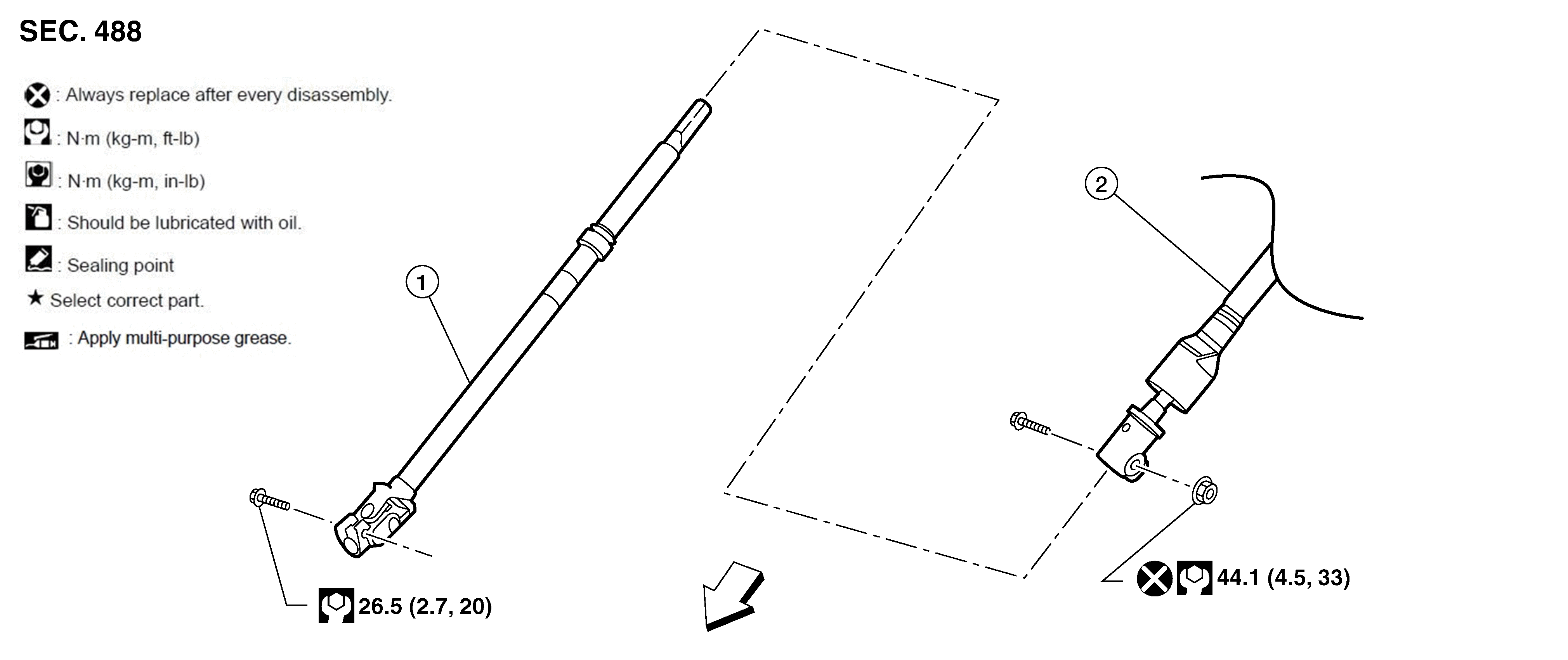

Fig 1: Lower Joint Components With Torque Specifications - XD Models
GNSAWGIA0408Z-408Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lower joint

2.

Intermediate shaft

SYMBOL

Front

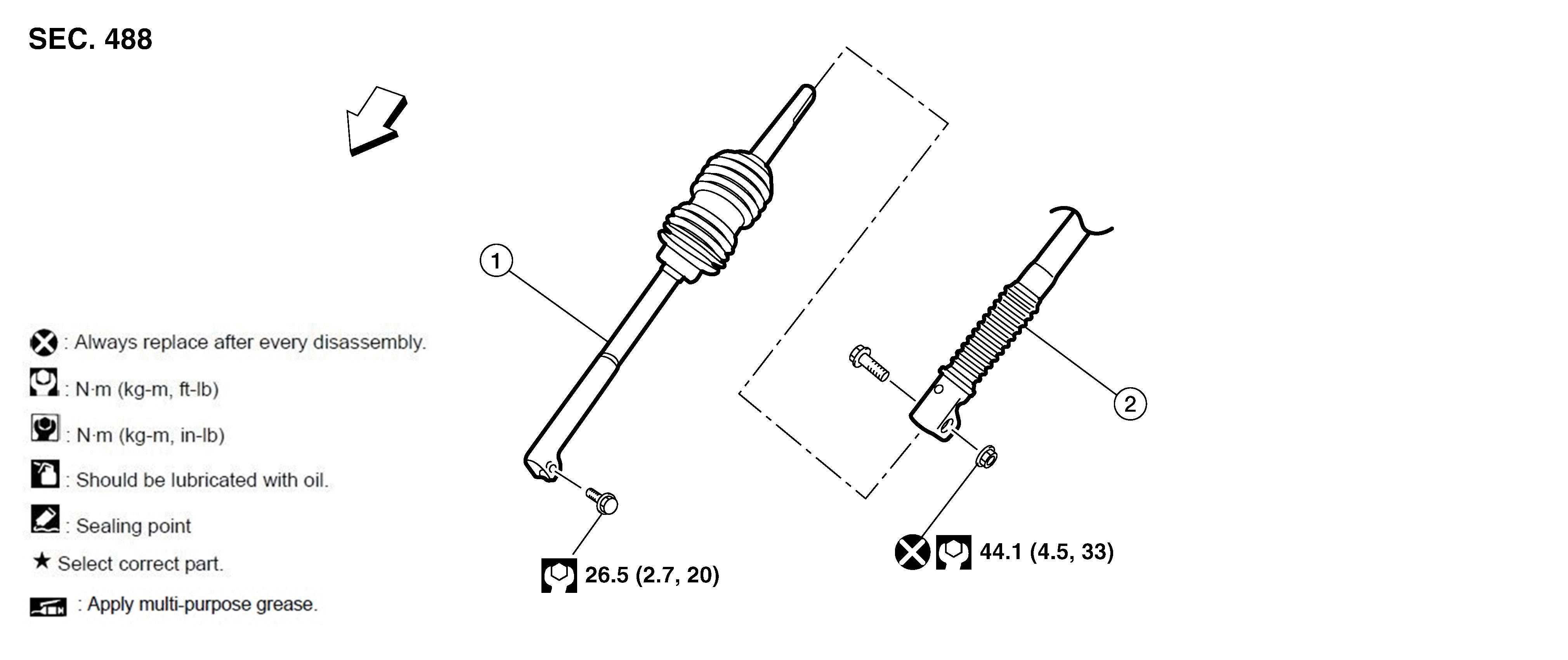

Fig 2: Lower Joint Components With Torque Specifications - Non-XD Models
GNSAWGIA0466Z-466Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lower joint

2.

Intermediate shaft

SYMBOL

Front
