Exploded View

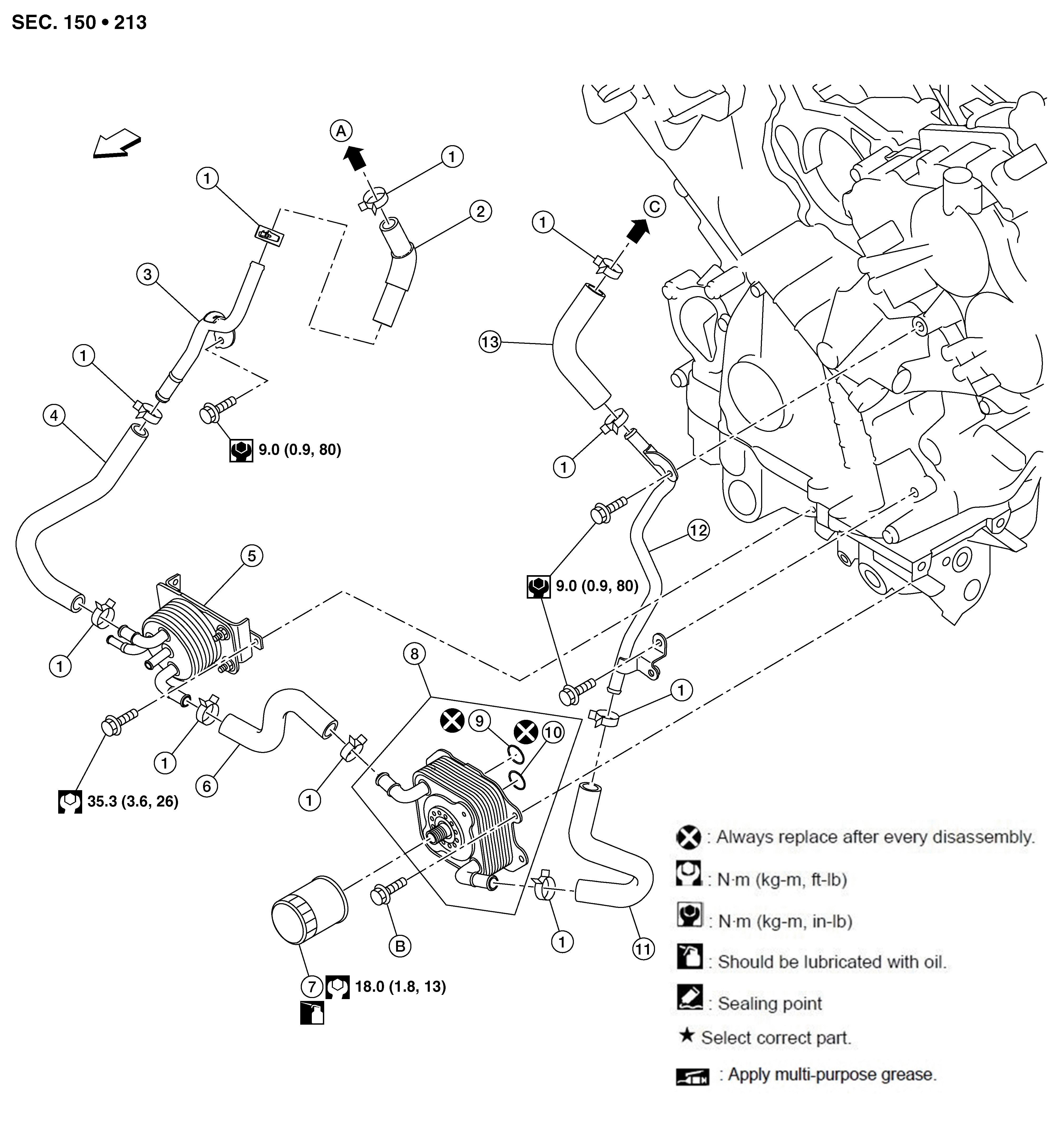

Fig 1: Oil Cooler Components With Torque Specifications - XD Models

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Water hose	3.	Water pipe
4.	Water hose	5.	A/T fluid warmer	6.	Water hose
7.	Oil filter	8.	Oil cooler	9.	O-ring
10.	O-ring	11.	Water hose	12.	Water pipe
13.	Water hose	A.	To multi-way control valve. Refer to Exploded View .	B.	Refer to INSTALLATION .
C.	To thermostat housing. Refer to Exploded View .		Front

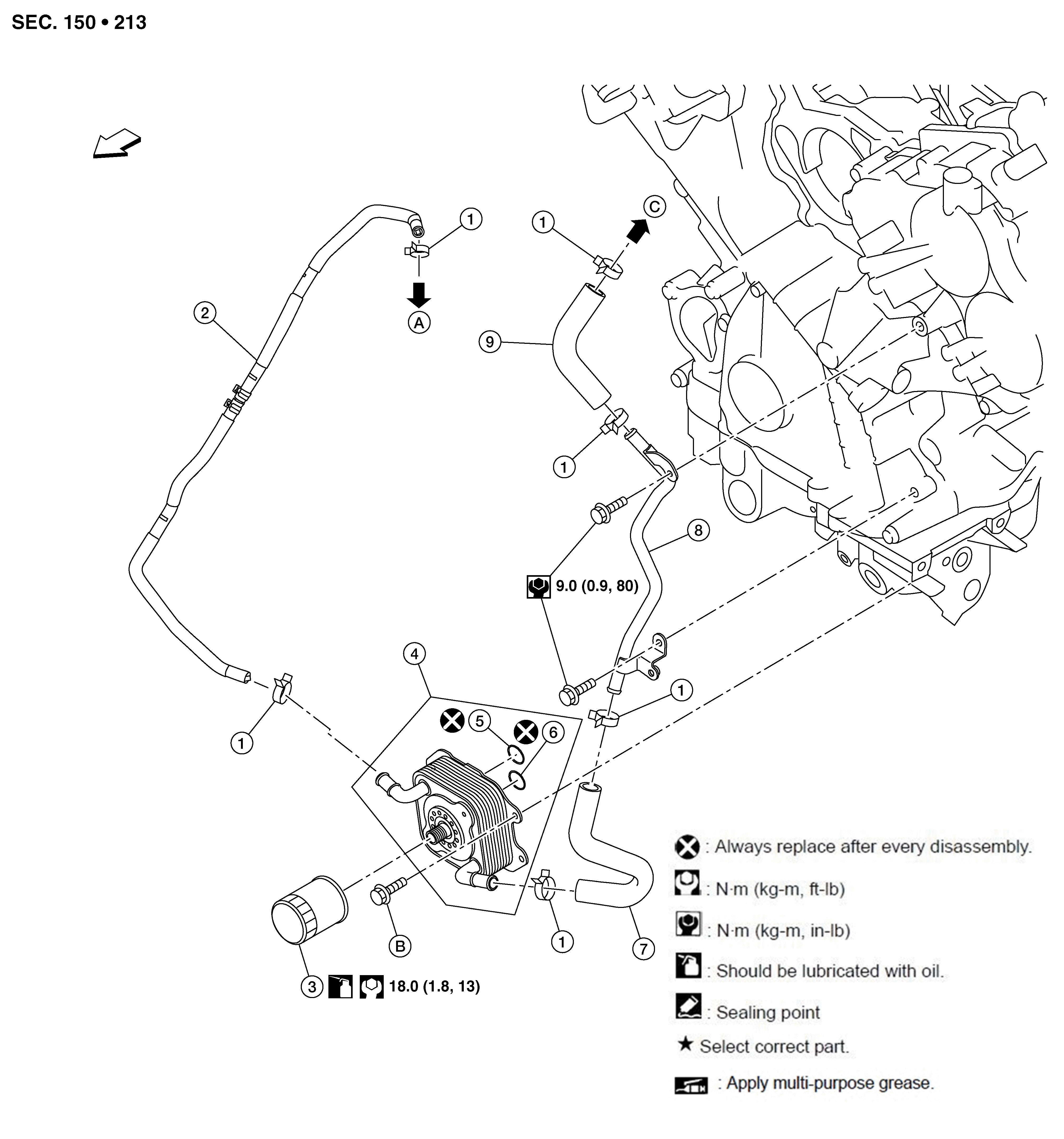

Fig 2: Oil Cooler Components With Torque Specifications - Non-XD Models

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Water hose	3.	Oil filter
4.	Oil cooler	5.	O-ring	6.	O-ring
7.	Water hose	8.	Water pipe	9.	Water hose
A.	To A/T fluid warmer. Refer to Exploded View .	B.	Refer to INSTALLATION .	C.	To thermostat housing. Refer to Exploded View .
	Front
