Removal and Installation
>>
Notes
Removal and Installation: Notes

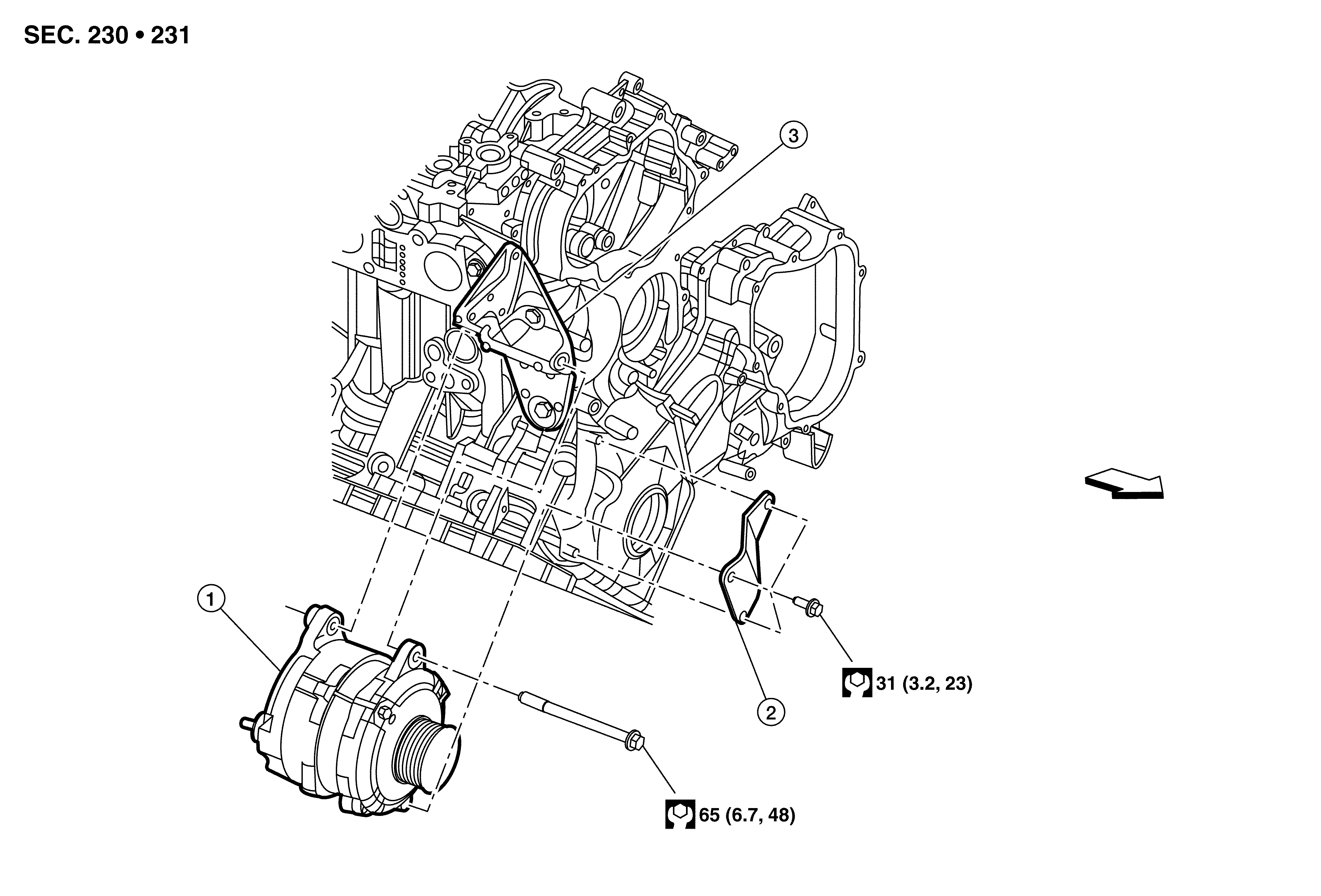

Fig 1: Generator Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Generator
2.
Generator front bracket
3.
Generator rear bracket
Front
Courtesy of NISSAN NORTH AMERICA, INC.
